Product Overview

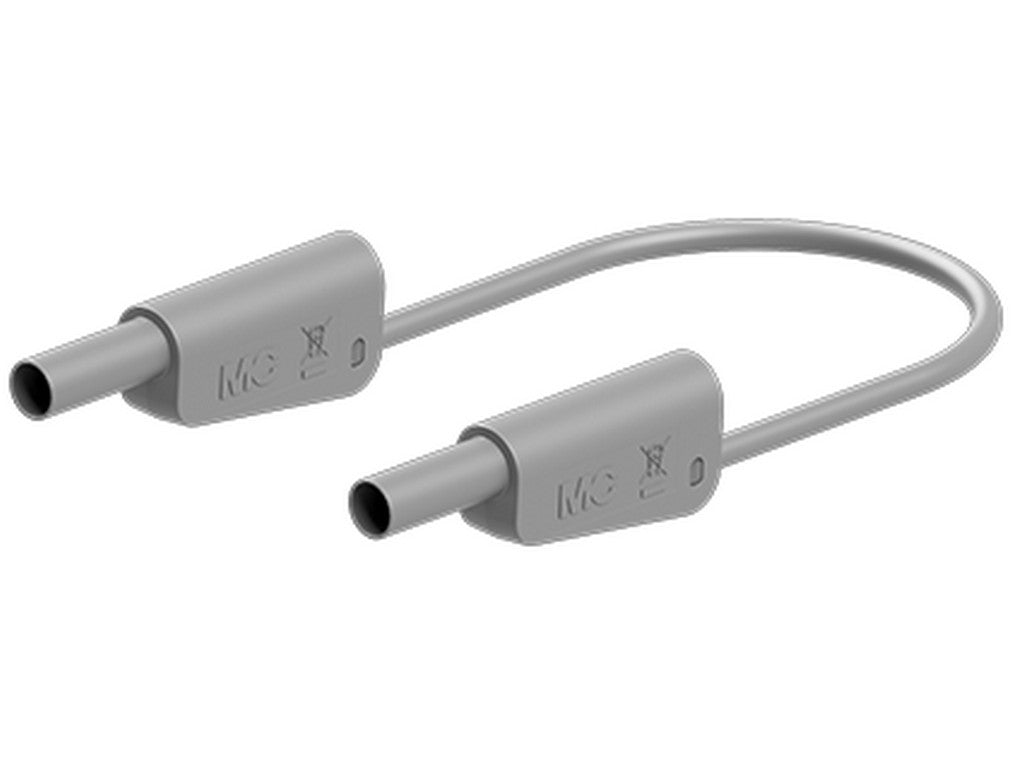

This test lead from STAUBLI, SLK-4N-F25, is a flexible measuring lead with stackable Ø 4 mm MULTILAM plugs and a rigid insulation sleeve at both ends. The SLK-4N-F25 is designed as a test lead with specified electrical limits and materials documented by the manufacturer.Design and Material
- Stackable MULTILAM plugs with a diameter of 4 mm.
- Electrical contact: base material CuZn with nickel surface treatment.
- Cable insulation in PVC.
- Conductor cross-section: 2.5 mm².
Safety and Approvals
- Rated values: 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A.
- Test accessory according to IEC EN 61010-031.
- Produced with UL and CE approvals as stated by the manufacturer.
Product Variants
- Available in several lengths: 25, 50, 75, 100, 150, and 200 cm.
- Item number: 66.2014-*
Documentation
For technical data and complete manufacturer information, please refer to the official datasheet.
See datasheet from the manufacturer
Note
All information in this description is taken from the manufacturer's documentation for the SLK-4N-F25. No additional technical data beyond what the manufacturer states has been added or assumed.
Specifications
- Product: SLK-4N-F25
- Item number: 66.2014-*
- Plug diameter: 4 mm
- Conductor cross-section: 2.5 mm²
- Insulation material: PVC
- Electrical contact - base material: CuZn
- Electrical contact - surface treatment: Ni (nickel)
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Lead lengths: 25; 50; 75; 100; 150; 200 cm
- Test accessory according to: IEC EN 61010-031
- Approvals: UL, CE
