Product Overview

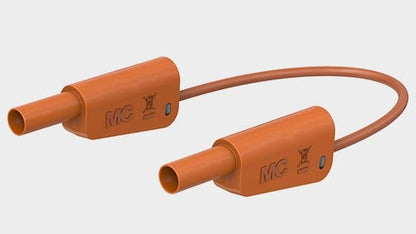

This test lead from Stäubli, SLK-4N-F25, is a flexible test lead designed with Ø4 mm MULTILAM plugs on both ends and a rigid insulating sleeve. The SLK-4N-F25 has a conductor cross-section of 2.5 mm² and PVC insulation. The product is available in several cable lengths up to 200 cm.Technical Details
- Plug diameter: 4 mm MULTILAM
- Conductor: 2.5 mm²
- Insulation: PVC
- Contact plating: Ni (nickel)
- Contact base material: CuZn
- Short name/item number: SLK-4N-F25 (Stäubli item number 66.2014-*)
Documentation
The official product datasheet contains detailed technical data and specifies approvals. See datasheet from manufacturer
Typical Applications
The product is used as test accessory in accordance with the requirements specified in the manufacturer's datasheet (Test accessory acc. to IEC EN 61010-031).
Specifications
- Product name: SLK-4N-F25
- Item number: 66.2014-*
- Plug diameter: 4 mm
- Rated values: 1000 V (CAT II), 600 V (CAT III)
- Current capacity: 32 A
- Contact surface: Ni (nickel plating)
- Contact base material: CuZn
- Cable lengths: 25, 50, 75, 100, 150, 200 cm
- Cable insulation: PVC
- Conductor cross-section: 2.5 mm²
- Test accessory according to: IEC EN 61010-031
- Approvals stated in datasheet: UL, CE
Source: Stäubli product datasheet (02.2024).
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
