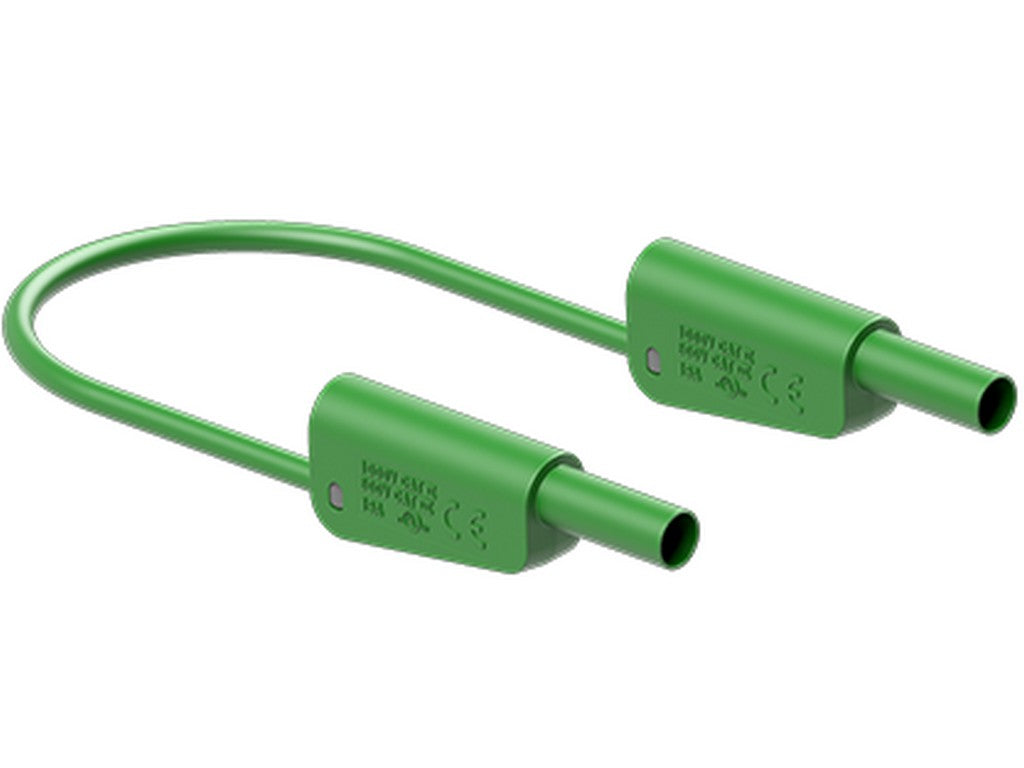

STAUBLI SLK-4N-F25
The SLK-4N-F25 is a flexible test lead for measurement and testing situations involving 4 mm connections. Both ends feature stackable Ø 4 mm MULTILAM spring-loaded plugs with a rigid insulating sleeve, allowing the lead to be integrated into setups where multiple connections need to be consolidated in a clear manner.
It is designed as professional accessory for testing and measurement in electrical engineering and electronics production, where a safe and robust lead with high flexibility is required. The PVC insulation and 2.5 mm² conductor cross-section provide a cable built for general use in demanding work situations, and the electrical ratings are 1000 V, CAT II, 32 A as well as 600 V, CAT III, 32 A.
Contact parts are made of CuZn with a nickel surface, and the cable type is specified according to IEC EN 61010-031. It also has UL and CE approvals. Therefore, it is an obvious choice when a measuring cable is needed that fits into professional test equipment with a 4 mm system.
Typical applications
Used for testing and measurement where flexible 4 mm test leads with stackable plugs on both ends are required.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20025
- Type: SLK-4N-F25 test lead
- Connection: stackable Ø 4 mm MULTILAM spring-loaded plugs on both ends
- Insulation: rigid insulating sleeve on both ends
- Wire insulation: PVC
- Conductor cross-section: 2.5 mm²
- Rated data: 1000 V, CAT II, 32 A
- Rated data: 600 V, CAT III, 32 A
- Contact material: CuZn
- Contact surface: Ni
- Standard: IEC EN 61010-031
- Approvals: UL, CE
- Available lengths: 25, 50, 75, 100, 150 and 200 cm
See datasheet from the manufacturer
