STAUBLI 66.2014-20020

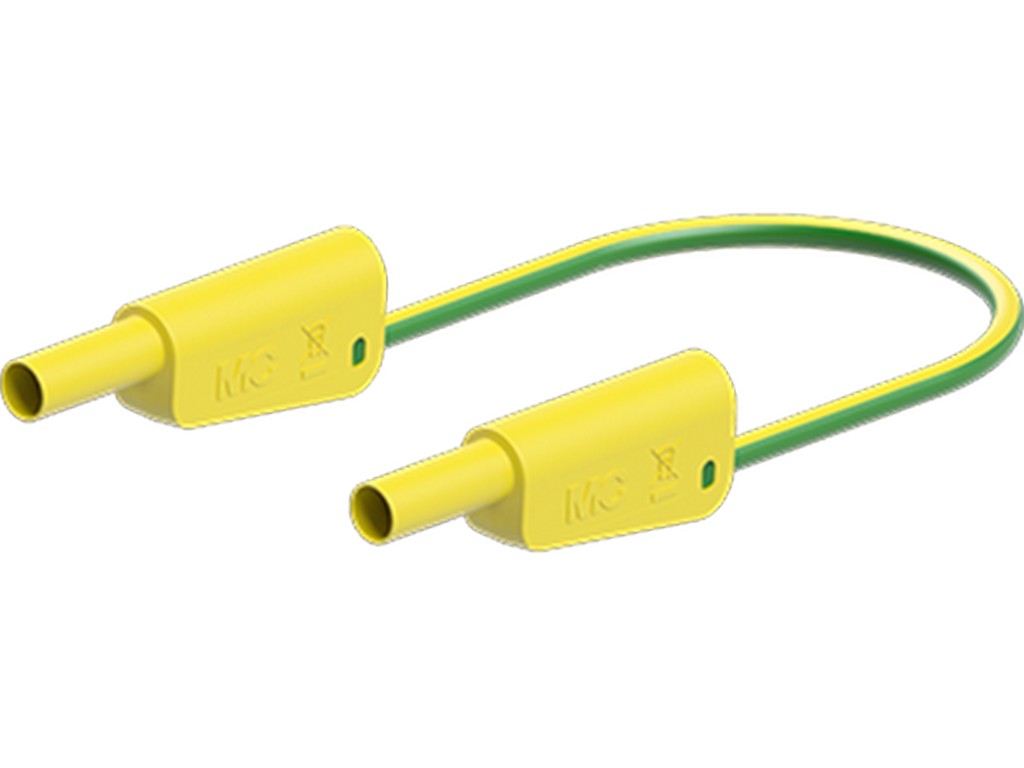

The STAUBLI 66.2014-20020 is a highly flexible test lead for measurement and testing tasks involving 4 mm connections. Both ends are equipped with stackable Ø 4 mm MULTILAM plugs with a rigid insulating collar, making the lead easy to integrate into a test setup without taking up unnecessary space.
In practice, it is used to safely and stably connect measuring instruments, test sets, or other test equipment. It is designed for professional use, where both flexibility and clear electrical limits are important. The lead is rated for 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A, and it is specified according to IEC EN 61010-031.
The lead itself has PVC insulation and a conductor cross-section of 2.5 mm². The contact material is CuZn with a nickel surface, which is a common and well-documented construction in test accessories. The series is available in several lengths, and this variant is in the 200 cm class in the order number series 66.2014-*. This makes it suitable when a little more reach is needed between the measurement point and the instrument.
Furthermore, it has UL and CE approvals.
Typical applications
- Connection between measuring instrument and test setup
- Electrical measurement tasks in industry and electrical engineering
- Test environments using 4 mm stackable plugs
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20020
- Product type: Highly flexible test lead
- Plug type: Stackable Ø 4 mm MULTILAM plugs
- Insulation at both ends: Rigid insulating collar
- Rated voltage / nominal data: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Conductor insulation: PVC
- Conductor cross-section: 2.5 mm²
- Contact base material: CuZn
- Contact surface: Nickel
- Standard lengths in the series: 25, 50, 75, 100, 150 and 200 cm
- Standard: IEC EN 61010-031
- Approvals: UL, CE
