Product Overview

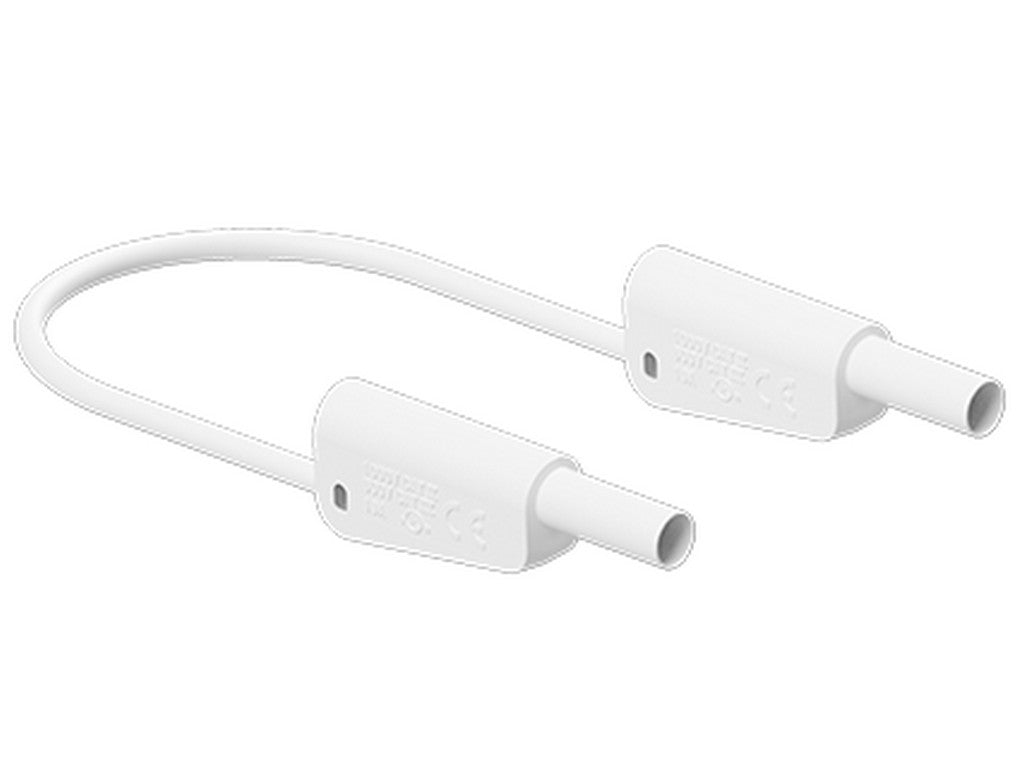

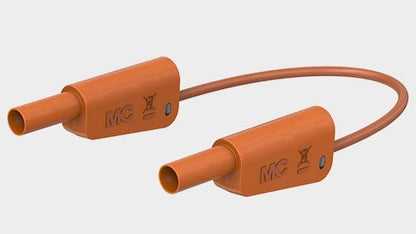

This SLK-4N-F25 test lead from STAUBLI is a highly flexible test accessory with stackable Ø 4 mm MULTILAM connectors. The SLK-4N-F25 comes with fixed insulating sleeves on both ends and is specified as a test accessory according to IEC EN 61010-031.Design and Materials
- Stackable Ø 4 mm MULTILAM plugs with fixed insulating sleeve on both ends.
- Electrical contact area with nickel plating (Ni) and contact base material in CuZn.
- Cable insulation in PVC and conductor cross-section of 2.5 mm².
Documentation
The manufacturer's technical information and specifications are documented in the official datasheet.
See datasheet from the manufacturer
Typical Applications
- Used as a test lead/test accessory for connection to measurement or test equipment, as specified in the product's catalog text and datasheet (IEC EN 61010-031).
- Suitable for applications where stackable Ø 4 mm MULTILAM plugs are required, as per the manufacturer's description.
Specifications
- Product name: SLK-4N-F25 (item number 66.2014-*)
- Plug system diameter: 4 mm
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Electrical contact: surface treatment Ni; base material CuZn
- Cable insulation: PVC
- Conductor cross-section: 2.5 mm²
- Available cable lengths: 25, 50, 75, 100, 150, 200 cm
- Specified as test accessory according to: IEC EN 61010-031
- Approvals: UL, CE
