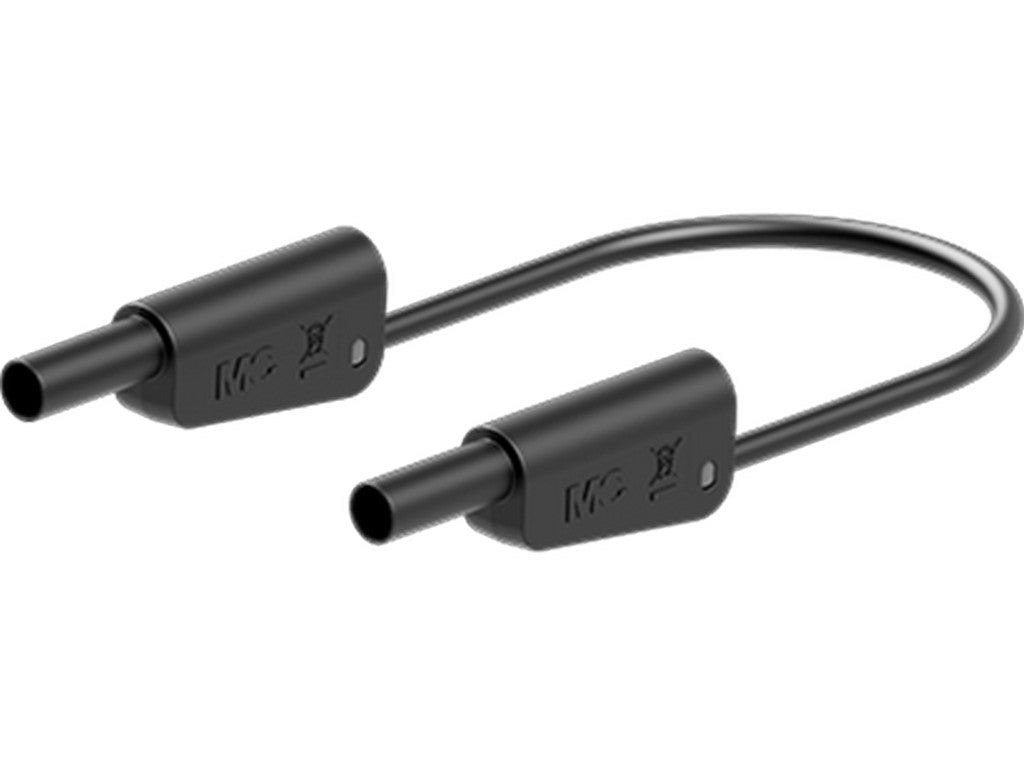

STAUBLI SLK-4N-F25 test lead
The SLK-4N-F25 is a highly flexible test lead set for measurement and testing tasks where a secure and stable connection is needed for electrical and electronic work. Both ends are equipped with stackable Ø 4 mm MULTILAM plugs, and each end has a fixed insulating sleeve, making handling more controlled in practice.
The lead is designed for professional use, where measuring equipment, test points, and setups often need to be connected quickly and precisely. The fine balance between flexibility and robust design makes it suitable when the lead needs to be moved frequently without becoming cumbersome to work with.
The electrical data shows that the lead is rated for 1000 V CAT II / 32 A and 600 V CAT III / 32 A. The insulation is made of PVC, and the conductor has a cross-section of 2.5 mm². This means that this test lead is intended for general professional measurement tasks where both current capacity and touch-safe design are relevant.
The contact material is CuZn with nickel plating. The length is available in several variants, and this version is 25 cm. The product is specified with UL and CE approvals.
Typical applications
- Connection for testing and measurement in electro-technical setups
- Use with measuring equipment featuring a Ø 4 mm plug system
- Situations where a flexible lead with stackable plugs is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-20021
- Product: SLK-4N-F25 test lead
- Plug system: Ø 4 mm
- Plug type: stackable MULTILAM plugs
- Insulation at both ends: rigid insulating sleeve
- Rated voltage/current: 1000 V CAT II / 32 A
- Rated voltage/current: 600 V CAT III / 32 A
- Cable insulation: PVC
- Conductor cross-section: 2.5 mm²
- Contact material: CuZn
- Surface treatment: nickel
- Lead length: 25 cm
- Approvals: UL, CE
