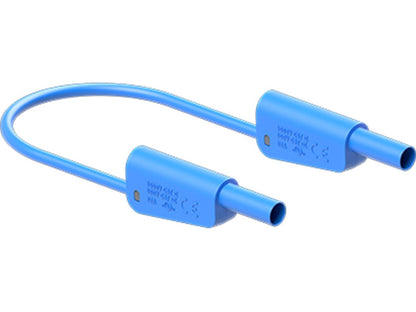

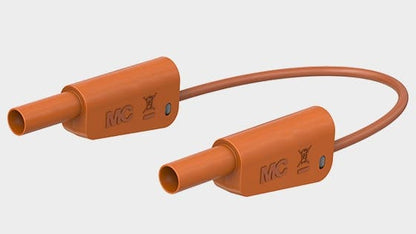

STAUBLI SLK-4N-F25
The SLK-4N-F25 is a highly flexible test lead for measurement and testing tasks where equipment with 4mm connectors needs to be connected. Both ends feature stackable Ø 4mm MULTILAM connectors with rigid insulation sleeves, ensuring the connection can be used safely in a professional test setup.
The cable is designed for applications requiring both voltage and current. It is rated for 1000 V in CAT II at 32 A and 600 V in CAT III at 32 A. This makes it relevant in environments where test leads need to be robust while maintaining a clear safety distance around the connections.
The lead has PVC insulation and a conductor cross-section of 2.5 mm². The contacts are made of CuZn with a nickel surface treatment. In practice, this means you get a test lead designed for repeated use in test benches, service, and inspection work, where connections are frequently moved between instruments, test specimens, and accessories.
The SLK-4N-F25 complies with IEC EN 61010-031 and is UL and CE approved. It is available in several cable lengths, with the datasheet listing 025, 050, 075, 100, 150, and 200 cm. If you want to see the manufacturer's documentation, you can use the link below.
See datasheet from the manufacturer
Typical applications
- Test and measurement setups with 4mm connections
- Service and troubleshooting in electrical installations and equipment
- Professional laboratory and workshop environments
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-05023
- Model: SLK-4N-F25
- 4 mm MULTILAM connector, stackable
- Rigid insulation sleeve at both ends
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Cable insulation: PVC
- Conductor cross-section: 2.5 mm²
- Contact material: CuZn
- Surface treatment: Ni
- Cable lengths according to datasheet: 025, 050, 075, 100, 150, and 200 cm
- IEC EN 61010-031
- UL
- CE
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
