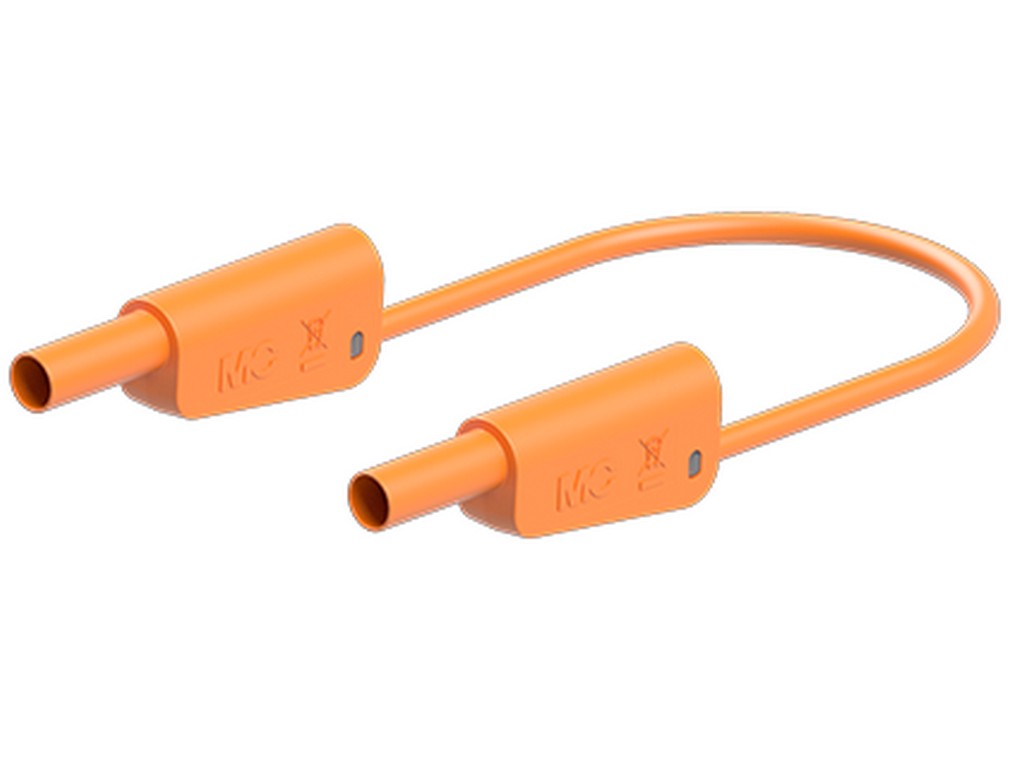

SLK-4N-F25 – Test lead from STAUBLI
The SLK-4N-F25 is a test lead (part of the Stäubli SLK-4 test lead series) designed as a test accessory in accordance with the manufacturer's datasheet. The product comes with stackable Ø 4 mm MULTILAM plugs with rigid insulating sleeves at both ends and is specified for measured electrical values according to the manufacturer.
Design and Materials
- Plug system diameter: 4 mm (MULTILAM)
- Cable insulation: PVC
- Cable cross-section: 2.5 mm²
- Electrical contact: surface treatment Ni, base material CuZn
- Rigid insulating sleeves on both ends
Ratings and Approvals
- Rated values: 1000 V (CAT II), 600 V (CAT III)
- Rated current: 32 A
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE (stated by manufacturer)
Lengths
- Available lead lengths: 025 cm, 050 cm, 075 cm, 100 cm, 150 cm and 200 cm (stated in manufacturer's datasheet)
Documentation
For detailed technical data and manufacturer's specifications, please refer to the manufacturer's datasheet:
Typical Applications
The SLK-4N-F25 is specified as a test accessory/test lead in accordance with IEC EN 61010-031 and is used as a lead with stackable 4 mm MULTILAM plugs for measurement and test connections, as indicated by the manufacturer.
Specifications
- Product name: SLK-4N-F25 (item no. 66.2014-*)
- Plug diameter: 4 mm MULTILAM
- Cable insulation: PVC
- Cable cross-section: 2.5 mm²
- Rated values: 1000 V (CAT II) / 600 V (CAT III)
- Rated current: 32 A
- Lengths: 025; 050; 075; 100; 150; 200 cm
- Test accessory: IEC EN 61010-031
- Electrical contact: Ni surface; base material CuZn
- Approvals: UL, CE
Source: Stäubli product datasheet (link under Documentation)
