STAUBLI 66.2013-10023

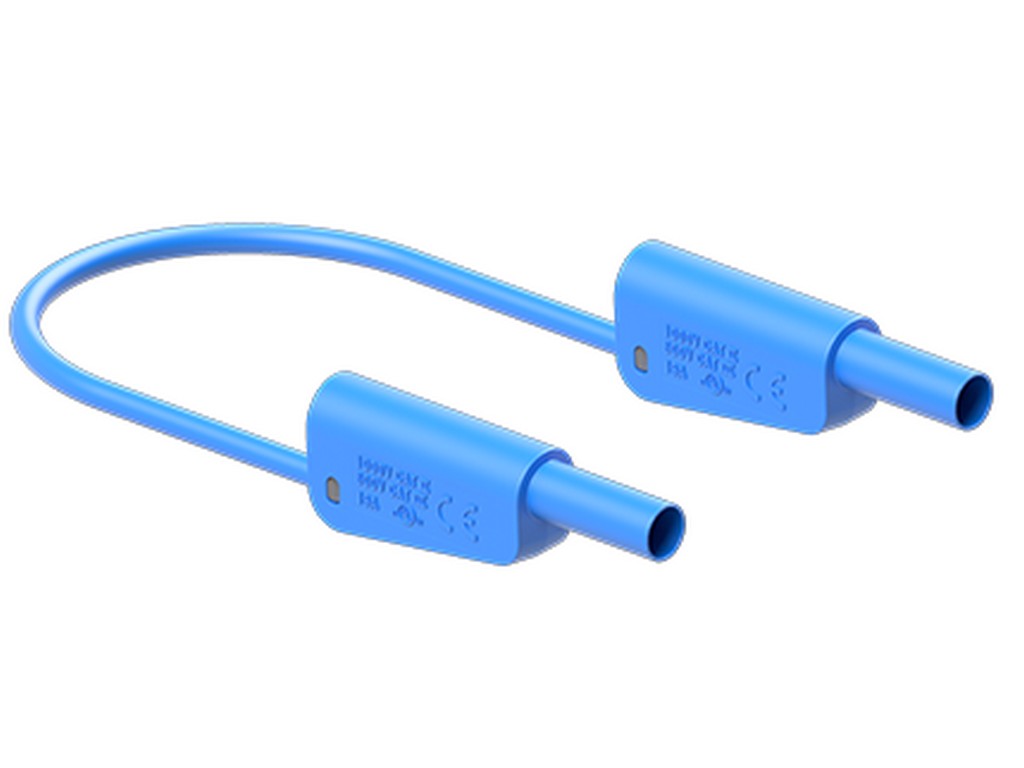

The STAUBLI 66.2013-10023 is a highly flexible test lead with Ø 4 mm MULTILAM plugs at both ends. It is used as part of measurement setups to create a safe and stable electrical connection between test equipment and samples or components.
Both ends feature a rigid insulating sleeve, and the plugs are stackable, allowing them to be connected in setups where multiple connections are required at the same point. The cable is made with silicone insulation, which is practical for work where the lead needs to move freely and withstand repeated handling.
The lead is rated for 1000 V in CAT II and 600 V in CAT III, and it is specified for 19 A. This makes it relevant for professional test environments where measurement leads must match both the voltage and current of the specific task. It has a conductor cross-section of 1.0 mm², and the contact surface is gold-plated, while the contact base material is CuZn.
Several lengths of the lead are available, and this variant belongs to the SLK-4A-S10 series, which Stäubli specifies as test accessories according to IEC EN 61010-031. The product also has UL and CE approvals.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2013-10023
- Type: SLK-4A-S10
- Plug system: Ø 4 mm MULTILAM plug
- Stackable plugs
- Rigid insulating sleeve at both ends
- Voltage rating: 1000 V CAT II / 600 V CAT III
- Current rating: 19 A
- Cable insulation: SIL
- Conductor cross-section: 1.0 mm²
- Contact surface: Au
- Contact material: CuZn
- Available lengths: 025, 050, 075, 100, 150 and 200 cm
- Test accessory acc. to IEC EN 61010-031
- Approvals: UL, CE
- See datasheet from the manufacturer
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
