Stäubli 32.0014P0001-UR

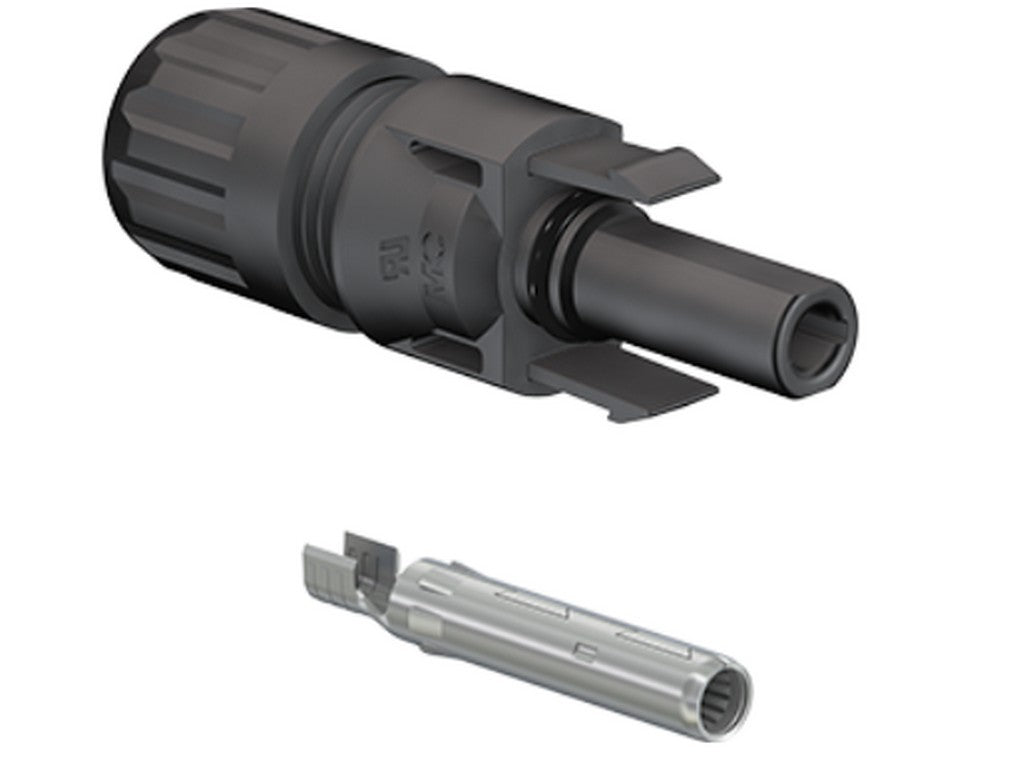

This is an MC4 crimp contact from Stäubli for solar panel installations. It is used in the original MC4 series and is the type that is terminated on the cable end, so that the wire can be securely connected to another MC4 component. In practice, it is a spare part and assembly component for professional PV systems where standardized plug connections are used.
The contact's opening is designed for a PV conductor with an outer cable diameter of 5.0–6.0 mm, and the crimp opening is 5.8 mm. For a 4.0 mm² conductor, it is rated for IEC 62852, DC 1100 V and 39 A. These figures indicate which cable type and electrical level it is suitable for.
There are also some properties that are relevant in daily operation: the insulation material is PC/PA, the flame class is UL94 V-0, and the contact is rated for up to 100 total connections. In the catalog, it is also mentioned with TÜV Rheinland and UL approvals, which is essential when components are to be included in documented systems.
If you want to purchase it as a genuine product, it is not just a loose contact, but a part that must be correctly matched with the cable, crimping tool, and the corresponding MC4 counterpart.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 32.0014P0001-UR
- Type: PV-KBT4/6I-UR
- Outer cable diameter: 5.0–6.0 mm
- Crimp opening width: 5.8 mm
- Conductor size: 4.0 mm²
- IEC 62852: DC 1100 V, 39 A
- Approvals in the MC4 family: TÜV Rheinland and UL
- UL-file number: E343181
- Insulation material: PC/PA
- Flame class: UL94 V-0
- Max. number of connections: 100
- Salt mist test: severity 6
