STAUBLI 32.0394

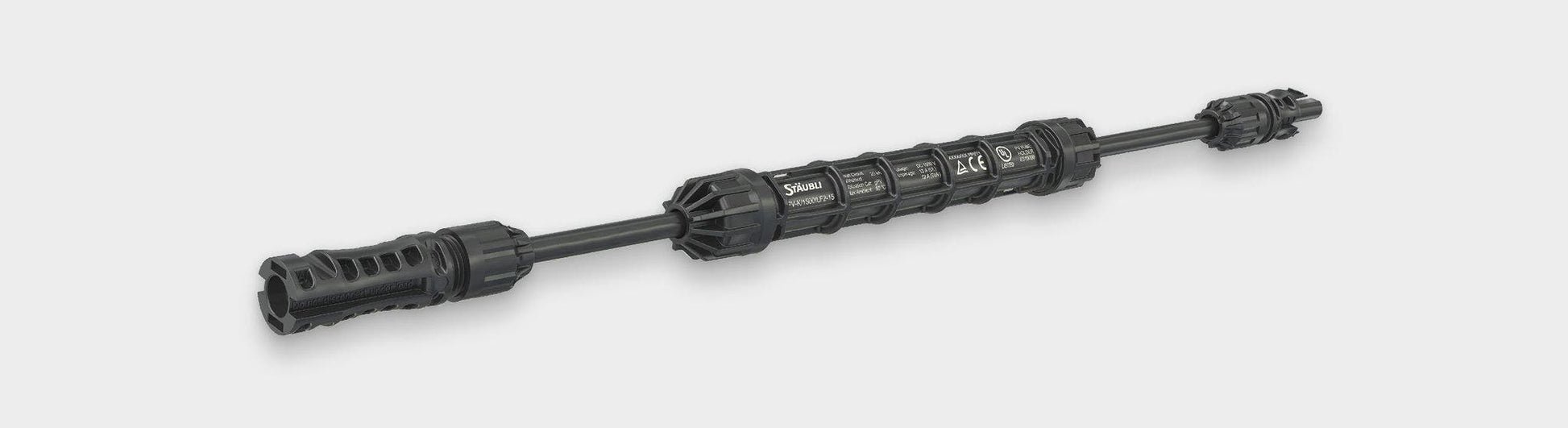

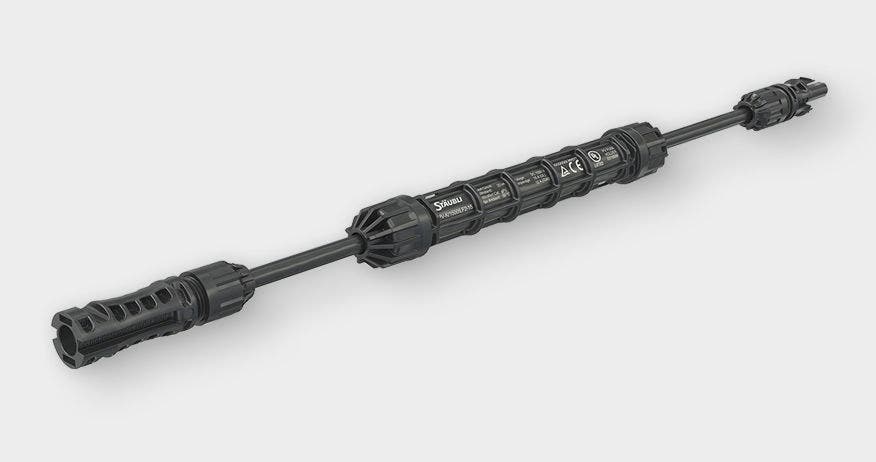

STAUBLI 32.0394 is an MC4‑Evo 2 Y-splitter with an integrated fuse for solar panel systems. It is used when one DC connection needs to be split into two outputs, while also having a fuse integrated into the connection itself. This provides both branching and fusing in one complete solution.
It is a complete cable assembly with an MC4‑Evo 2 connector system and is designed for DC 1500 V. In this variant, it is rated with a nominal current of 30 A, a cable cross-section of 6 mm², and a cable length of 84 cm. It has one input with 1 plug and two outputs with sockets, making it suitable for setups where power needs to be connected or distributed in a PV string.
For many installers, the advantage is precisely that branching and fusing are in the same component. This results in a clearer installation and fewer individual parts in the setup. At the same time, it is TÜV Rheinland certified according to 2PfG 2380 and 2PfG 1913, and when connected with mating connectors, the ingress protection rating is IP65/IP68 (1 m, 1 h).
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- Part number: 32.0394
- Product type: PV-K-SPL-Y/2-ILF3-30/6/E-SSP
- MC4-Evo 2 Y-splitter with in-line fuse
- DC rated voltage: 1500 V
- Rated current: 30 A
- Cable cross-section: 6 mm²
- Cable length: 84 cm
- Input: 1 × Plug
- Outputs: 2 × Socket
- Certification: TÜV Rheinland 2PfG 2380 and 2PfG 1913
- Ingress protection rating with connected plug: IP65/IP68 (1 m, 1 h)
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
