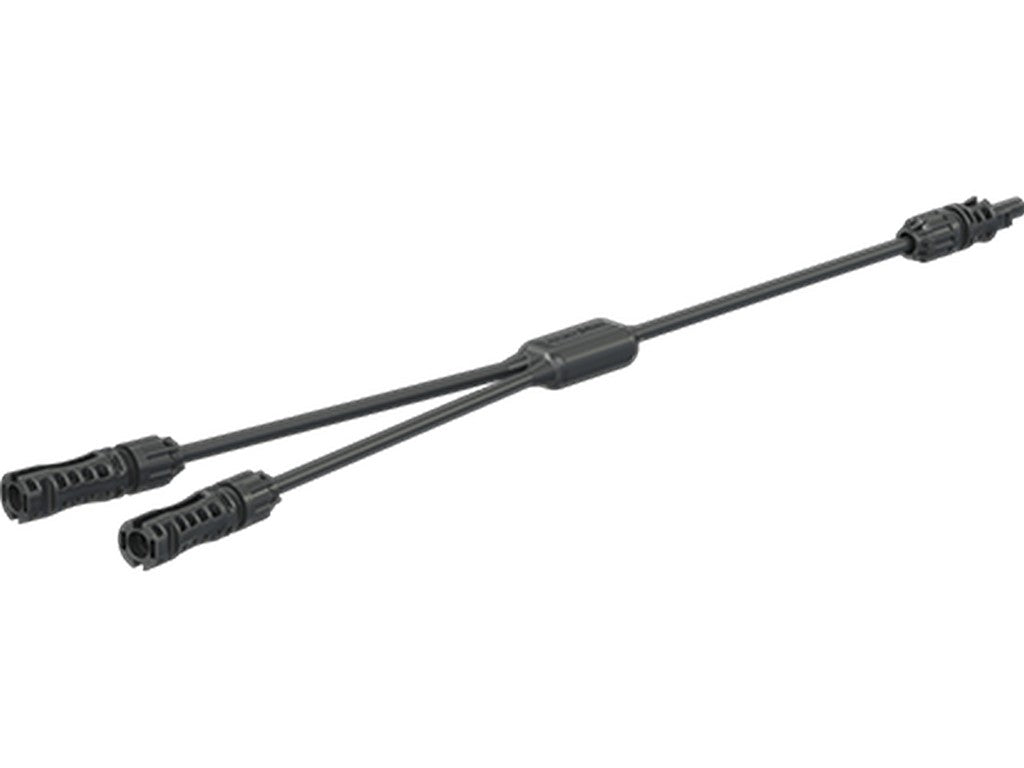

Stäubli MC4-Evo 2 Y-Splitter 32.0333
The Stäubli MC4-Evo 2 Y-Splitter 32.0333 is a connector for solar power systems where two DC strings need to be electrically combined into one output. It is used in the DC part of the system, and its main purpose is to create a parallel connection between two PV strings.
The solution is designed with two plug inputs and one socket output, allowing for neat cable management. It is part of the MC4-Evo 2 system, and original Stäubli connectors must be used. In practice, this is important because the connection must properly match the rest of the system's connector system and its associated technical values.
When selecting and installing, relevant data includes the rated voltage of 1500 V DC and the rated current of 53 A. The cable length is 50 cm, providing a fixed and simple installation. According to the manufacturer's documentation, the product is TÜV Rheinland-certified in accordance with 2PfG 1913/03.21.
Installation and connection must be performed by an electrician or a person with electrical professional instruction, and the system must be de-energized before working on the connection. It is also worth noting that unused connectors must be protected from moisture, dirt, and dust.
Typical Applications
- Parallel connection of two PV strings in a solar power system
- Connection in DC circuits with the MC4-Evo 2 system
- Cable routing where a consolidated Y-branch is desired
Specifications
- Manufacturer: STAUBLI
- MPN: 32.0333
- Product Designation: PV-K/SPL-Y-6-15/15-15EPP/ES-0050
- Connector system: MC4-Evo 2
- Connection: Plug x2 to Socket/Receptacle x1
- Rated voltage: 1500 V DC
- Rated current: 53 A
- Cable length: 50 cm
- Certification: TÜV Rheinland, according to 2PfG 1913/03.21
- Datasheet: See datasheet from manufacturer
