Product Overview

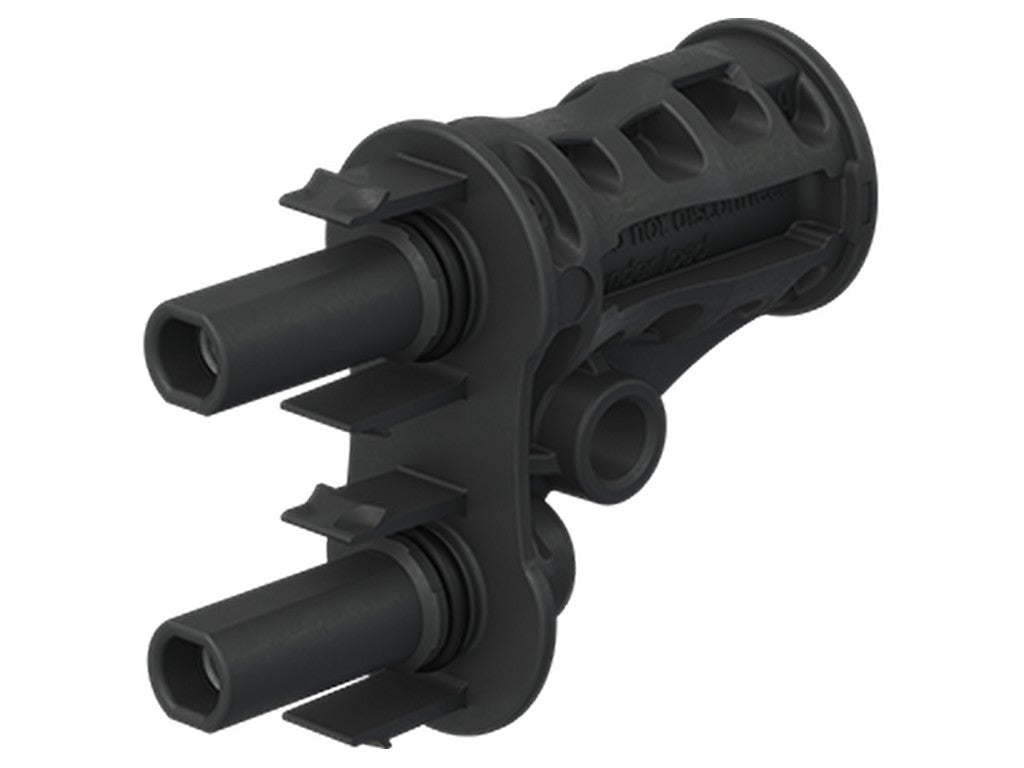

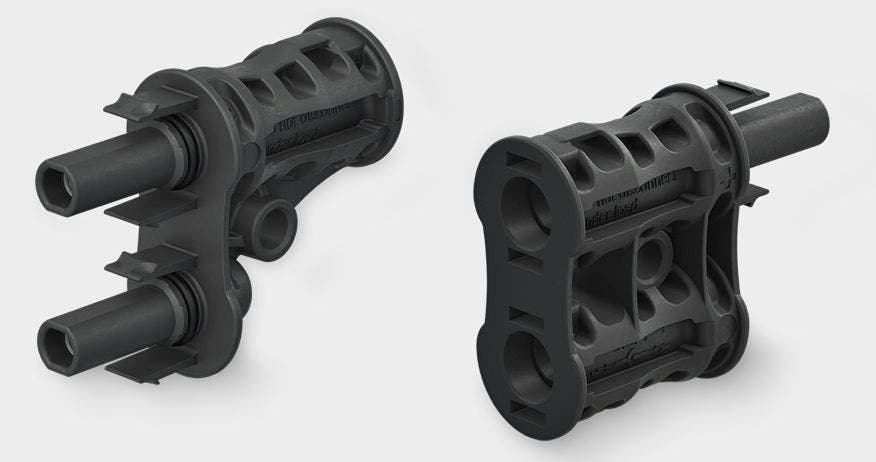

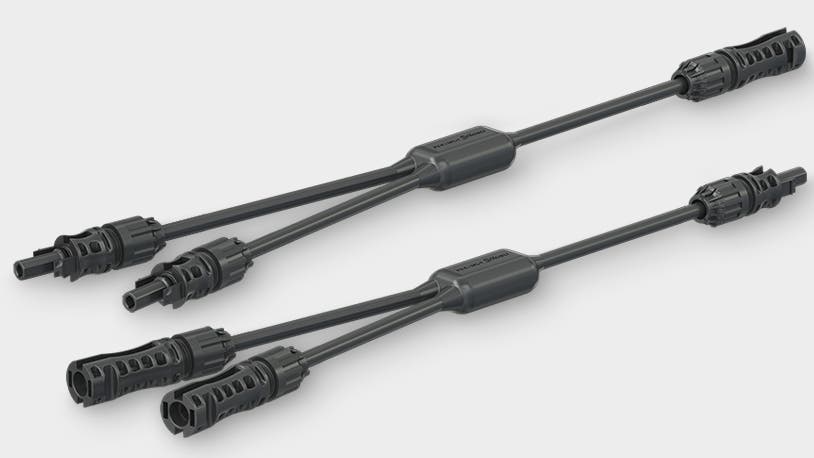

This branch connector from Stäubli (type PV-AZB4-EVO 2-UR) is a branch socket designed for the safe and reliable parallel or serial-parallel connection of PV modules. The PV-AZB4-EVO 2-UR is part of the MC4‑Evo 2 branch connector family and is listed with order no. 32.0196 in the Stäubli Solarline CAD catalog and the manufacturer's datasheet.Function and Compatibility
- Plug-and-play assembly: No crimping or tightening required during assembly.
- Mating-compatible with original MC4 and MC4‑Evo 2 cable connectors.
- MULTILAM contact system for stable electrical connection over time.
Typical Applications
- Used in wiring solutions for PV systems for parallel or series-parallel interconnection of PV modules, as specified by the manufacturer.
- Note from manufacturer: Branch connectors must not be connected directly to the inverter's panel sockets.
Documentation
Further technical data and certification information can be found in the manufacturer's official datasheet.
See datasheet from manufacturer
Specifications
- Product name: PV-AZB4-EVO 2-UR (order no. 32.0196)
- Type: Branch socket (MC4‑Evo 2 branch connector)
- Rated voltage: DC 1500 V (IEC 62852 and UL 6703)
- Rated current (IEC): 60 A
- Rated current (UL): 95 A
- Test voltage: 8 kV
- Rated impulse voltage: 16 kV
- Contact resistance (plug): < 0.5 mΩ
- Operating temperature (IEC): -40 °C … +85 °C
- Operating temperature (UL): -40 °C … +90 °C
- Upper limit temperature (IEC): 115 °C
- IP rating (mated): IP65 / IP68 (1 m, 168 h); (unmated): IP2X
- Contact material: Copper, tin-plated
- Insulating material: PA
- Safety class: II
- Salt mist: Passed (severity 6, IEC 60068-2-52)
- UV resistance: Yes (according to ISO 4892-2/3)
- Compatibility: Compatible with Stäubli MC4 and MC4‑Evo product family
- Maximum operating altitude: 5000 m
Source: Stäubli product datasheet for MC4‑Evo 2 branch connector (order no. 32.0196).
