Product Overview

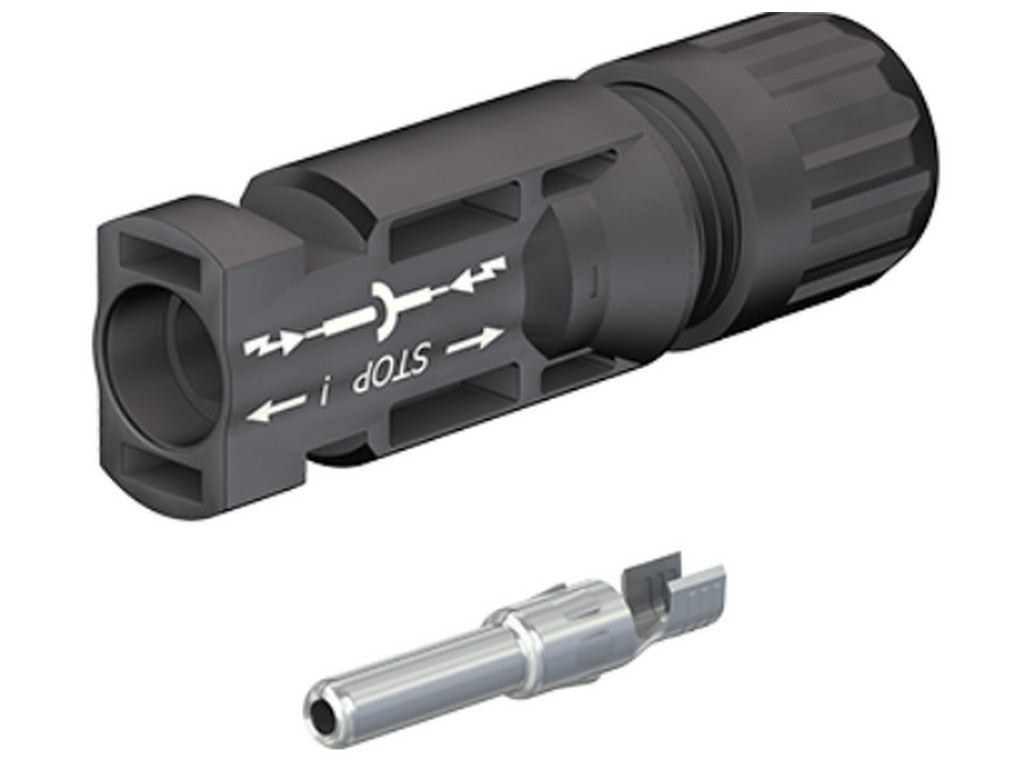

This PV connector from STAUBLI is listed in the Stäubli Electrical Connectors CAD catalog under the designation PV-KST4/6II-UR (part number 32.0017P0001-UR). The product appears in the manufacturer's PV Solarline CAD library and is listed as part of Stäubli's PV/MC4 portfolio. Briefly described, the PV-KST4/6II-UR is a contact component for photovoltaic (PV) systems with associated CAD files for download.Technical Documentation
Stäubli makes CAD files and component information available through its official CAD portal. The list shows available CAD formats (ipt, igs, sat, stp) and metadata for the component. For the manufacturer's official CAD information: See CAD portal at Stäubli.Typical Applications
- Used in photovoltaic systems as a PV connector, in accordance with Stäubli's PV/MC4 product description.
- Applied in installation and design phases where CAD components from Stäubli are included in system documentation and layout.
Compatibility and Notes
According to Stäubli, MC4-Evo ready connectors in their PV portfolio are suitable for PV systems up to 1500 V DC; this information is stated in the manufacturer's Renewable Energy material and applies to the MC4-Evo ready family as mentioned in the source text. The description for PV-KST4/6II-UR in the CAD library confirms the availability of component files for engineering and documentation.Specifications
- Manufacturer: STAUBLI
- Manufacturer's part number: 32.0017P0001-UR
- Designation: PV-KST4/6II-UR
- Listed catalog: PV Solarline (Stäubli CAD catalog)
- MC4-Evo ready – Stäubli states the MC4-Evo ready family as suitable for PV systems up to 1500 V DC.
- CAD files available in formats: ipt, igs, sat, stp (via Stäubli CAD portal).
