Product Overview

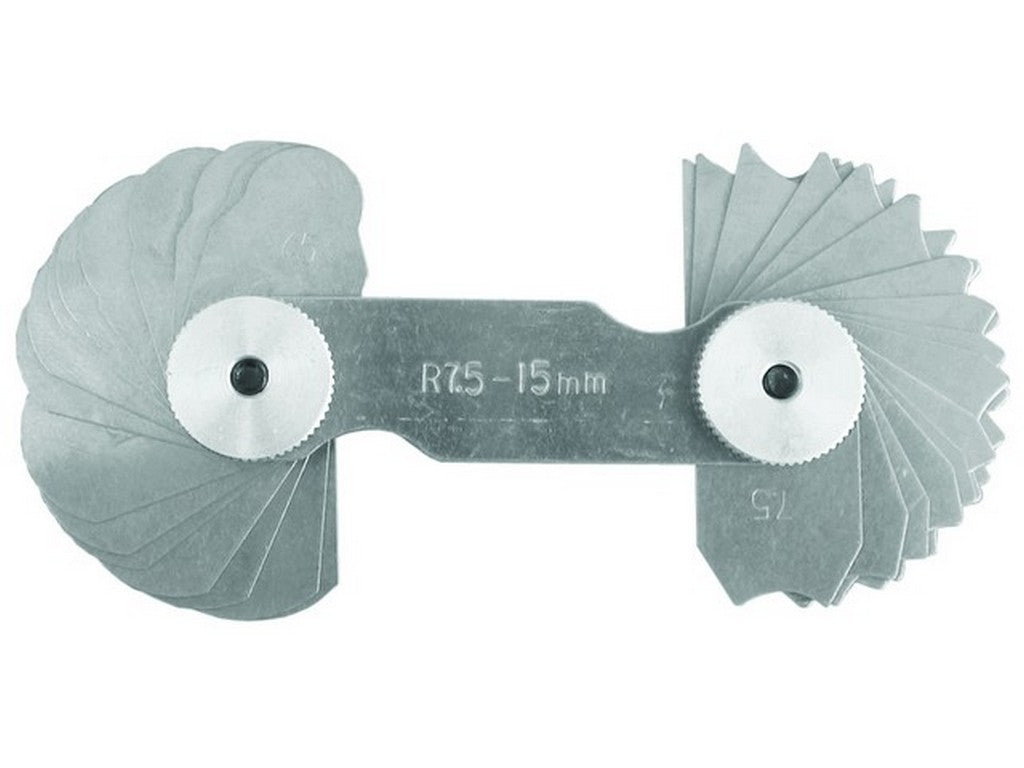

The 7.5-15.0 mm radius gauge from DIESELLA is a manual measuring tool for checking radii. The product is described in the manufacturer's specifications as a radius gauge with a measuring range of 7.5–15.0 mm and is supplied under item number 10591150.Function and Structure
The 7.5-15.0 mm radius gauge contains 16 individual blades, covering the specified measuring range. The tool is designed to check both concave and convex shapes by comparing the profiles of the blades with the radius of the workpiece. The measuring range and the number of blades are stated directly in the manufacturer's product information.- Checking concave shapes
- Checking convex shapes
- 16 blades for a range of standardized radii
Typical Applications
The product data clearly indicates that the material is suitable for checking both concave and convex shapes. The 7.5-15.0 mm radius gauge is therefore used where it is necessary to verify that a given radius falls within the specified range of 7.5–15.0 mm.Documentation
See datasheet from the manufacturerSpecifications
- Item number: 10591150
- Product name: Radius gauge 7.5-15.0 mm
- Measuring range: 7.5 - 15 mm
- Number of blades: 16
- EAN / Barcode: 5708004004325
- Gross weight: 0.130 kg
- Net weight: 0.110 kg
- Customs tariff: 9017300000
- Sales quantity: 1
