STAUBLI 05.5102

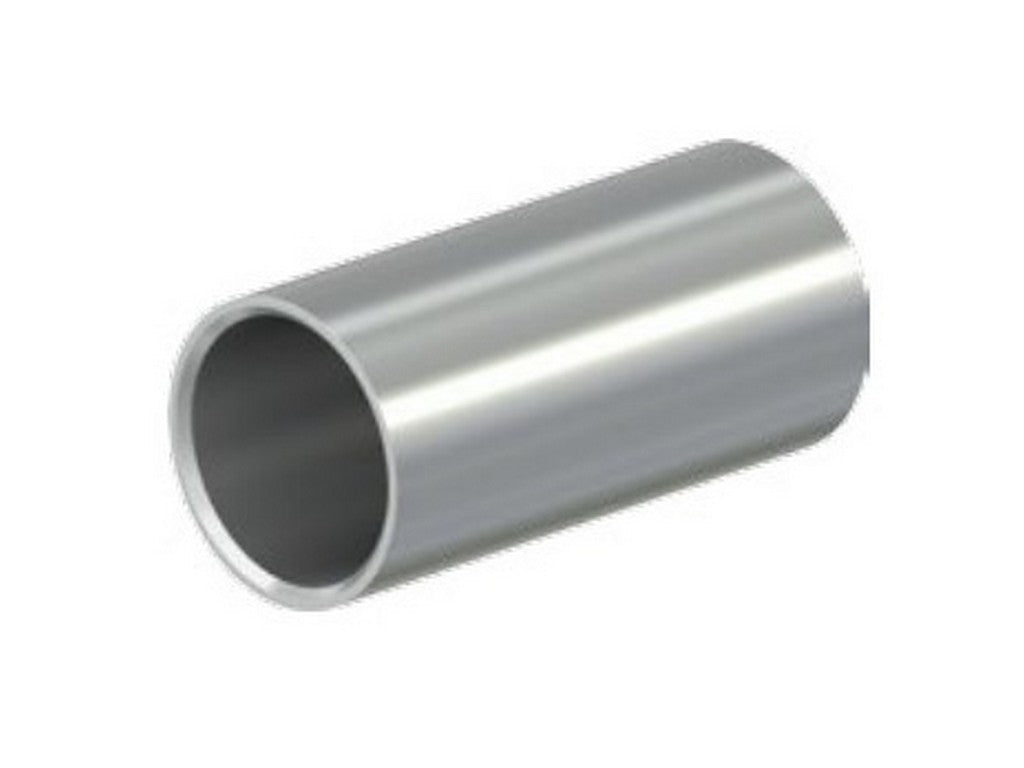

The STAUBLI 05.5102 is a reduction sleeve for Stäubli's round, uninsulated connector systems. It is used when a smaller conductor cross-section needs to be crimped into a crimp sleeve that is otherwise designed for a larger cross-section. Here, the transition is from 10 mm² to 6 mm².
In practice, it is a small but important spare part for cable assembly. It allows for adapting a connection to fit the conductor one is actually working with. The sleeve is made of silver-plated copper and can be crimped to become an integral part of the finished connection.
This is a solution typically chosen when one wants to stay within an existing plug and crimp system but needs to work with a smaller conductor. The dimensions provided for the part are Ø A 4 mm, Ø B 4.8 mm, and length 11 mm.
Specifications
- Manufacturer: STAUBLI
- MPN: 05.5102
- Type: RH10-6 AG
- Reduces from 10 mm² to 6 mm²
- Material: copper (Cu)
- Surface: silver-plated
- Can be crimped
- Ø A: 4 mm
- Ø B: 4.8 mm
- Length C: 11 mm
- See datasheet from the manufacturer
