Product Overview
IONOX I3302 from KYZEN is a semi-aqueous cleaning agent developed for the removal of SMT Pb-free solder paste and tacky flux paste residues. The product is formulated for effective cleaning of Sn/Bi solder paste types and baked-on flux residues. IONOX I3302 can be used in a variety of semi-aqueous cleaning processes and is available in several container sizes.Technical Characteristics and Process Parameters
- Formulation: Semi-aqueous, water-soluble (complete solubility stated by the manufacturer)
- Flash point: 180°F (82°C)
- Boiling point: 302°F (150°C)
- VOC @ 100%: 1035 g/L
- Recommended application: Immersion (incl. immersion agitation), centrifugal, ultrasonic, and mega-sonic / SUI systems
- Recommended concentration: 100% (stated as typical process parameter)
- Process temperature: <140°F / 60°C (typical recommendation)
- Rinse: Rinse with deionized (DI) water or IPA; manufacturer states "Hot DI Water Rinse" and option for hot air drying
Handling and Packaging

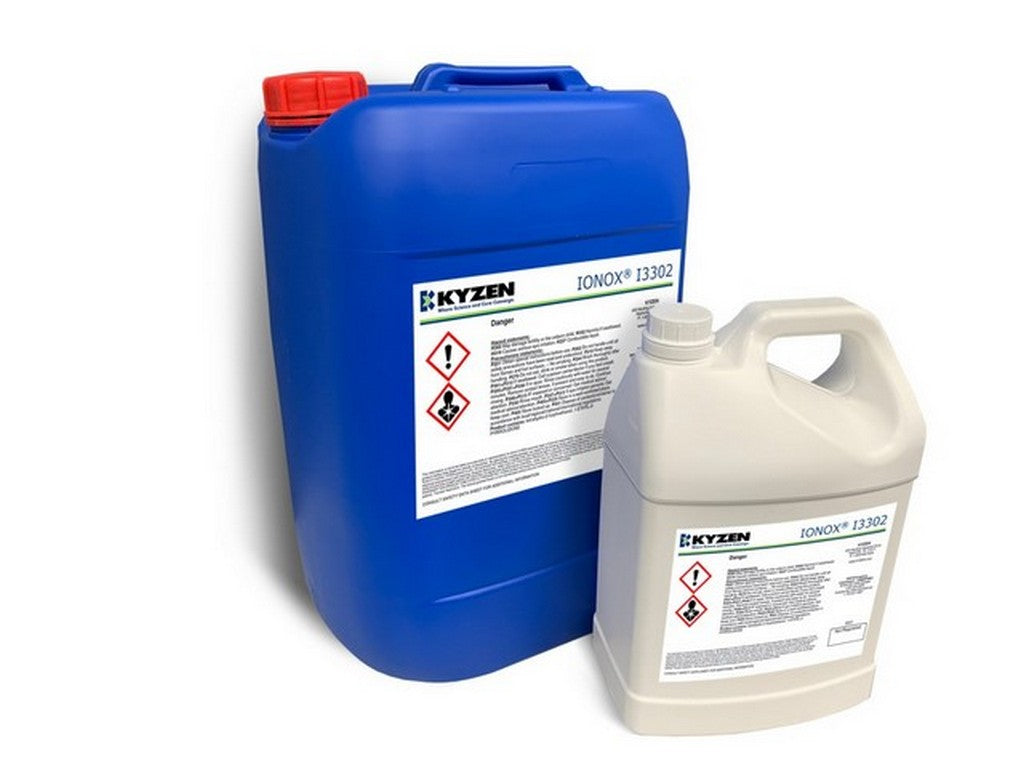

KYZEN specifies storage in polyethylene cabinets at 5–50°C (41–122°F) in original packaging. Products are available in packaging sizes including 1 gallon, 5 liters, 5 gallons (25 liters), 55 gallons (208 liters). Shelf life is stated as 5 years in sealed containers of 5 gallons/25 liters or larger.
Environment, Health, and Compliance
The manufacturer states that IONOX I3302 is biodegradable, non-hazardous, water-soluble, and is RoHS-compliant as well as halogen-free according to RoHS Directive (EU) 2015/863 and EN 14582:2016. KYZEN also states that the product has negligible global warming potential and is not regulated as an Ozone Depleting Chemical in the USA.
Typical Applications
- Use in semi-aqueous centrifugal cleaning equipment
- Use in spray-under-immersion (SUI) systems
- Use in ultrasonic and mega-sonic cleaning processes
- Application in the removal of SMT Pb-free solder paste, tacky flux, and baked-on flux residues
For detailed process parameters and complete laboratory-based recommendations, please refer to the manufacturer's documentation.
Specifications
- Product name: IONOX I3302
- Manufacturer: KYZEN
- Boiling point: 302°F / 150°C
- Flash point: 180°F / 82°C
- VOC @ 100%: 1035 g/L
- Water solubility: Complete
- Recommended process: Immersion, centrifugal, ultrasonic, SUI
- Recommended process concentration: 100%
- Storage temperature: 5–50°C
- Available packaging sizes: 1 gallon, 5 liters, 5 gallons (25 liters), 55 gallons (208 liters)
Sources: KYZEN product documentation and product sheet.
Content generated using AI – we reserve the right to errors.
Contact HIN for further information about the product.
