Product Overview

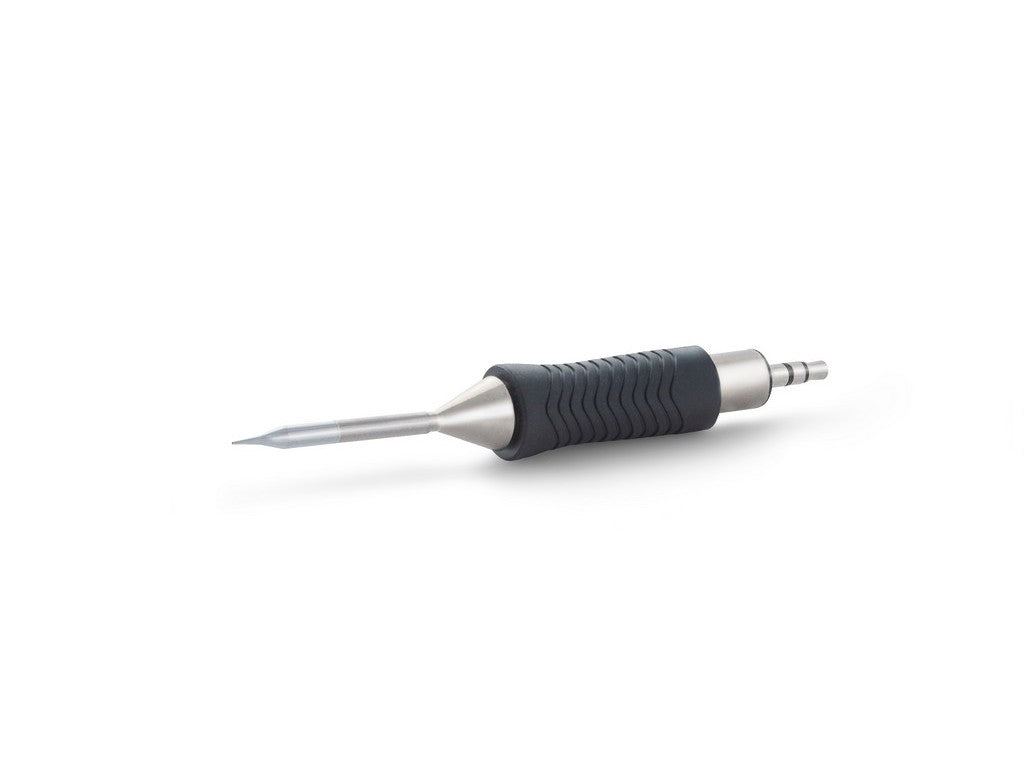

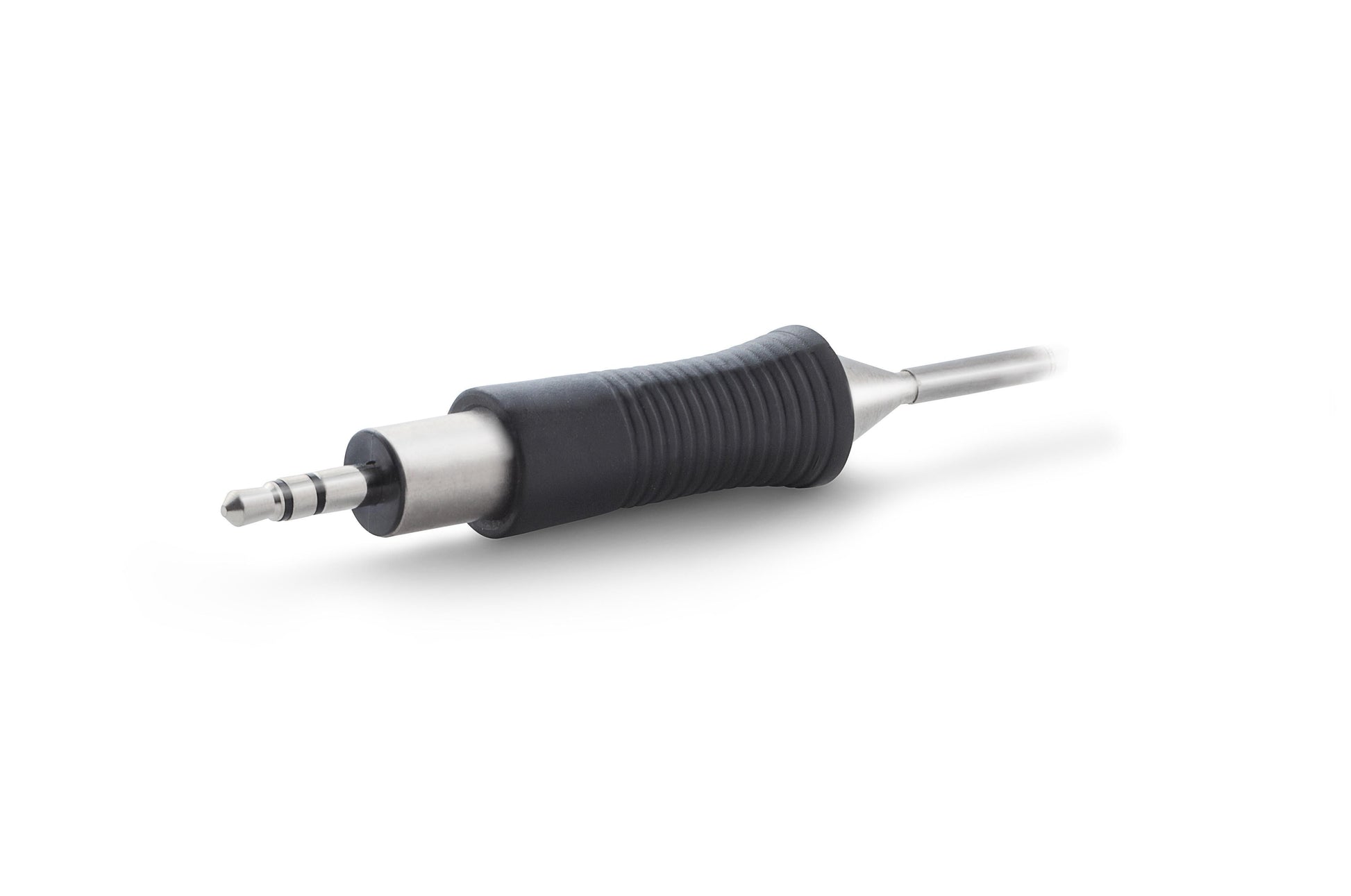

The RTM 003 S NW MS from WELLER is an RT Micro soldering tip in chisel-form with dimensions Ø 0.3 x 0.1 mm. The product is a MIL‑SPEC (MS) version and is specified as non-wettable. The tip is designed for use with Weller WXMP‑MS, WTMP‑MS, and WMRP‑MS soldering irons and is supplied in packs of 1 pc.
Technical Description
The RTM 003 S NW MS is an active RT Micro soldering tip with a chisel-form, intended for precision soldering of micro and standard components. The tip's specified parameters include length, power, and recommended tip-finder size range, as specified by the manufacturer.
Documentation
The manufacturer's official datasheet contains detailed technical data and can be found via the following link:
View datasheet from manufacturer
Typical Applications
- Use for precision soldering of micro and standard components, as specified by the manufacturer.
- The product is specified for use in applications mentioned in the manufacturer's documentation: Aerospace, Military (MS versions only), Electronics, Sensors, Medical devices, and Automotive.
Specifications
- Product name: RTM 003 S NW MS
- Manufacturer: WELLER
- Item number: T0054462671N
- Tip form: Chisel
- Dimension: Ø 0.3 x 0.1 mm
- Mil‑Spec: Yes (MS version)
- Surface property: Not wettable
- Length: 0.787 in
- Power: 40 W
- Tip finder size: 0.1 - 0.4 mm
- Compatible with: WTMP‑MS; WMRP‑MS; WXMP‑MS
- Quantity per pack: 1
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
