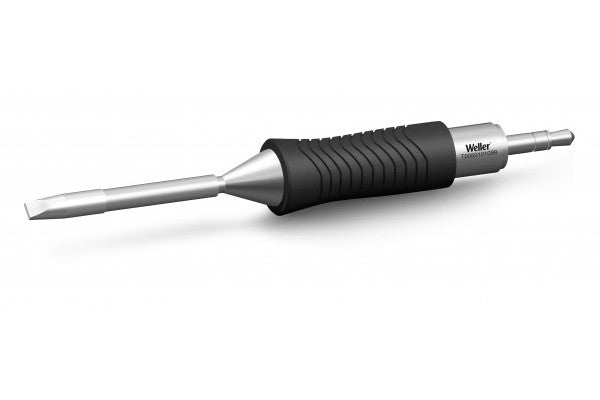

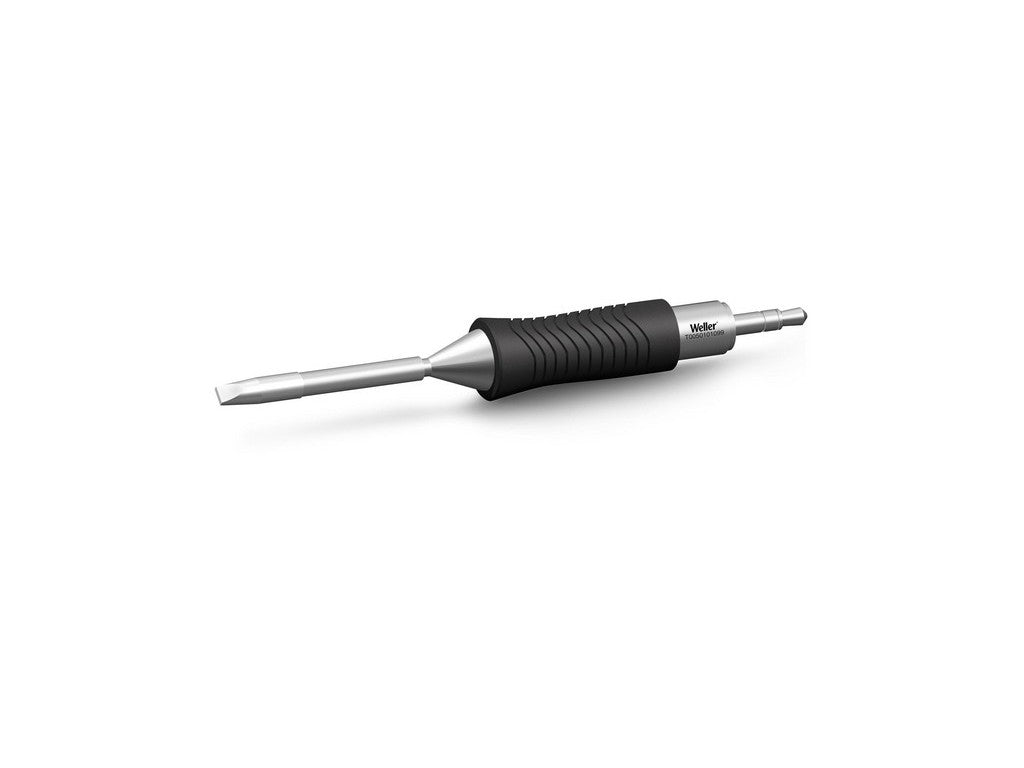

RTM 032 S MS from WELLER
The RTM 032 S MS is an RT Micro soldering tip in chisel design from WELLER, intended for precise soldering of micro and standard components. The product is identified by the manufacturer's part number T0050101099 and is specified as an MS version, which is MIL-SPEC / IPC-compliant. The tip is specified for use with WXMP and WMRP (MS) micro soldering irons and has a nominal power of 40 W.
Technical Characteristics
- Tip form: Chisel shape
- Tip type: MS
- Width: 3.2 mm (0.126 in)
- Thickness: 0.9 mm (0.035 in)
- Length: 17.5 mm (0.689 in)
- Power: 40 W
- Packaging unit: 1
- Manufacturer's part number: T0050101099
Functional Properties
- The MS version is indicated as MIL-SPEC / IPC-compliant (potential-free) according to the manufacturer's information.
- Active tip technology is mentioned for fast heating and recovery time, as well as a sensor close to the soldering tip for improved heat transfer.
- Patented tip and grip design with tool-free tip replacement, as well as an integrated heating element, tip, and grip in one unit.
Documentation
Further technical data and manufacturer information can be found in the manufacturer's official material:
See datasheet from manufacturer
Typical Applications
The RTM 032 S MS is intended for soldering micro and standard components, as indicated in the product information. The stated compatibility with WXMP and WMRP (MS) micro soldering irons specifies the intended application context directly from the manufacturer's data.
Specifications
- Product name: RTM 032 S MS
- Manufacturer: WELLER
- Part number: T0050101099
- Tip form: Chisel shape
- Tip type: MS (MIL-SPEC / IPC-compliant indicated)
- Width: 3.2 mm
- Thickness: 0.9 mm
- Length: 17.5 mm
- Power: 40 W
- Packaging unit: 1
