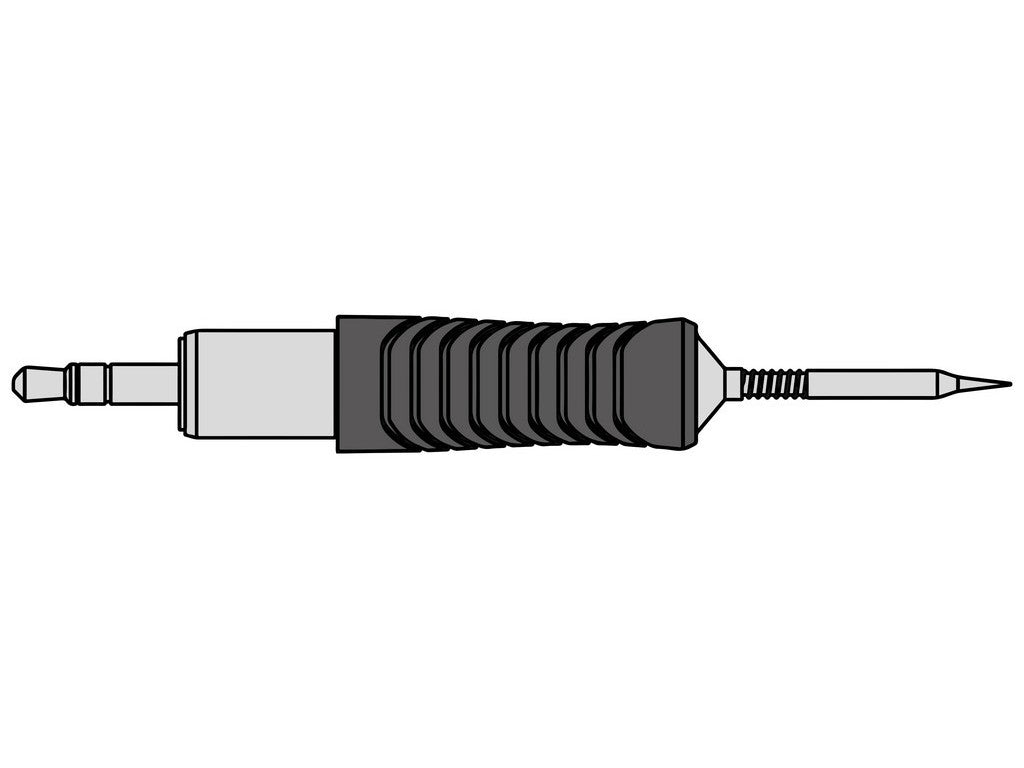

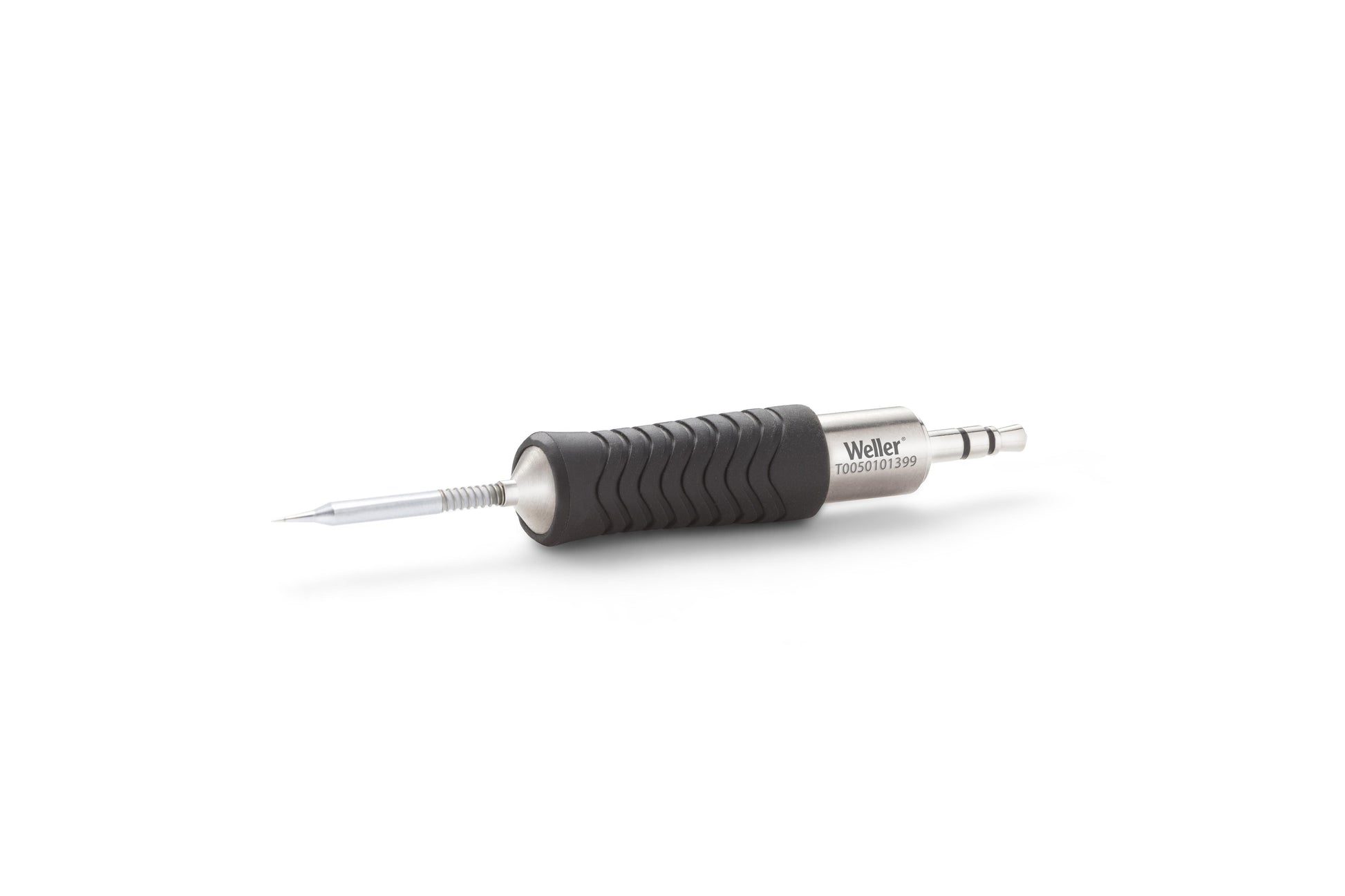

RTP 001 C MS — RT Pico Soldering Tip
RTP 001 C MS (Item No. T0050101399) is an RT Nano/Pico soldering tip from WELLER with a conical tip and a nominal diameter of 0.1 mm (RT Pico). The product is specified for use with WXPP‑MS and WTPP‑MS soldering irons and is an MS‑version that meets MIL‑SPEC/IPC‑requirements and is potential-free.
Technical Description
- Tip Shape: Conical
- Tip Diameter: 0.1 mm
- Length: 0.7 in
- Power: 40 W
- ESD Safe: Yes
- Tip Finder Size: 0.1–0.4 mm
- Package Quantity: 1 pc.
- Compatibility: WXPP‑MS, WTPP‑MS
See datasheet from the manufacturer
Typical Applications
RTP 001 C MS is specified for precision soldering of the smallest micro-components and is directly indicated for component sizes from 0402 down to 01005. The datasheet also states that the tip is developed for very small precision soldering tasks within the following areas (as indicated in the manufacturer's documentation):
- Aerospace
- Military (MS‑versions only)
- Electronics
- Sensors
- Medical devices
- Automotive
The tip's short distance from tip to grip and its conical shape make it suitable for accurate spot soldering on small pins and pads, within the component sizes indicated in the manufacturer's data.
Specifications
- Product Name: RTP 001 C MS (Item No. T0050101399)
- Type: RT Pico tip, conical Ø 0.1 mm
- Compatibility: WXPP‑MS, WTPP‑MS
- Length: 0.7 in
- Power: 40 W
- ESD Safe: Yes
- Mil‑Spec: Yes (MS‑version)
- Tip Finder Size Range: 0.1 - 0.4 mm
- Quantity per package: 1
- Applicable component sizes: 0402 down to 01005
- Product Family: RT Nano/Pico MS Active Soldering Tips
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
