Product Overview

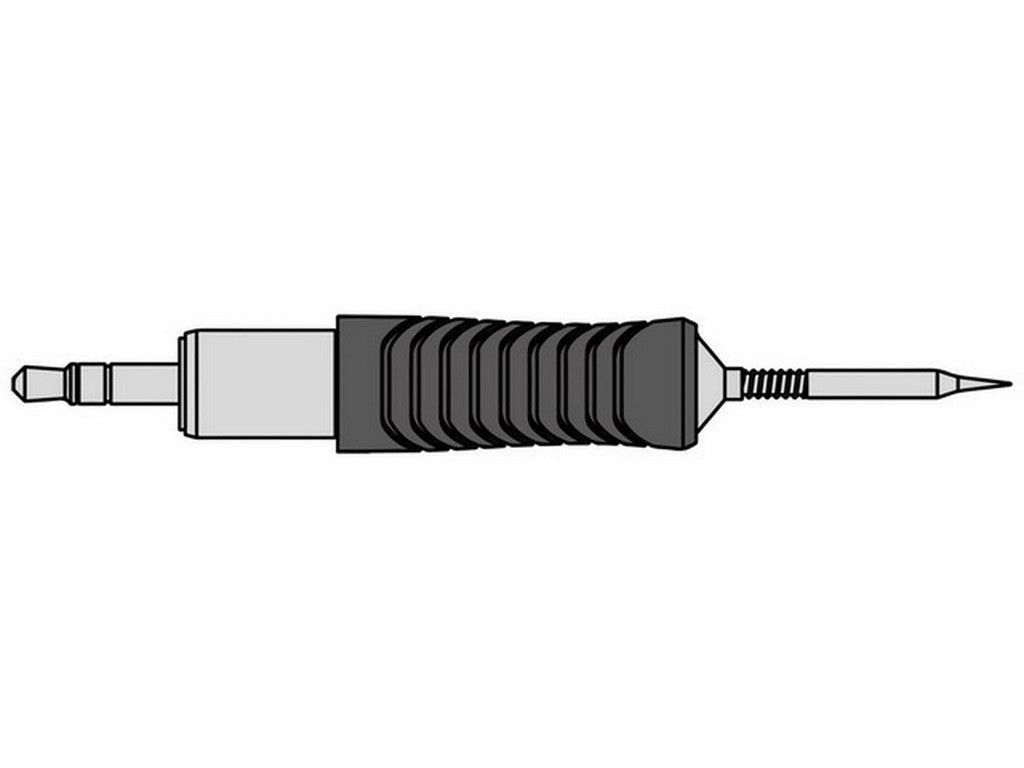

This soldering tip from WELLER, RT Pico soldering tip RTP 001 C NW MS, is a conical active soldering tip with a tip diameter of 0.1 mm. The product is listed as a MIL-SPEC (MS) version and is specified as non-wettable (NW). The tip is designed for use with WXPP MS and WTPP MS active-tip soldering irons.Function and Design
The RT Pico soldering tip RTP 001 C NW MS is intended for precision soldering of very small components. The datasheet's technical information indicates a total length of 17.9 mm, a body diameter of 2.4 mm, and a power of 40 W. The tip is conical and classified as NW WX in the manufacturer's terminology.Documentation
Refer to the manufacturer's official datasheet for complete product information: See datasheet from manufacturerTypical Applications
The description in the manufacturer's material directly indicates the applications and areas for which the tip is intended:- Precision soldering of very small components, size 0402 down to 01005
- Aerospace
- Military (MS versions only)
- Electronics
- Sensors
- Medical devices
- Automotive
Specifications
- Product: RT Pico soldering tip RTP 001 C NW MS
- Item No: T0050101499
- Tip diameter: 0.1 mm
- Tip shape: Conical
- Length: 17.9 mm
- Body diameter: 2.4 mm
- Power: 40 W
- Tip Type: NW WX
- Tip Finder Size Range: 0.1 - 0.4 mm
- ESD Safe: Yes
- Mil-Spec: Yes
- Quantity Per Package: 1
- Works With: WXPP-MS, WTPP-MS
- Product Family: RT Nano/Pico MS Active Soldering Tips
