Product Overview

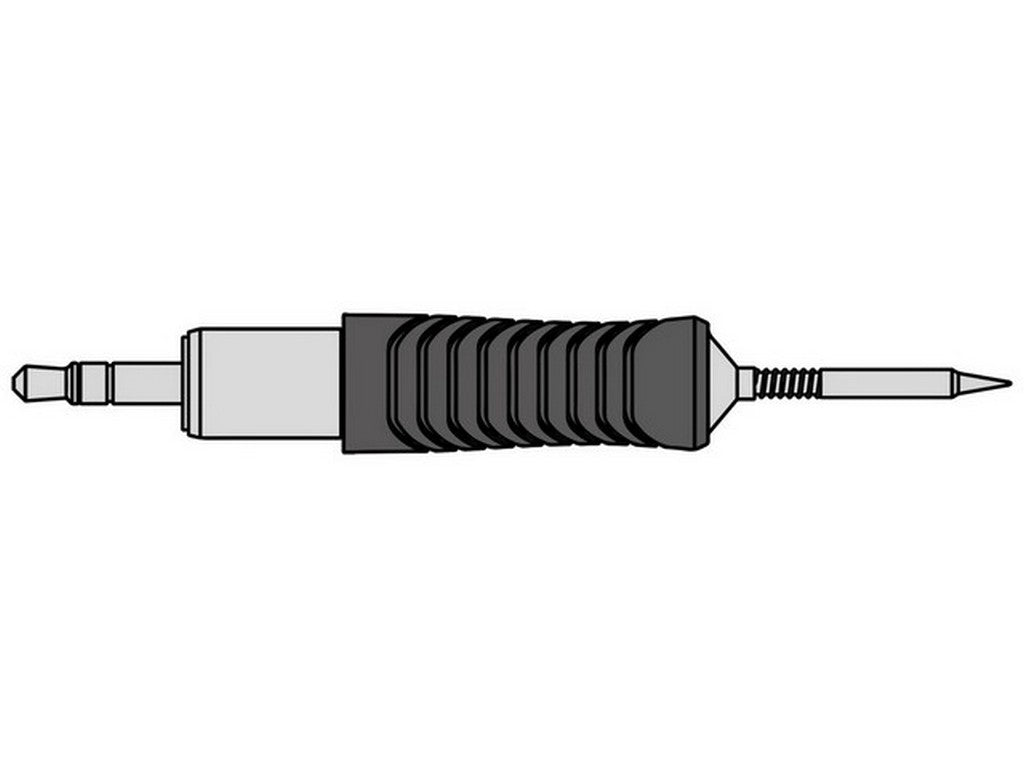

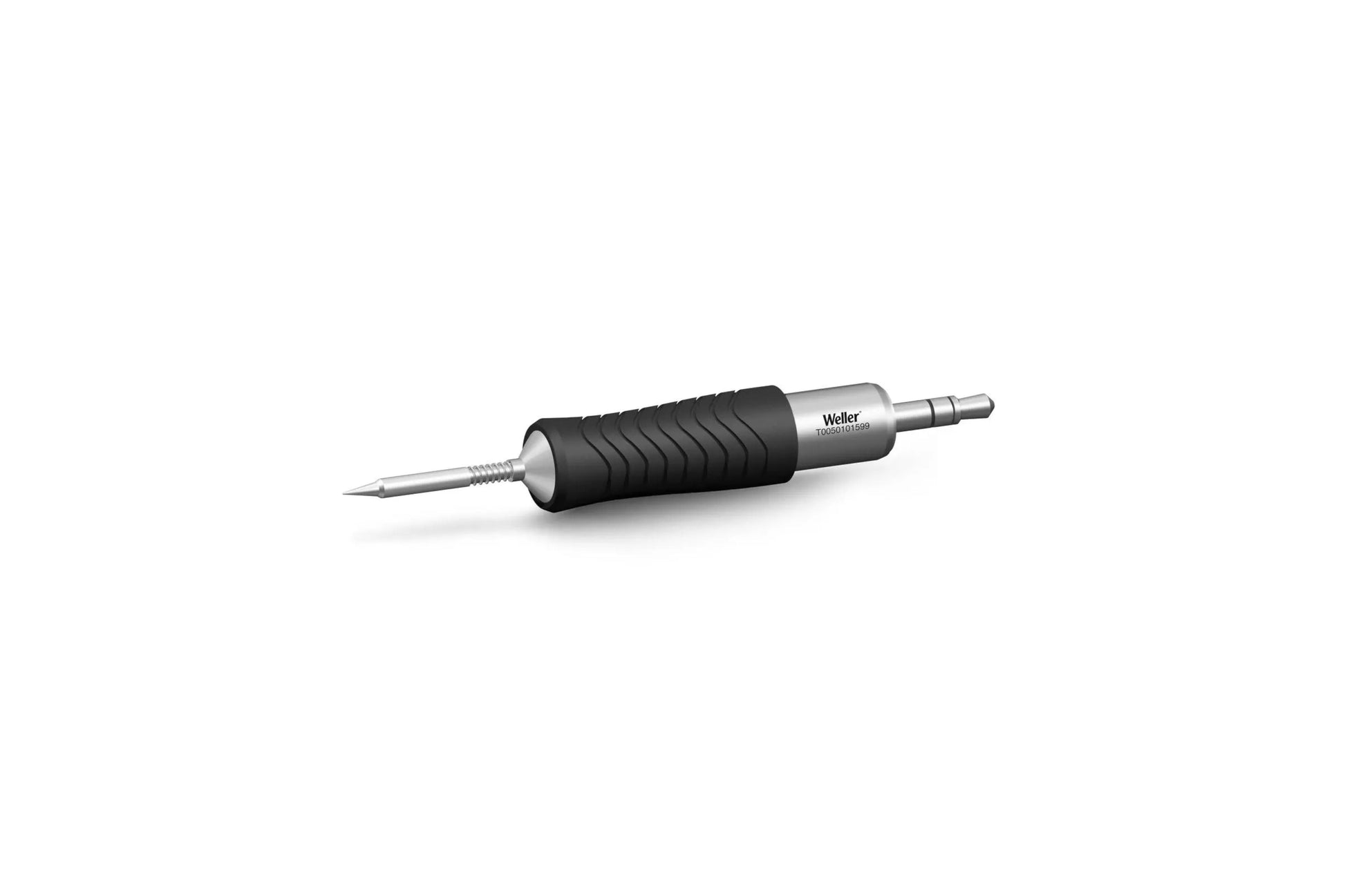

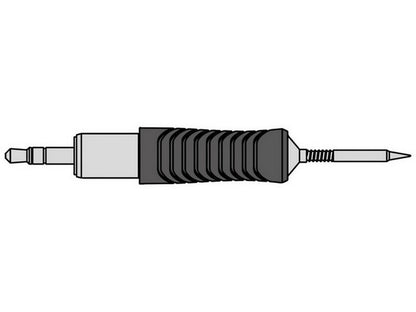

This soldering tip, Weller RTP 002 C MS RT Pico tip, is a conical soldering tip designed for precision soldering of very small components. The product is identified as Item No. T0050101599 and is specified as a MIL-SPEC RT Pico tip with a tip diameter of 0.2 mm.Description
The Weller RTP 002 C MS is an RT Nano/Pico active soldering tip with a short tip-to-grip distance for maximum precision. The conical tip has a diameter of 0.2 mm and is specified for nano/pico micro-components in the size range of 0402 down to 01005. The product is supplied as a single unit per pack.
Technical Specifications

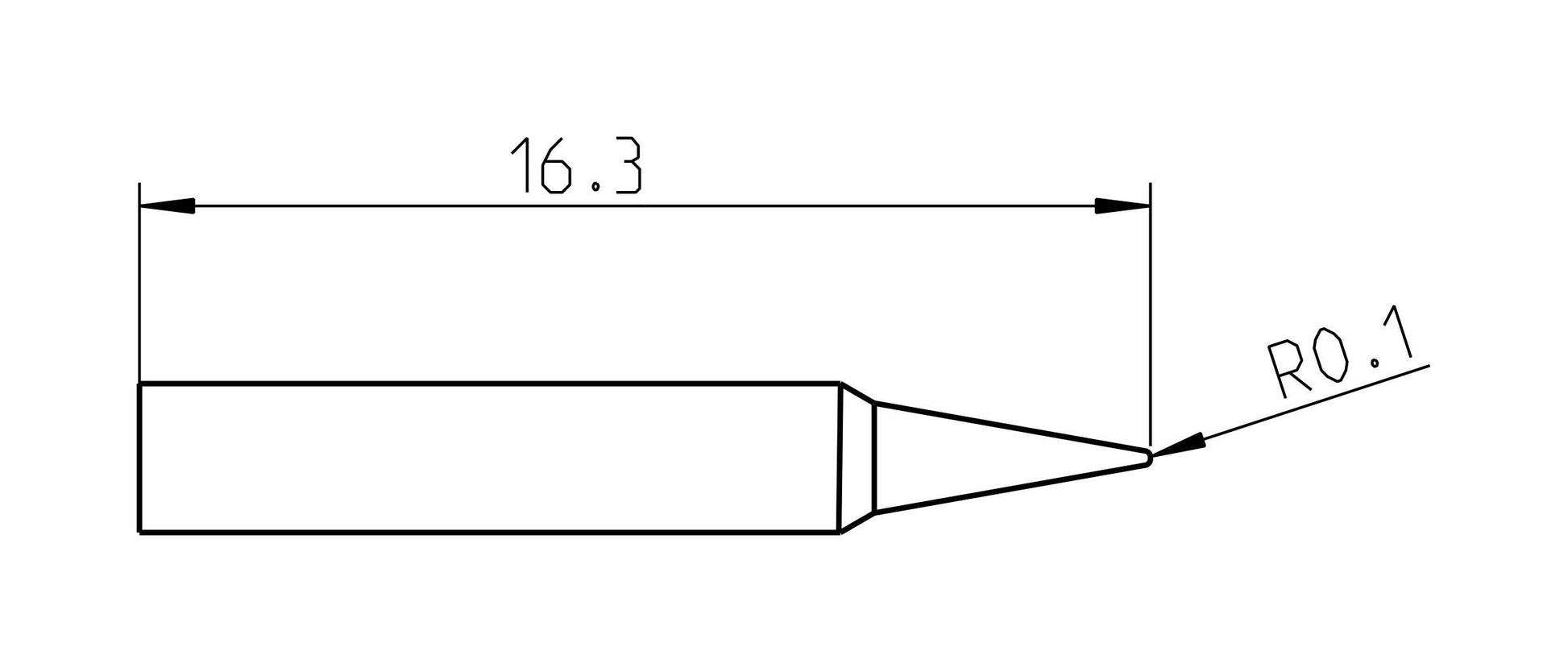

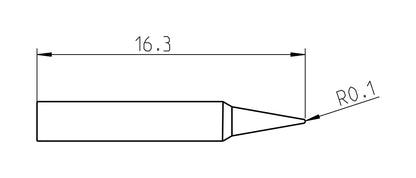

- Tip shape: Conical
- Tip diameter: 0.2 mm
- Length: 0.6 in
- Power: 40 W
- Mil-Spec: Yes (MS version)
- Tip Finder size: 0.1 - 0.4 mm
- Compatibility: WXPP-MS and WTPP-MS soldering irons
- Product family: RT Nano/Pico MS Active Soldering Tips
For further technical documentation, the manufacturer's datasheet can be used:
View datasheet from manufacturer
Typical Applications
- Used for soldering the smallest micro-components: 0402 down to 01005.
- Designed for precision tasks in the applications specified by the manufacturer: Aerospace, Military (MS versions only), Electronics, Sensors, Medical devices, and Automotive.
Specifications
- Item No: T0050101599
- Tip name: RTP 002 C MS / RT Pico tip
- Tip shape: Conical
- Tip diameter: 0.2 mm
- Length: 0.6 in
- Power: 40 W
- Mil-Spec: Yes
- Compatible with: WXPP-MS, WTPP-MS
- Quantity per pack: 1
