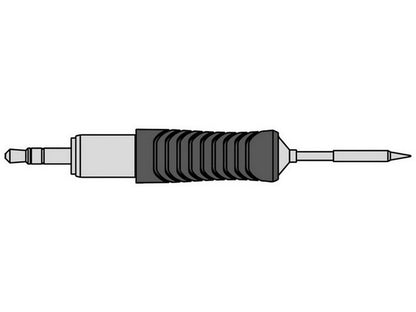

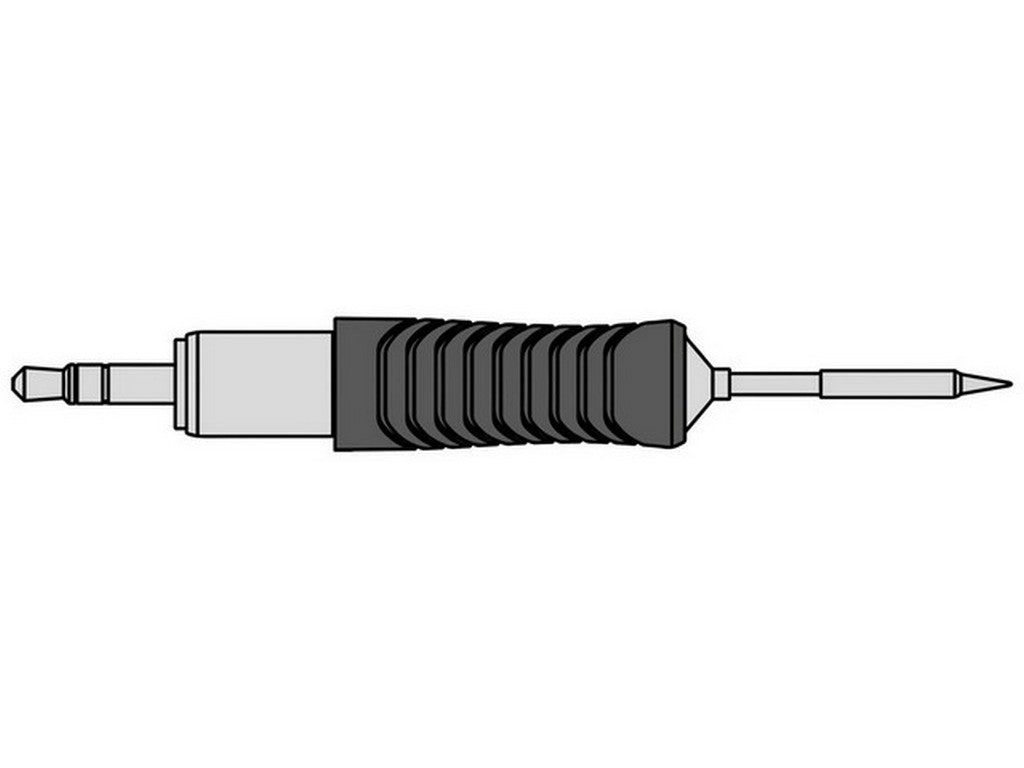

RTP 002 C Pico Conical

Product Overview

This WELLER RTP 002 C (T0050103399) soldering tip is an RT Pico conical soldering tip with a tip diameter of 0.2 mm. The RTP 002 C is designed for soldering very small micro-components in the size range 0402 down to 01005. The tip uses Weller's "Active tip technology" for rapid heating and heat recovery and is compatible with the WXPP soldering iron.

Features

• Conical tip (tip shape: Conical)
• Tip diameter: 0.2 mm
• Active tip technology for quick heating and short recovery time
• Short tip-to-grip distance for close working distance and high precision
• Patented tip & grip design: tool-free replacement, faster replacement
• Compatible with WXPP soldering iron

Documentation

For technical details and manufacturer information: See datasheet from the manufacturer

Typical Applications

• Suitable for soldering very small micro-components in the size range 0402 to 01005

Specifications

• Product name: RTP 002 C (Item No. T0050103399)
• Manufacturer: WELLER
• Tip-type: HM
• Tip-shape: Conical
• Tip width / diameter: 0.2 mm

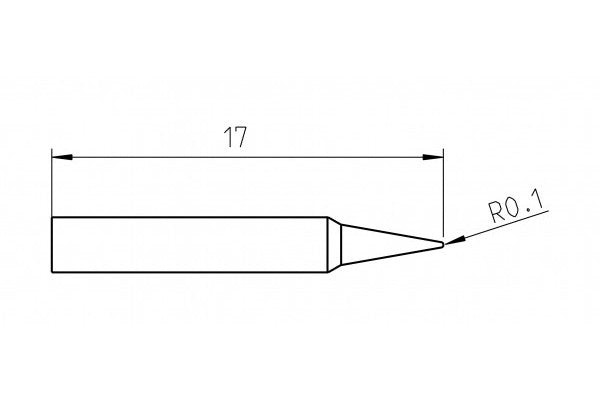

• Length: 17 mm
• Power: 40 W
• Tip finder size: 0.1–0.4 mm
• Packing unit: 1

The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
