Product Description

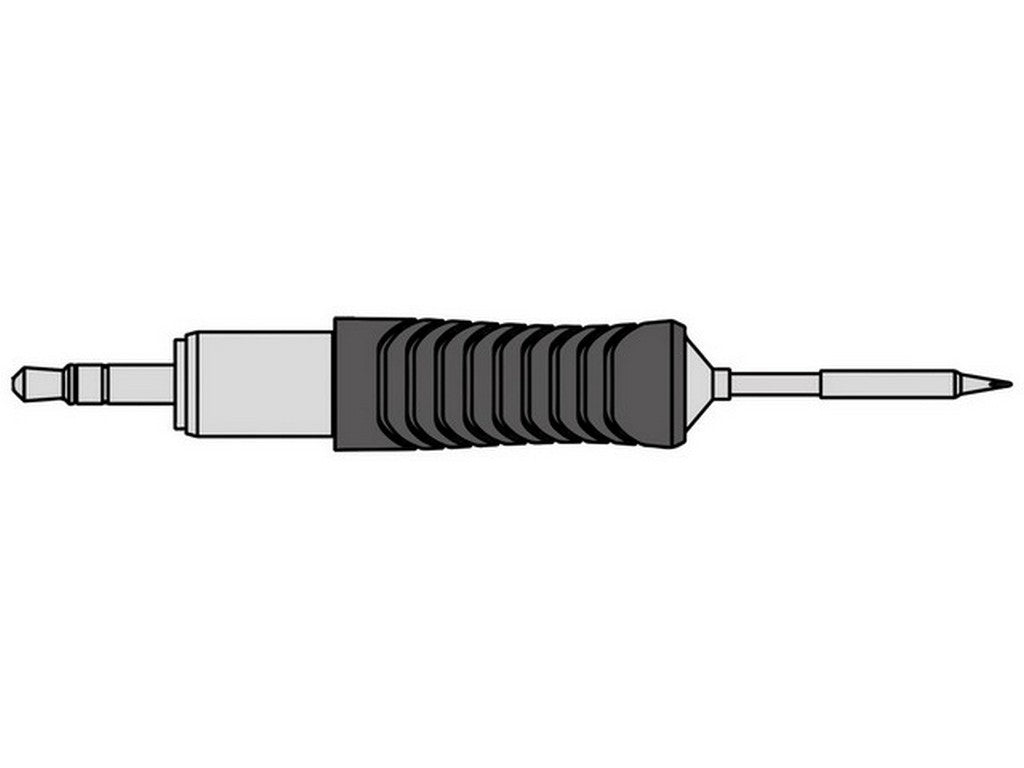

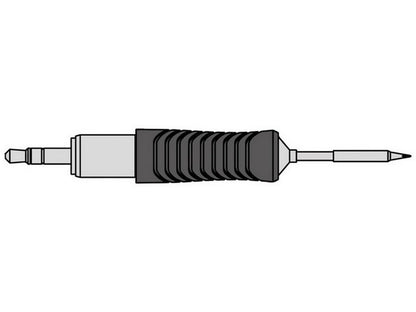

This soldering tip is the Weller RTP 002 S (Item No. T0050103999), an RT Nano/Pico active chisel soldering tip designed for precision soldering. The product is described for use with WXPP soldering irons and has a power rating of 40 W. The tip's dimensions are specified as 0.2 × 0.1 mm with a total length of 0.6 in.
Technical Characteristics
- Product Name: Weller RTP 002 S (Item No. T0050103999)
- Tip type: HM
- Tip shape: chisel

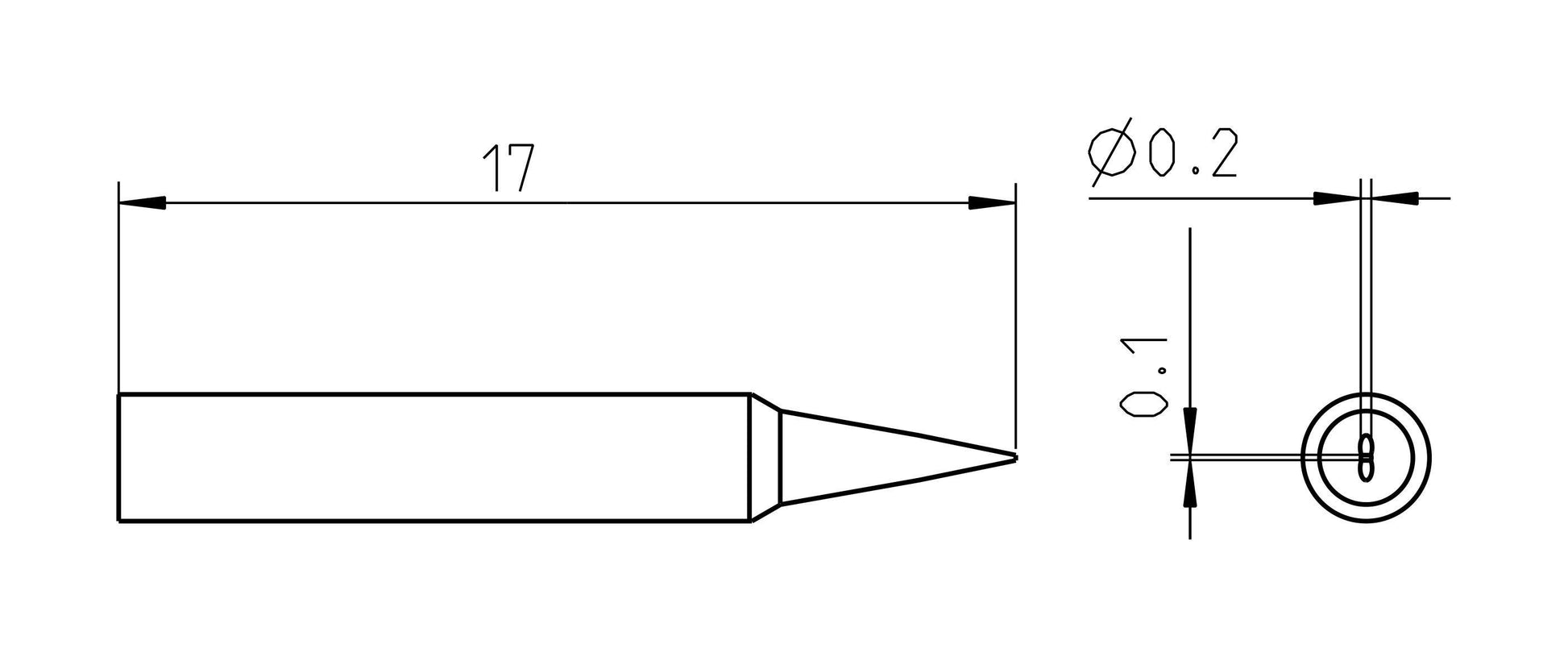

- Dimensions: 0.2 × 0.1 mm
- Length: 0.6 in
- Power rating: 40 W (specified for use with WXPP)
- Tip finder size: 0.1 - 0.4 mm
Documentation
The manufacturer's product page provides available data sheets and product brochures. Refer to the manufacturer's official documentation for further details:
View data sheet from manufacturer
Typical Applications
The Weller RTP 002 S is specified as suitable for the smallest micro-components, specifically from 0402 down to 01005. This indicates application in precision soldering of very small components, where a chisel tip with fine dimensions and a tip finder size of 0.1–0.4 mm is relevant.
Specifications
- Product Name: Weller RTP 002 S (Item No. T0050103999)
- Tip dimensions: 0.2 × 0.1 mm
- Length: 0.6 in
- Tip finder size: 0.1 - 0.4 mm
- Tip shape: chisel
- Tip type: HM
- Recommended use: for micro-components from 0402 to 01005
- Compatibility: specified for use with WXPP soldering irons
- Power rating: 40 W
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
