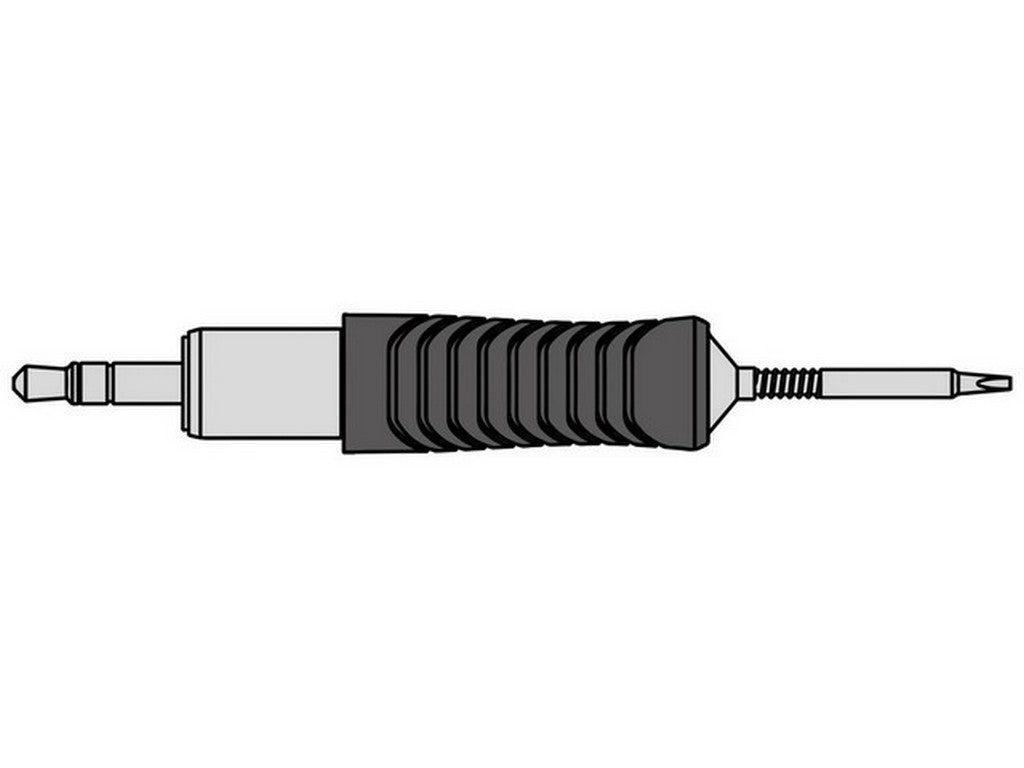

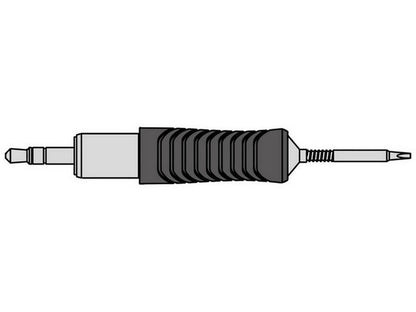

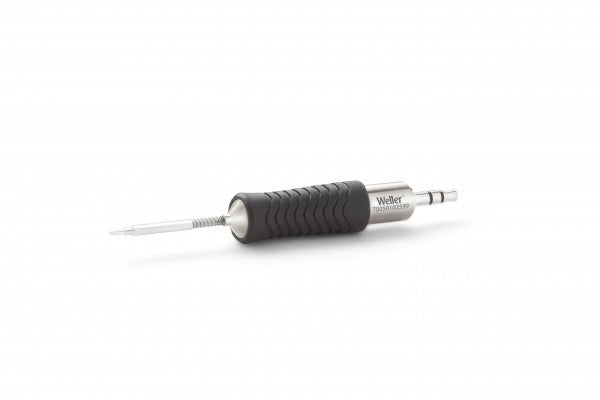

Weller RTP 010 S MS RT Pico Soldering Tip
This RTP 010 S MS RT Pico soldering tip from WELLER is a chisel-shaped tip designed for precision soldering. The product is specified as the MIL-SPEC (MS) variant and is intended for 40 W power. The product name "Weller RTP 010 S MS RT Pico" is used in the manufacturer's documentation to identify the tip.
Description
- Tip dimensions specified by the manufacturer: 1.0 mm width x 0.3 mm thickness.
- Tip length: 16.3 mm.
- Tip shape: Chisel.
- Compatibility: specified for use with WXPP‑MS and WTPP‑MS soldering irons.
Documentation
The manufacturer provides a two-page product datasheet and images on Weller's official website. For technical details and manufacturer's stated data: See datasheet from the manufacturer.
Typical Applications
The manufacturer's datasheet states that the RTP 010 S MS RT Pico soldering tip is designed for high-precision tasks and the smallest micro components with sizes specified as 0402 down to 01005. The manufacturer specifically mentions applications in the following areas:
- Aerospace.
- Military (MS versions only).
- Electronics.
- Sensors.
- Medical devices.
- Automotive industry.
Specifications
- Item No: T0050102599
- Product Name: RTP 010 S MS / RT Pico
- Tip dimensions: 1.0 x 0.3 mm (width x thickness)
- Tip length: 16.3 mm
- Tip shape: Chisel
- Power/Wattage: 40 W
- Diameter (body): 2.4 mm
- ESD Safe: Yes
- Mil‑Spec: Yes
- Compatible with: WXPP‑MS, WTPP‑MS
- Tip Finder size range: 0.4 - 1.0 mm
- Quantity per pack: 1
- Product family: RT Nano/Pico MS Active Soldering Tips
- UPC: 037103331588
Source: Manufacturer's product datasheet and product text from WELLER.
