This Fluke oscilloscope
The Fluke ScopeMeter 190-062-III Test Tool (Part# 5282331) is a portable, two-channel oscilloscope with a 60 MHz bandwidth. The instrument is safety-rated for CAT III 1000 V / CAT IV 600 V and is designed for field use in demanding environments. The product name ScopeMeter 190-062-III is repeated in this text for unambiguous identification.
Key features
- Two independent, isolated inputs.
- 60 MHz bandwidth (190-062 configuration).
- Connect-and-View™ automatic triggering and ScopeRecord™ function for high-resolution recording.
- Built-in 5000-count DMM (in 2-channel models like the 190-062).
- USB connectivity for data transfer and Wi-Fi capability according to manufacturer's documentation.
The standard package, as specified by the manufacturer, includes the BC190/830 AC adapter, BP290 Li-ion battery pack, TL175 test lead set, two VPS421 probes, a USB cable, and printed instructions. Refer to the manufacturer's technical data sheets for detailed features and additional model information.
Typical applications
The following applications are directly taken from the manufacturer's descriptions and describe the purposes for which the ScopeMeter 190-062-III was developed:

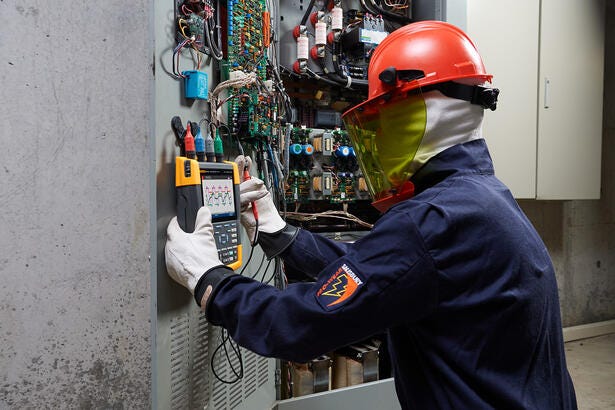

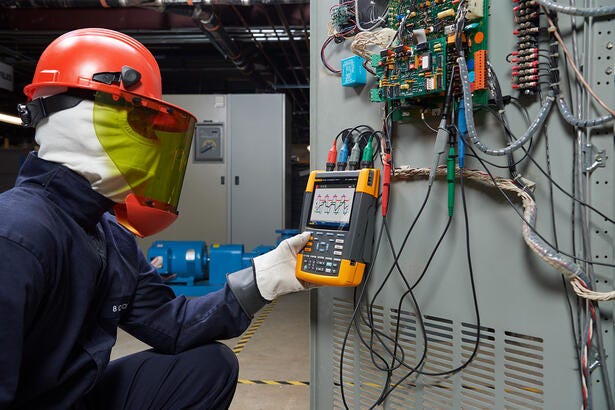

- Installation, commissioning, and maintenance of industrial machinery.
- Troubleshooting in automation and process control systems.
- Analysis and troubleshooting of power conversion electronics.
Specifications
- Model: ScopeMeter 190-062-III (Part# 5282331)
- Channels: 2
- Bandwidth: 60 MHz
- Max real-time sampling (per channel): 625 MS/s
- Record length: Up to 10,000 samples per channel in scope mode
- Rise time: 5.8 ns
- Vertical resolution: 8 bit
- Input impedance: 1 MΩ // 15 pF
- Safety rating: CAT III 1000 V / CAT IV 600 V
- Display: 133 mm x 90 mm full-color LCD
- Standard package: BC190/830 adapter, BP290 Li-ion battery pack, TL175 test leads, 2× VPS421 probes, USB cable, printed instructions
