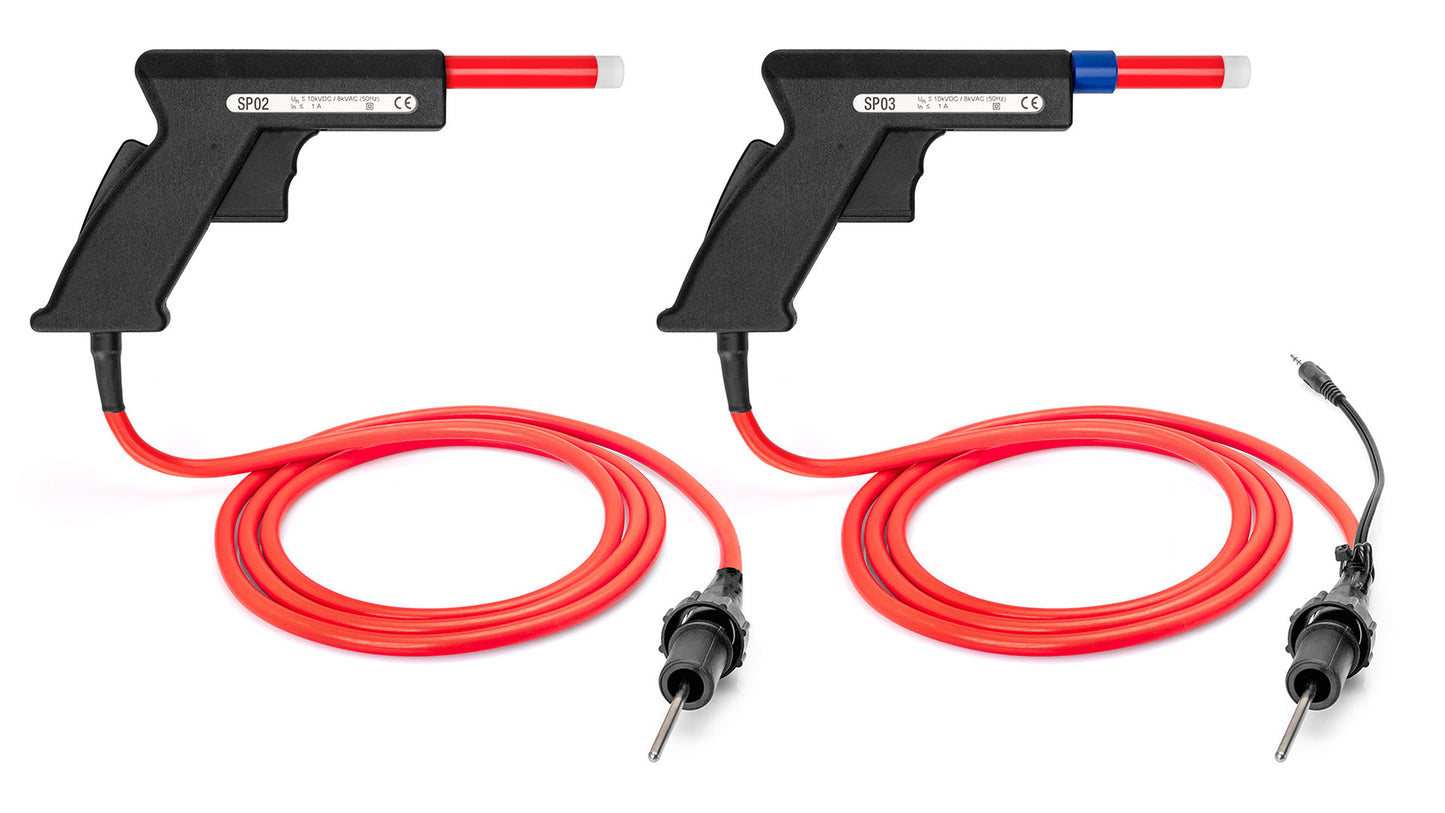

Safety tester 5.5kV/3mA HVDC 6kV 4mA

Hipot Safety Analyser: LG 1800B

This Hipot Safety Analyser from SPS-ELECTR, LG 1800B, combines high voltage test (AC and DC), ground bond test, insulation measurement, equivalent leakage current test, functional and continuity test in a single unit. The LG 1800B features an integrated 4.3" TFT colour display and supports individually configurable test programs for fully automatic test sequences.

Functionality and User Interface

• Integrated 4.3" TFT colour display and control buttons for input.
• Ability to create fully automated test programs, allowing the unit to perform multiple sequential test steps without reconnecting the DUT.
• The interface includes 2×USB, RS232, Ethernet/LAN, as well as 8 inputs and 8 outputs.
• Mains connection accepts 90–250 V at 50/60 Hz.

Documentation

For detailed technical information and complete measurement values, please refer to the manufacturer's datasheet:

See datasheet from the manufacturer

Typical Applications

The LG 1800B is used for safety testing according to national and international standards specified by the manufacturer (IEC, EN, UL, VDE etc.).

Specifications

• Product: LG 1800B (Hipot Safety Analyser) - SPS-ELECTR
• AC high voltage test: 100 V - 5,500 V
• AC current range: 0 mA - 3 mA
• AC short-circuit current: < 3 mA
• DC high voltage test: 100 V - 6,000 V
• DC current range: 0 mA - 10 mA
• DC short-circuit current: < 12 mA
• DC residual ripple: < 3 %
• Insulation measurement DC voltage range: 100 V - 6,000 V
• Insulation measurement range: 250 kΩ - 1 GΩ
• Insulation measurement residual ripple: < 3 %
• Ground bond test measurement range: 0 Ω - 0.4 Ω
• Ground bond test current AC: 10 A - 30 A
• Equivalent leakage current test measurement range: 0 mA - 10 mA
• Equivalent leakage current test voltage AC: 100 V - 270 V
• Continuity test measurement range: 0 mA - 600 mA
• Functional test current consumption AC: 4 A (optional: 1 A, 10 A or 16 A)
• Mains supply: 90 V - 250 V, 50 Hz / 60 Hz
• Interfaces: 2 x USB, RS232, Ethernet/LAN, 8 input + 8 output
• Display: 4.3" TFT colour display
• Plug selection: Type A, B, E, G, I, J, L
• Dimensions (H x W x D): 233 mm x 380 mm x 450 mm (approx.)
• Weight: 13.5 kg (approx.)
