STAUBLI SILI-1V 2,5

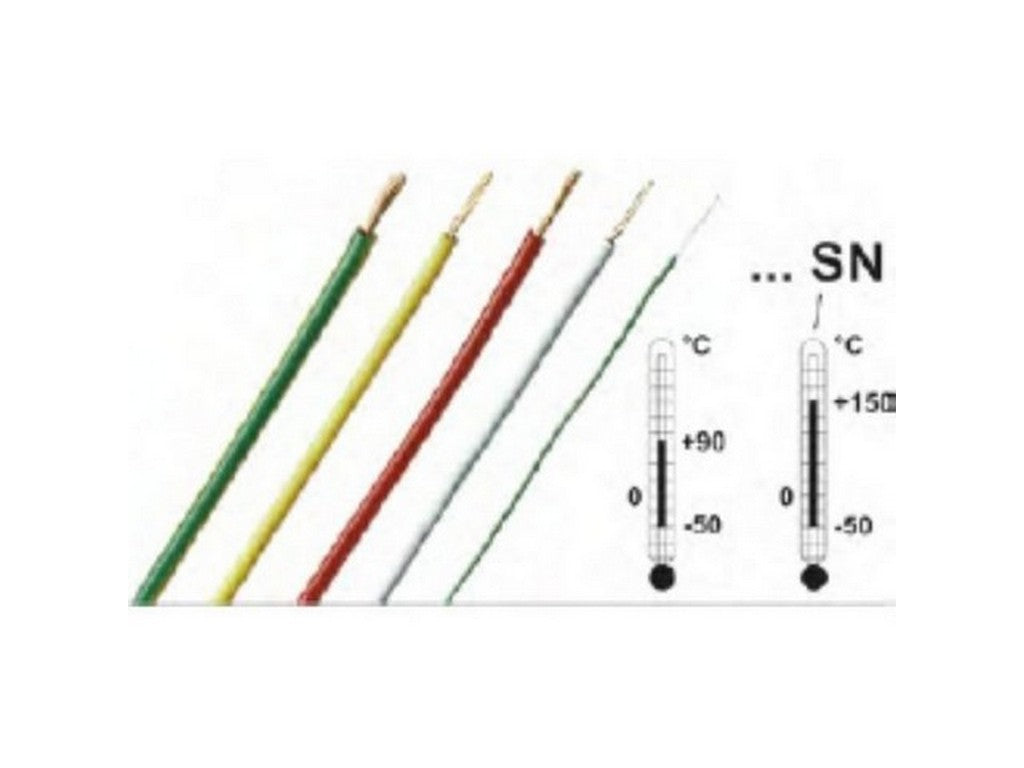

The STAUBLI SILI-1V 2,5 is a highly flexible single conductor cable with reinforced silicone insulation and a nominal conductor cross-section of 2.5 mm². It is designed for applications requiring a cable that can withstand repeated movement while maintaining stable electrical performance.
The cable is constructed with 651 fine copper strands, and this specific construction provides its high flexibility. This makes it suitable for tight spaces or installations where cables need to be routed neatly without becoming stiff. The silicone insulation contributes to its broad temperature tolerance, making the cable suitable for environments where ordinary wire insulation would quickly fail.
The electrical data specifies AC 1000 V and DC 1500 V with a rated current of 32 A. Concurrently, the temperature range is from -50 °C to +90 °C. This information is relevant when selecting the cable for professional electrical work, test setups, or other installations where voltage, current, and environmental factors play a role.
The STAUBLI SILI-1V 2,5 comes with UR, CE, UKCA, and EAC approvals. This makes it easy to integrate into solutions where documentation and compliance are important for daily operations.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7610-10023
- Type: SILI-1V 2,5
- Conductor cross-section: 2.5 mm²
- Conductor construction: 651 x 0.07 mm
- Conductor diameter: 2.3 mm
- Outer cable diameter: 4.6 mm
- Insulation material: silicone (SIL)
- Insulation thickness: 1.15 mm
- Rated voltage: AC 1000 V / DC 1500 V
- Rated current: 32 A
- Temperature range: -50 °C to +90 °C
- Approvals: UR, CE, UKCA, EAC
Content generated with the help of AI - subject to errors.
Contact HIN for further product information.
