Product Description

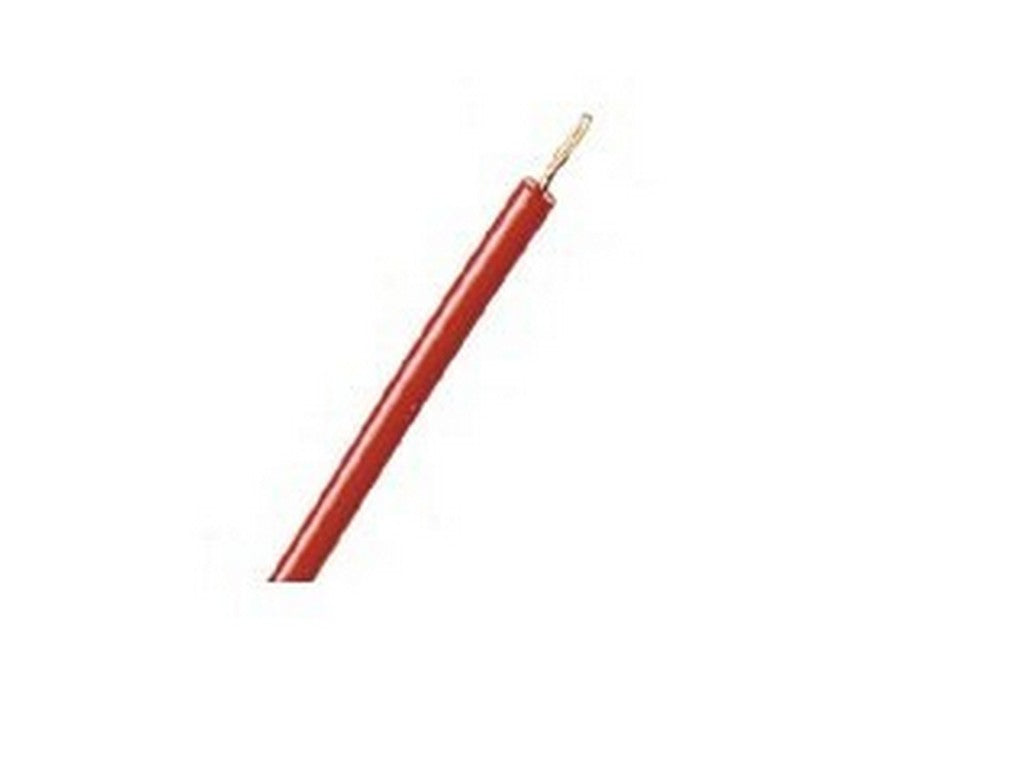

SILI-HV 6.0 is a highly flexible, reinforced insulated litz wire from STAUBLI with a conductor cross-section of 6.0 mm². The product is specified for high voltage use with a rated voltage of AC 20000 V and a rated current of 54 A. The insulation material is silicone (SIL), and the manufacturer states the silicone insulation as halogen-free. SILI-HV 6.0 is constructed as a super-flexible multi-stranded conductor intended for applications where flexibility and insulation quality are essential.Construction and Material
- Conductor: braided copper, 1548 x 0.07 mm (1548 strands à 0.07 mm)
- Conductor diameter: 3.5 mm
- Outer cable diameter: 9.0 mm
- Insulation wall thickness: 2.75 mm
- Insulation material: Silicone (SIL), stated as halogen-free
- Cable weight: 120.0 kg/km
Electrical and Environmental Data
- Rated voltage: AC 20000 V
- Rated current: 54 A
- Temperature range: -50 °C to +90 °C
Documentation
The product's technical data and construction are documented by the manufacturer. See datasheet from the manufacturer
Specifications
- Product name: SILI-HV 6.0
- Manufacturer: STAUBLI
- Article number / P/N: 61.7636-00122
- Cross-section: 6.0 mm²
- Litz construction: 1548 x 0.07 mm
- Conductor diameter: 3.5 mm
- Cable diameter: 9.0 mm
- Insulation wall thickness: 2.75 mm
- Insulation material: Silicone (SIL), stated as halogen-free
- Rated voltage: AC 20000 V
- Rated current: 54 A
- Temperature range: -50 °C … +90 °C
- Cable weight: 120.0 kg/km
Source: STAUBLI technical datasheet for SILI-HV 6.0 (article number 61.7636-*)
The content is AI-generated – we reserve the right for errors.
Contact HIN for further information about the product.
