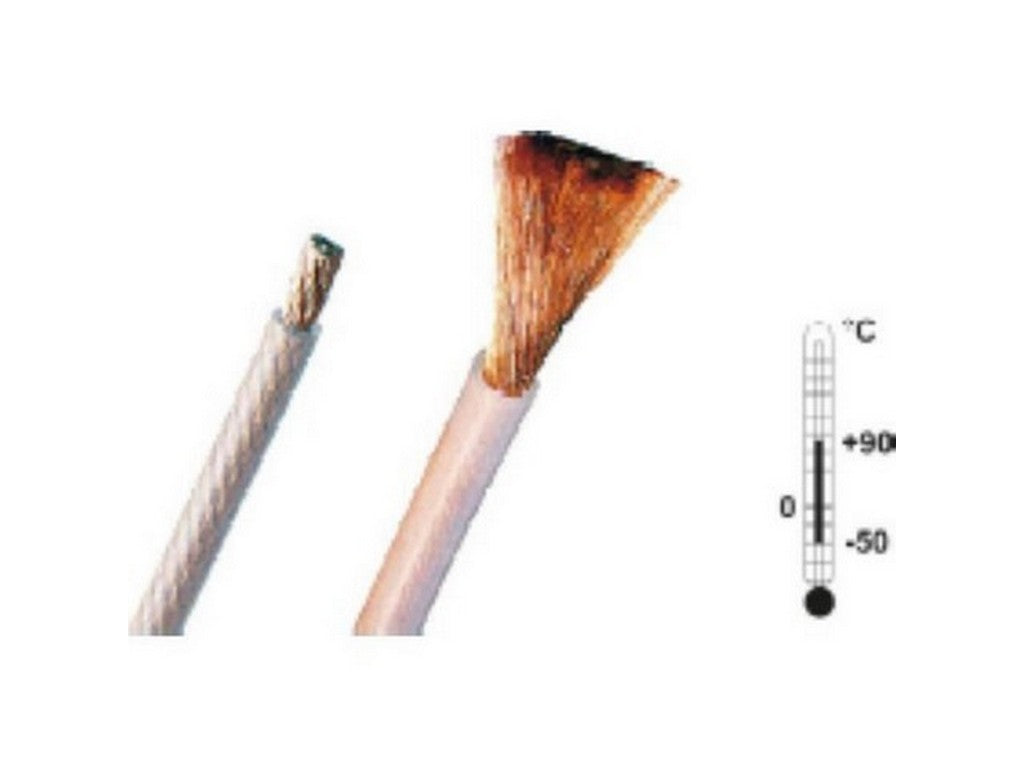

STAUBLI SILI-S 6.0
The SILI-S 6.0 is a highly flexible cable for tasks that require both mobility and electrical insulation. It has a nominal cross-section of 6.0 mm² and is constructed with reinforced silicone insulation, making it suitable for professional installations where the cable must withstand repeated bending and simultaneously function safely in a technical environment.
In practice, it is a cable chosen when good current conduction and an easy-to-work-with construction are needed. The fine conductor construction with 1548 strands results in a flexible cable, and the total diameter of 6.2 mm indicates that it is a relatively robust cable type. At the same time, the rated load is 54 A, and it is specified for AC 1000 V and DC 1500 V.
The insulation is designed for a wide temperature range from -50 °C to +90 °C, so the cable can be used in installations where the ambient conditions are not always uniform. This is an advantage in technical systems, apparatuses, and other professional contexts where there may be requirements for flexibility, voltage level, and reliable construction.
Typical applications
The cable is used where a flexible, insulated connection with higher current capacity and a robust construction is needed. Official approvals include UR, CE, UKCA, and EAC, making it relevant in various professional environments where documentation and approvals are part of component selection.
Specifications
- Manufacturer: STAUBLI
- MPN: 61.7612-10033
- Type: SILI-S 6.0
- Nominal cross-section: 6.0 mm²
- Conductor construction: 1548 x 0.07 mm
- Conductor diameter: 3.5 mm
- Total cable diameter: 6.2 mm
- Insulation thickness: 1.35 mm
- Voltage rating: AC 1000 V / DC 1500 V
- Rated current: 54 A
- Temperature range: -50 °C to +90 °C
- Insulation: reinforced silicone insulation
- Approvals: UR, CE, UKCA, EAC
