Product Overview

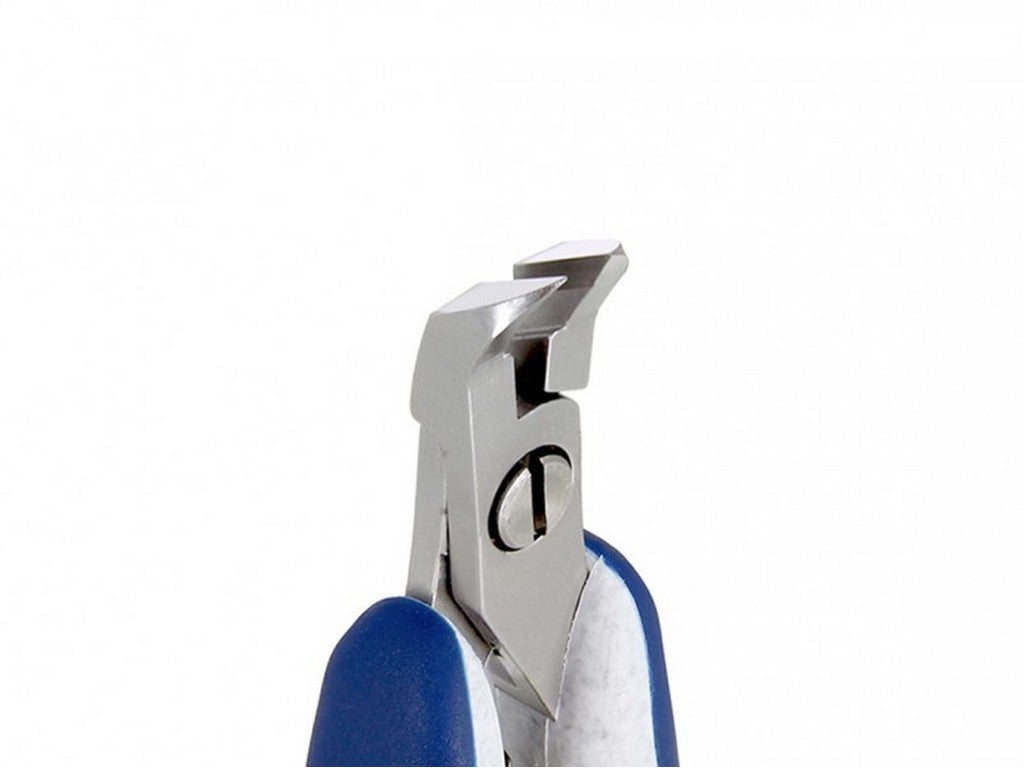

The 5250 is a high precision cutter from IDEAL-TEK with an oblique head. The tool is designed to provide ergonomic support during cutting and features a full-flush cutting edge suitable for very clean cuts on small materials. The 5250 comes with an ESD Ergo-tek slim grip handle and hardened blades (67 HRC).Design and Materials
- Head type: Small, Oblique
- Cutting edge: Full-Flush
- Blades: Hardened to 67 HRC
- Body material: High carbon-chromium low alloy steel (100Cr6)
- Surface: Sandblasted finish
- Handle: Ergo-tek Slim (Thermoplastic Elastomer + PP compound), ESD-safe
Typical Applications
- Used to make very clean cuts on small materials.
- Suitable for cutting soft wire within the specified capacity: 0.20–1.20 mm (32–17 AWG).
- Suitable for work where the tool's ESD properties are relevant, according to the manufacturer's description of the Ergo-tek slim handle.
Documentation
For manufacturer's technical details and complete dimensions: See datasheet from manufacturer
Specifications
- Manufacturer: IDEAL-TEK
- Manufacturer part number: ES5250.CR.BG.IT
- Product type: High Precision Cutters
- Made in: Italy
- OAL (A): 125.0 mm
- Width: 60.0 mm
- Height: 18.0 mm
- Head width (C): 10.0 mm
- Head thickness (D): 6.4 mm
- B: 14.5 mm
- G: 11.0 mm
- Cutting capacity (soft wire): 0.20–1.20 mm (32–17 AWG)
- Body material: 100Cr6 (high carbon-chromium low alloy steel)
- Body finishing: Sandblasted
- Handle material: Ergo-tek Slim - Thermoplastic Elastomer + PP compound (ESD-safe)
- Blade hardness: 67 HRC
Content generated using AI – subject to errors.
Contact HIN for further information about the product.
