Product Overview

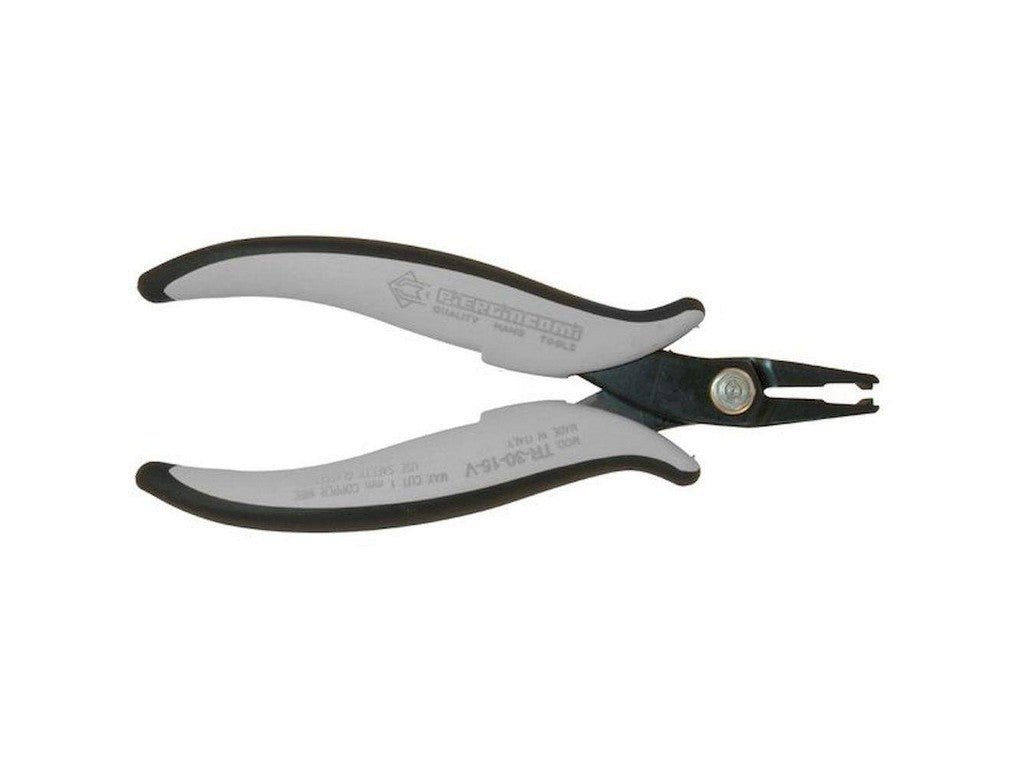

The TR 30 15 V is a 60° angled end cutter from PIERGIACOM. The tool is specified for the precise trimming of component leads and is described on the manufacturer's website as an end cutter with a 60° angled tip.Design and Function
The TR 30 15 V is constructed with a 60° angled, oblique tip and a steel thickness of 3 mm. The total length is 144 mm, and the grip model is designated as "St". The cutting force is specified at 3 kg, and the tool is classified for cutting copper wire up to Ø 1.02 mm (18 AWG).- 60° angled oblique end cutter
- Steel thickness: 3 mm
- Length: 144 mm
- Cutting force: 3 kg
- Copper wire capacity: Ø 1.02 mm (18 AWG)
Typical Applications
The tool's manufacturer description clearly states that the TR 30 15 V is specifically designed to trim component leads to 1.5 mm from the surface. This specific function is directly indicated by the manufacturer and describes the intended use.Notes on Variants
The manufacturer provides an ESD order designation for the ESD-safe version: TR 30 15 V D. It is also mentioned that the tool is available with ESD-safe handles in grey/black under the stated code.Specifications
- Product name: TR 30 15 V
- Manufacturer: PIERGIACOM
- ESD order designation: TR 30 15 V D
- Tip: 60° angled, oblique end cutter
- Length: 144 mm
- Steel thickness: 3 mm
- Designed cutting depth: trims component leads to 1.5 mm from the surface
- Cutting force: 3 kg
- Copper wire capacity: Ø 1.02 mm (18 AWG)
- Grip model: St
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
