Product Overview

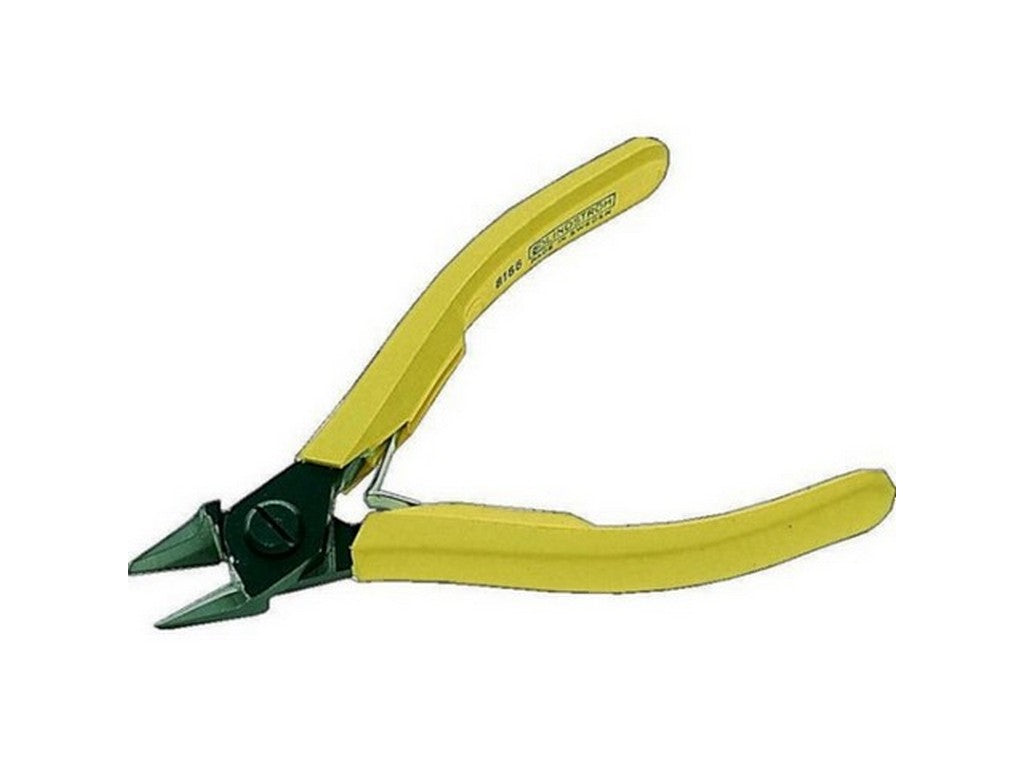

This Micro-Bevel® Precision Cut Diagonal Cutter, model number 8156 from LINDSTRÖM, is a handheld cutting tool designed for precision cutting of leads. The product is part of Lindström's 80 series and is described as a Micro-Bevel® tool with a tapered and relieved cutting head.Features
- Tapered and relieved cutting head for precise access to small areas.
- Cutting capacity for copper wire: 0.3–1.25 mm.
- ESD-safe mono-material handle with return spring.
- Precision screw joint for maximum adjustment of cutting edge alignment.
- Cutting edges are induction hardened to 63–65 HRC.
- Made from high-performance alloy steel with a burnished finish.
- Overall length: 112.5 mm. Weight: 49 g.
Design and Mechanics
The manufacturer's text indicates that the tool has a precision screw joint that maximizes the alignment between the cutting edges, as well as a return spring in the handle. The handles are made of a single material with ESD protection (mono-material ESD-safe). The cutting edges are induction hardened to 63–65 HRC, and the tool has a burnished surface finish. Product information from the manufacturerSpecifications
- Product name: Micro-Bevel® Precision Cut Diagonal Cutter model 8156.
- Manufacturer: LINDSTRÖM. (Manufacturer part number: 8156)
- Series: 80 series.
- Cutting head: tapered & relieved.
- Cutting capacity (copper wire): 0.3–1.25 mm.
- Handle: ESD-safe mono-material with return spring.
- Screw joint: precision screw joint.
- Cutting edge hardness: induction hardened 63–65 HRC.
- Material: high-performance alloy steel, burnished finish.
- Overall length: 112.5 mm.
- Weight: 49 g.
