Product Overview

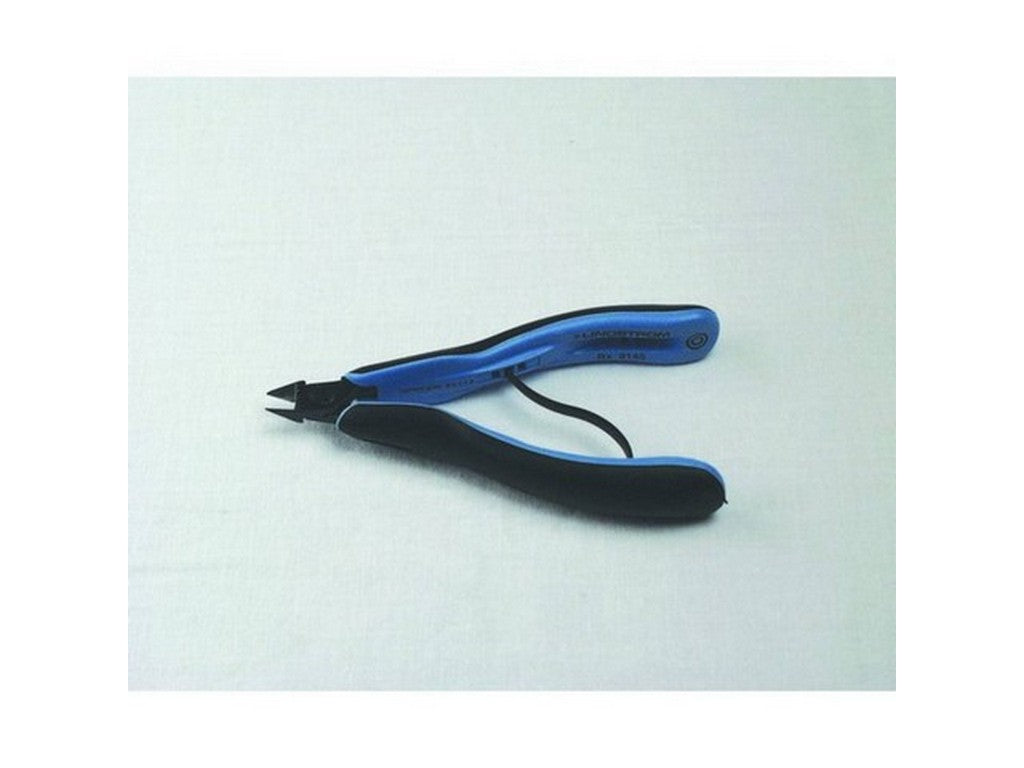

This precision diagonal cutter, Ergo™ Ultra-Flush® Precision Cut Diagonal Cutter with Tapered Head 0.1-1 mm (RX 8145) from LINDSTRÖM, is designed for Ultra-Flush® precision cuts with a stated cutting capacity of 0.1–1.0 mm. The product's identity and main technical parameters have been verified via the manufacturer's product page.Design and Materials
- Overall length: 135.5 mm (5.25 in).
- Cutting quality: Ultra-Flush® precision cut with tapered head.
- Tool material: High performance alloy steel.
- Cutting edges: Precision induction hardened cutting edges, specified to 63–65 HRC.
- Handle: ESD-safe two-component Ergo™ handle.
- Joint: Precision screw joint for reduced friction and maintained cutting edge alignment.
- Spring system: Adjustable Biospring® with three adjustment positions for reduced resistance throughout the work cycle.
Functionality
The description on the manufacturer's product page states that the RX 8145 has an Ultra-Flush® cutting function and a cutting capacity of 0.1–1.0 mm. The precision induction hardened cutting edges (63–65 HRC) and the precisely set screw joint are mentioned as key elements for maintaining cutting edge alignment and operational characteristics.Specifications
- Product name: Ergo™ Ultra-Flush® Precision Cut Diagonal Cutter with Tapered Head 0.1-1 mm (RX 8145).
- Manufacturer: LINDSTRÖM.
- Manufacturer no.: RX 8145.
- Overall length: 135.5 mm (5.25 in).
- Cutting capacity: 0.1–1.0 mm (Ultra-Flush® cutting type).
- Material: High performance alloy steel.
- Cutting edges: Induction hardened, 63–65 HRC.
- Handle: ESD-safe two-component Ergo™ handle.
- Composition: Precision screw joint; adjustable Biospring® in three positions.
