Product Overview

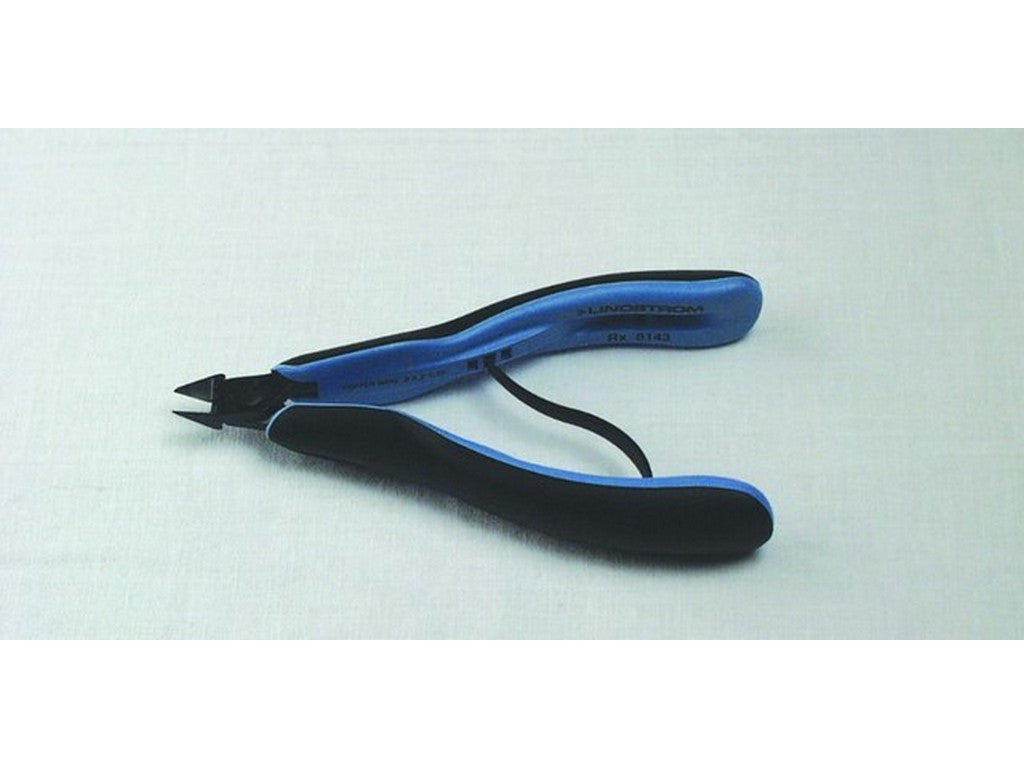

This tool is a precision diagonal cutter: Lindström RX-8143 ERGO™ Micro-Bevel® with a tapered head. The description and manufacturer data indicate the tool's primary function as precise shortening/cutting of conductors with a specified cutting capacity of 0.2–1.25 mm (specified for solid copper wire).
Design and materials
- Cutting blades in high-performance alloy steel.
- Blades are precision induction hardened to 63–65 HRC.
- ESD-safe handles in two-component synthetic material.
- Precision screw joint for minimized friction and optimal adjustment of cutting blades.
- Adjustable Biospring® with three positions for reduced tension through working movements.
Documentation
The manufacturer offers a product data sheet with the specified properties; see the manufacturer's data sheet for details:
See data sheet from the manufacturer
Typical applications
The manufacturer describes the tool as "ideal for assembly work where accessibility is a consideration". Based on this, the verified, concrete application is:
- Use in assembly work where access conditions require a tapered head for precise cutting.
Functionality
The Lindström RX-8143 is designed with a focus on precision and handling: tapered head for access in confined areas, Micro-Bevel® cutting edge for controlled cutting, and ESD-safe handles as specified by the manufacturer. The product description also highlights low weight as a specific value.
Specifications
- Product: RX-8143 (ERGO™ Micro-Bevel® Precision Cut Diagonal Cutter with Tapered Head)
- Cutting capacity: 0.2–1.25 mm (specified for solid copper wire)
- Blade material: High-performance alloy steel
- Blade hardness: Precision induction hardened 63–65 HRC
- Handles: ESD-safe two-component synthetic handles
- Features: Precision screw joint; adjustable Biospring® (3 positions)
- Overall length: 135.5 mm (5.25 in)
- Weight: 68 g
- Additional: Micro-Bevel®; specified as dissipative by the manufacturer
- Source: Lindström product information and manufacturer's data sheet
