High Precision Cutters from IDEAL-TEK

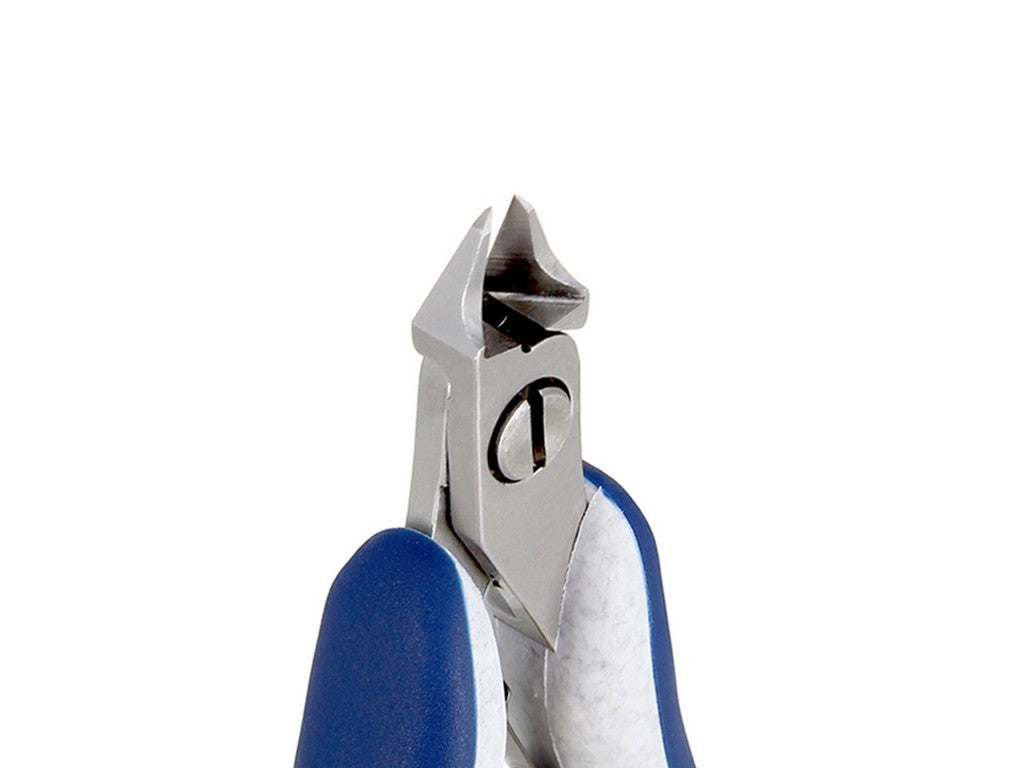

The ES5542.CR.BG is a high-precision cutter from IDEAL-TEK with a small, tapered, and relieved head geometry and a full-flush cutting edge. The product comes with Ergo-tek Slim grips and is specified as ESD-safe. The description below is based on the manufacturer's official product sheet.
Design and materials
- Blade material: High carbon-chromium low alloy steel (100Cr6).
- Blade hardness: 67 HRC (hardened).
- Handle material: Ergo-tek Slim – Thermoplastic Elastomer + PP compound.
- Body finishing: Sandblasted.
- Country of production: Italy.
Typical applications
The description in the manufacturer's data sheet specifies concrete applications for the ES5542.CR.BG, including:
- Access to small areas due to the small, tapered, and relieved head.
- Performing very clean cuts on small components thanks to the full-flush cutting edge.
- Use in contexts where components are sensitive to electrostatic discharge, as the handle is ESD-suitable.
Functional properties
- Tip thickness: 0.30 mm.
- Full-flush for clean cuts on small materials.
- Designed for precision and access in confined areas.
Documentation
For detailed dimensions and manufacturer's specifications, please refer to the manufacturer's data sheet.
See data sheet from manufacturerSpecifications
- Product name: ES5542.CR.BG
- Type: High Precision Cutters
- OAL (Overall length): 120.0 mm (4.724 in)
- Tip thickness (F): 0.3 mm
- Cutting capacity - soft wire: 0.10–0.80 mm (38–20 AWG)
- Cutting capacity - medium wire: 0.10–0.40 mm
- Body material: 100Cr6 (high carbon-chromium low alloy steel)
- Blade hardness: 67 HRC
- Handle material: Ergo-tek Slim - Thermoplastic Elastomer + PP compound
- Body finishing: Sandblasted
- Head description: Small, Tapered & Relieved
- Cutting edges: Full-Flush
- Dimensions: Width 60.0 mm; Height 18.0 mm
- Head dimensions: Width (C) 10.0 mm; Thickness (D) 6.4 mm; B 9.0 mm; F 0.3 mm
Source
The manufacturer's product data sheet has been used as the source for all information provided.
See data sheet from manufacturer
