Product Overview

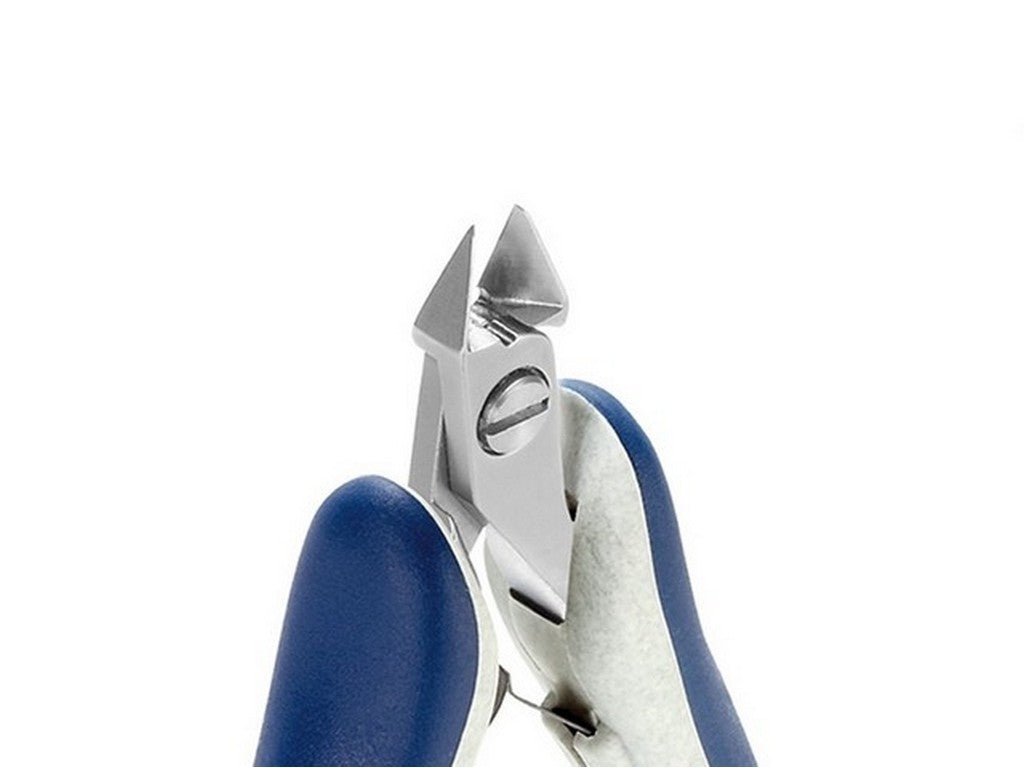

This high-precision cutter from IDEAL-TEK, ES5342.CR.BG, is a precision tool with a small tapered head geometry and full-flush cutting edge. The construction combines a hard, sandblasted steel body with an ESD-safe Ergo-tek Slim handle for precise handling when working with small components.Features and Construction
- Product Name: ES5342.CR.BG
- Product Type: High Precision Cutters
- Head: Small, Tapered
- Cutting Edge: Full-Flush
- Blade Hardness: 67 HRC
- Body Material: High carbon-chromium low alloy steel (100Cr6)
- Body Finish: Sandblasted
- Handle: ESD Ergo-tek Slim – Thermoplastic Elastomer + PP compound
Typical Applications
- Used to access small areas thanks to its small, tapered head geometry.
- Used to make very clean cuts in small materials due to the full-flush cutting edge.
- Suitable for working with components sensitive to electrostatic discharge, as the handle is ESD-safe.
Documentation
Detailed technical information and dimensions can be found in the manufacturer's data sheet: View data sheet from the manufacturer
Specifications
- Product Code: ES5342.CR.BG
- Made in: Italy
- OAL (A): 120.0 mm (4.724 in)
- Width: 60.0 mm (2.362 in)
- Height: 18.0 mm (0.709 in)
- Head Width (C): 10.0 mm (0.394 in)
- Head Thickness (D): 6.4 mm (0.252 in)
- B: 9.0 mm (0.354 in)
- F: 0.2 mm (0.008 in)
- Net Weight: 81 g
- Cutting Capacity – soft wire: 0.10–1.00 mm (38–18 AWG)
- Cutting Capacity – medium wire: 0.10–0.90 mm (38–19 AWG)
- Blades: Hardened to 67 HRC
- Body Material: 100Cr6 (high carbon-chromium low alloy steel)
- Handle Material: Thermoplastic Elastomer + PP
Sources: IDEAL-TEK product data sheet for ES5342.CR.BG.
