Product Category
Reverse angle flush cutter

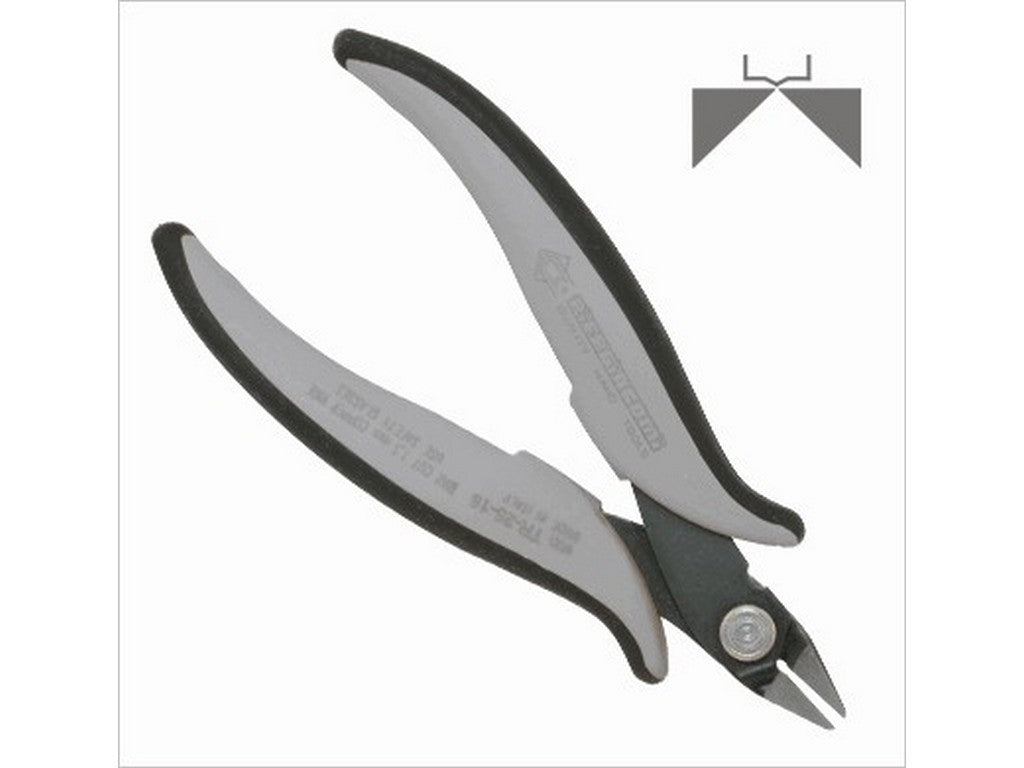

The TR 25 15 from PIERGIACOMI is a reverse angle flush cutter designed for precise cutting of terminal leads. The tool's design allows for flush cuts with a maintained distance from the surface — the manufacturer specifies a cut of 1.5 mm from the surface.
Function and Construction
The TR 25 15 performs mechanical wire cutting using a reverse-angled cutting head. The following properties are documented by the manufacturer and describe the tool's core function:
- Terminal wire is cut to 1.5 mm from the surface.
- The total length of the tool is 138 mm.
- Steel thickness in the cutting area is 2.5 mm.
- Specified cutting force is 5 kg.
- Specified maximum wire for copper is Ø 1.30 mm (16 AWG).
Typical Applications
There is an explicit manufacturer's indication that the TR 25 15 makes flush cuts of terminal leads with a residual length of 1.5 mm from the surface. This is the verified application point for the tool.
Variants
The manufacturer specifies an ESD version of the handle with order code TR 25 15 D. This order code refers to the ESD version of the tool.
Specifications
- Product name: TR 25 15.
- Manufacturer: PIERGIACOMI.
- Cutting distance from surface: 1.5 mm.
- Tool length: 138 mm.
- Steel thickness: 2.5 mm.
- Cutting force: 5 kg.
- Max. copper wire: Ø 1.30 mm (16 AWG).
- Grip model: St.
- Head size: Medium.
- ESD order code (handle): TR 25 15 D.
