Product Overview

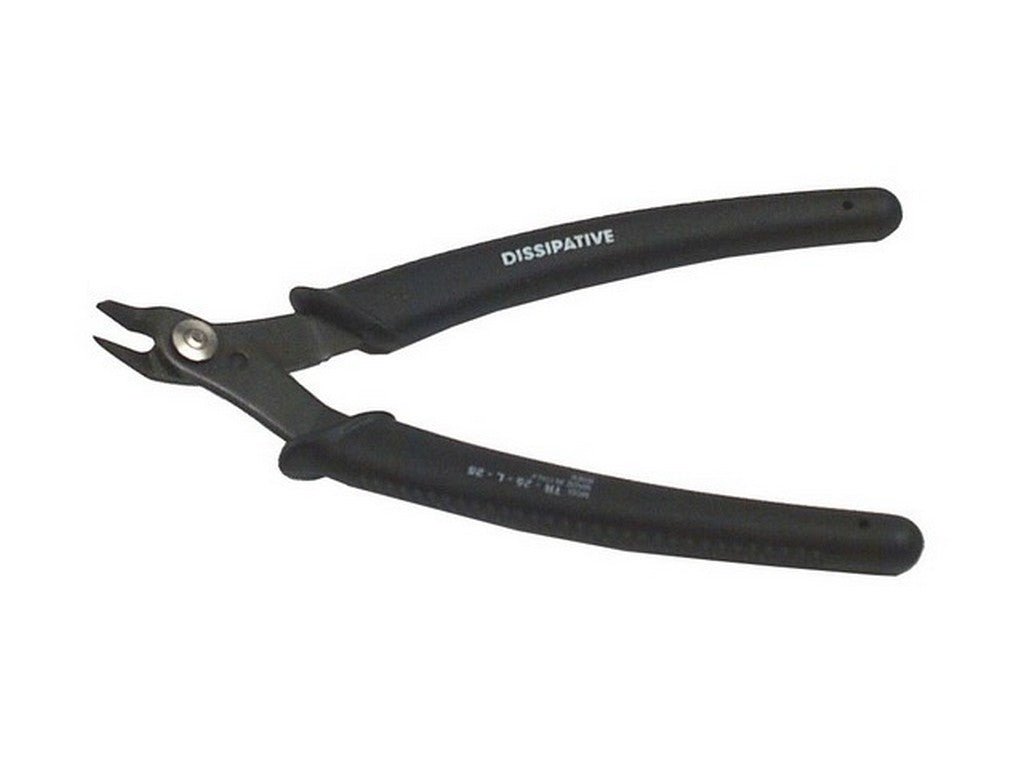

The TR 25 L 25 is a flush cutter from PIERGIACOM. It features a cutting edge angled at 25°, an L-model handle, and an overall length of 160 mm. The description below is based solely on the manufacturer's stated data.
Design and Function
The TR 25 L 25 has a cutting edge angled at 25°, which, according to the manufacturer, makes the cutting position suitable for accessing hard-to-reach areas. The tool is made of steel with a thickness of 2.5 mm. The handle model (L) and the longer total length of 160 mm are specified as designed to reduce the cutting force required during use. The nominal cutting force is 3 kg, and the tool is specified to cut copper wire with a maximum diameter of Ø 1.30 mm (16 AWG).
- Cutting edge angle: 25°
- Handle model: L
- Total length: 160 mm
- Steel thickness: 2.5 mm
- Cutting force: 3 kg
- Stated maximum copper wire: Ø 1.30 mm (16 AWG)
Typical Applications
The manufacturer states that the TR 25 L 25, with its 25° angled cutting edge, is suitable for situations requiring access to difficult-to-reach areas. The longer handle length is listed as a design choice to reduce the necessary cutting force.
Specifications
- Product Name: TR 25 L 25
- Manufacturer: PIERGIACOM
- Type: Flush cutter
- Cutting edge angle: 25°
- Total length: 160 mm
- Steel thickness: 2.5 mm
- Cutting force: 3 kg
- Max. copper wire: Ø 1.30 mm (16 AWG)
- Variants: with safety clip (code TR 25 L 25 A) and ESD-safe grey/black handles (codes TR 25 L 25 D and TR 25 L 25 A D)
