High precision cutter from IDEAL-TEK

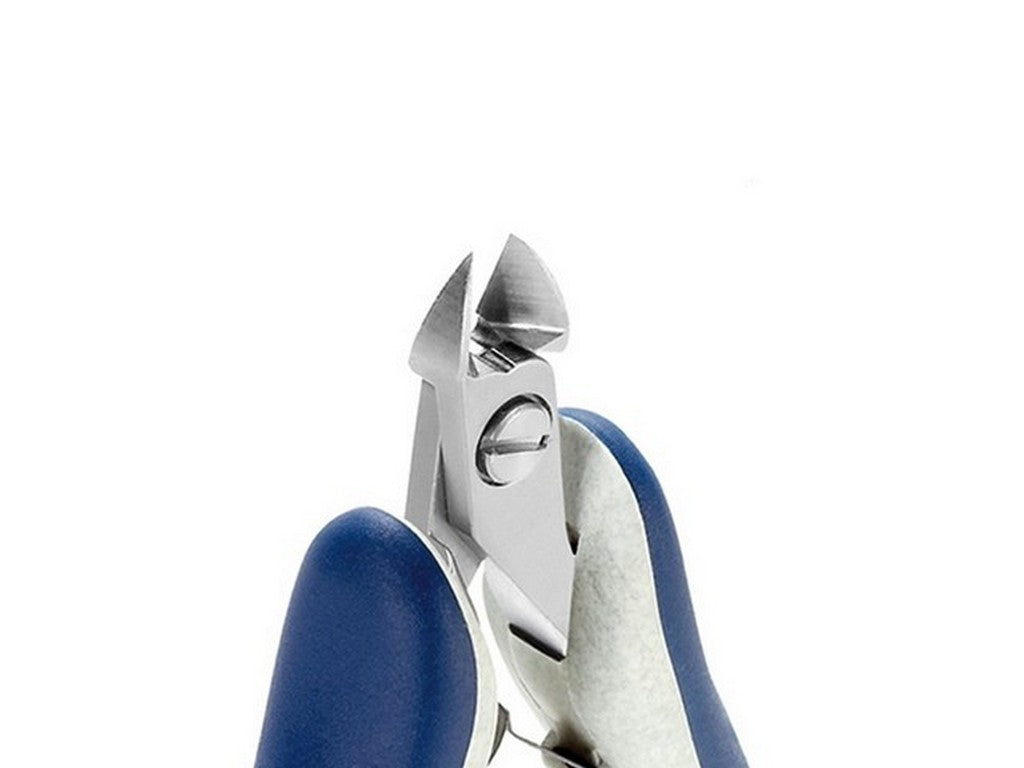

This ES5141.CR.BG is a high precision cutter from IDEAL-TEK designed for precision cutting with a small oval head geometry and flush cutting edge. The tool is ESD safe and features a sandblasted 100Cr6 body combined with an Ergo-tek Slim handle in TPE + PP.
Technical specifications
- Head: small, oval; flush cutting edge
- Blade hardness: 67 HRC
- Body material: 100Cr6 (high carbon-chromium low alloy steel), sandblasted
- Handle: Ergo-tek Slim (Thermoplastic Elastomer + PP)
- ESD safe: yes (indicated by manufacturer)
Documentation
The official product documentation includes dimensions, materials, and capacities. See manufacturer's datasheet
Typical applications
The ES5141.CR.BG is suitable for precision cutting where access to small areas is required and where flush cutting is necessary. The handle's ESD protection makes the tool suitable for working with components indicated as sensitive to electrostatic discharge in the manufacturer's documentation. The cutting capacity is specified for both soft and medium wire (see specifications).
Specifications
- Product code: ES5141.CR.BG
- Manufacturer: IDEAL-TEK
- Product type: High Precision Cutters
- Made in: Italy
- OAL (A): 120.0 mm
- Width: 60.0 mm
- Height: 18.0 mm
- Head width (C): 10.0 mm
- Head thickness (D): 6.4 mm
- B (width at blade): 9.0 mm
- F (blade gap): 0.7 mm
- Cutting capacity, soft wire: 0.10–1.20 mm (38–17 AWG)
- Cutting capacity, medium wire: 0.10–1.00 mm (38–18 AWG)
- Blade hardness: 67 HRC
- Body material: 100Cr6
- Body finish: sandblasted
- Handle material: Ergo-tek Slim (TPE + PP)
- Net weight: 82.0 g
Sources
- IDEAL-TEK product datasheet for ES5141.CR.BG
