Product Overview

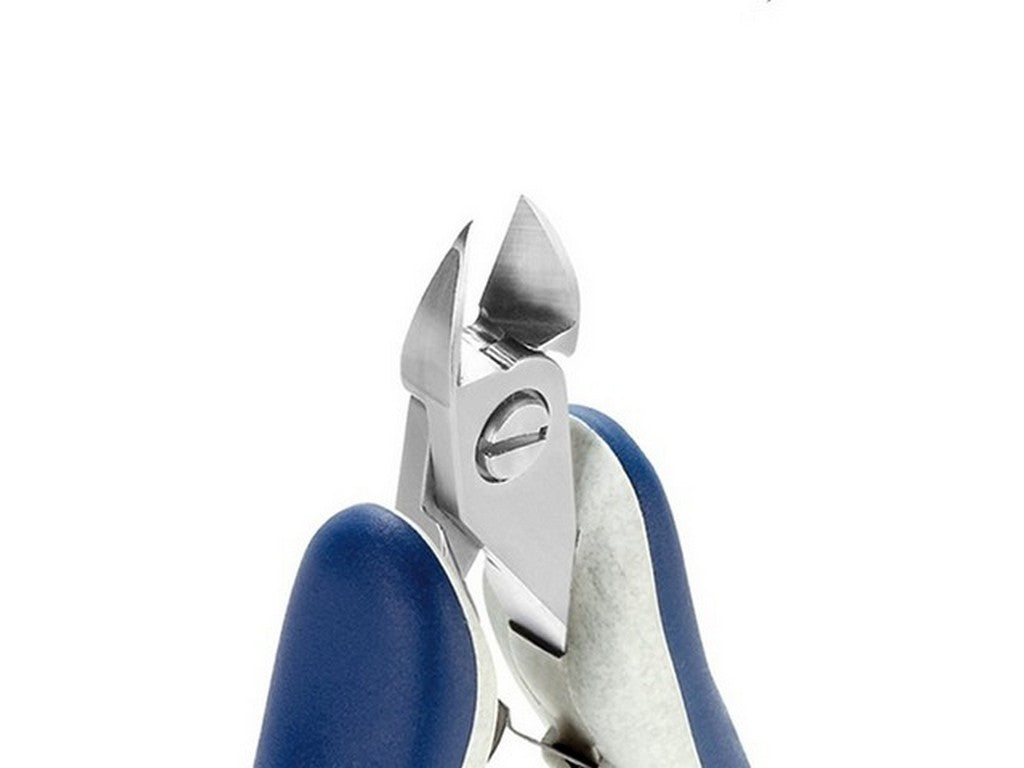

This high-precision Ergo-tek Slim cutter ES5150.CR.BG from IDEAL-TEK is a precision tool designed for controlled and robust cuts. The ES5150.CR.BG features a large oval head with a semi-flush cutting edge and an ergonomic ESD-safe Ergo-tek Slim grip.Materials and Construction
- Body: high carbon-chromium low alloy steel (100Cr6) with a sandblasted finish.
- Blades: hardened to 67 HRC.
- Handle: ESD-safe Ergo-tek Slim in thermoplastic elastomer (TPE) and polypropylene (PP).
- Head shape: large, oval head with a semi-flush cutting edge.
Typical Applications
The ES5150.CR.BG is suitable for precision cuts in accordance with the specified cutting capacities and for applications where ESD-safe tools are required. The semi-flush cutting edge is specified for performing robust cuts, and the ergonomic grip is designed to provide controlled handling during precision work.Technical Notes
- Cutting capacities are specified separately for soft, medium, and hard wires (see specifications below).
- High hardness of the blades (67 HRC) indicates wear resistance of the cutting edge as stated in the manufacturer's documentation.
Documentation
For complete dimensions and manufacturer information, please refer to the manufacturer's datasheet.
See datasheet from the manufacturer
Sources
- Manufacturer datasheet: IDEAL-TEK product code ES5150.CR.BG (see link above).
Specifications
- Product code: ES5150.CR.BG
- Product type: High Precision Cutters
- Origin: Made in Italy
- Body material: High carbon-chromium low alloy steel (100Cr6)
- Finish: Sandblasted
- Blade hardness: 67 HRC
- Handle: Ergo-tek Slim - Thermoplastic Elastomer + PP compound (ESD-safe)
- Head: Large, Oval
- Cutting edge: Semi-Flush
- Cutting capacity: soft wire 0.30–1.60 mm (29–14 AWG)
- Cutting capacity: medium wire 0.10–1.30 mm
- Cutting capacity: hard wire 0.03–0.70 mm
- Dimensions: OAL (A) 125.0 mm – 4.921 in; Width 60.0 mm; Height 18.0 mm
- Head dimensions: Width (C) 12.0 mm; Thickness (D) 6.4 mm; B 12.0 mm; F 0.3 mm
