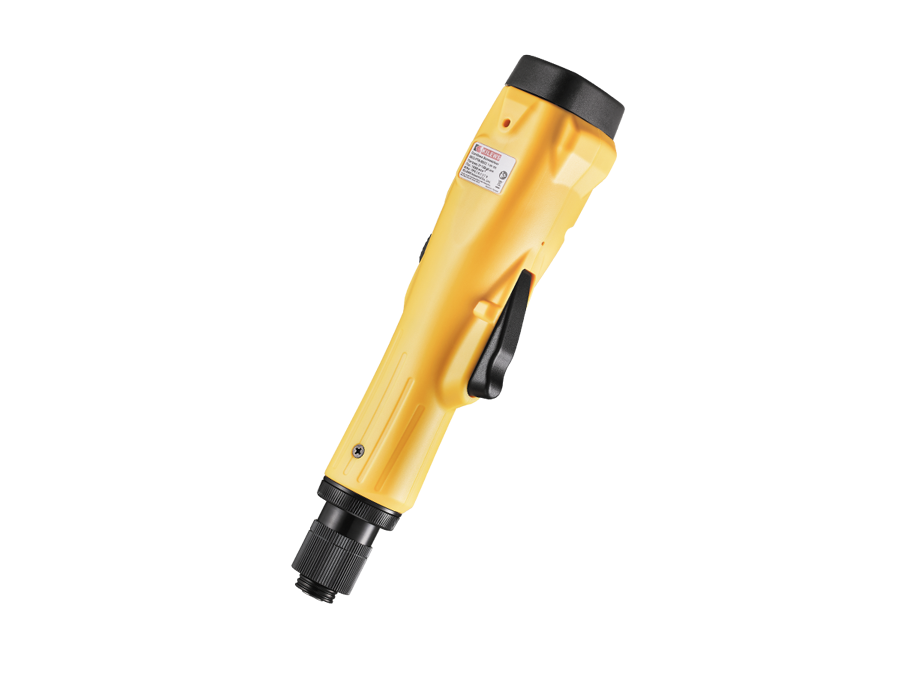

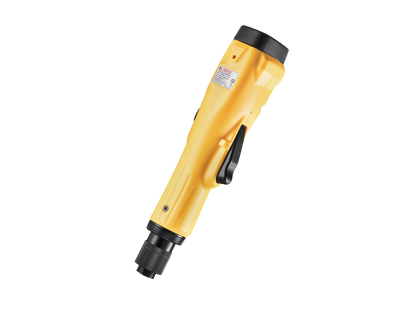

KILEWS SKC-PTA-BS12-ESD
The KILEWS SKC-PTA-BS12-ESD is a cordless, brushless torque screwdriver for professional assembly work where screws need to be tightened with controlled and repeatable force. It is designed for tasks where it is important that the screw stops at the set torque, thus avoiding unnecessary overtightening.
The screwdriver operates at 7.2 V and has two speeds: 1000 rpm in HI and 700 rpm in LO. The torque range is 0.2–1.2 N·m for hard joints and 0.2–0.96 N·m for soft joints. The repeatable torque accuracy is ±3%, making it suitable for work requiring consistent tightening.
The torque is continuously adjustable, and the tool is equipped with automatic stop when the set torque is reached. This makes it easier to work consistently in production. It uses the SKC-LB0730S battery and is charged in the SKC-P25W charger.
For tasks with small machine screws, it is specified for screw sizes from 1.6 to 3.0 mm. It comes with hex bits, and the manufacturer states compatibility with both HEX 5 mm and HEX 6.35 mm bit types.
Typical applications
The screwdriver is relevant in assembly and production environments where repetitive screwing tasks and the need for fixed torque control are present. It is particularly advantageous when the same screwing task needs to be performed many times with the same result.
Specifications
- Manufacturer: KILEWS
- MPN: SKC-PTA-BS12-ESD
- Type: Cordless, brushless torque screwdriver
- Input voltage: DC 7.2 V
- Torque range, hard joint: 0.2–1.2 N·m
- Torque range, soft joint: 0.2–0.96 N·m
- Repeatable torque accuracy: ±3 %
- Speed: 1000 rpm (HI) / 700 rpm (LO)
- Torque adjustment: Stepless
- No-load speed: 1000 / 700 min-1
- Screw size: 1.6–3.0 mm
- Weight: 530 g without battery
- Length: 225 mm without battery
- Compatible battery: SKC-LB0730S
- Compatible charger: SKC-P25W
- Compatible bit type: HEX 5 mm, HEX 6.35 mm
- Datasheet: See datasheet from the manufacturer
