Product Overview
This SKD-RBK350L is a brushless, high-torque direct current (DC) automatic shut-off clutch screwdriver in KILEWS' SKD-RBK L (power) series. The tool's primary function is torque-controlled tightening using a built-in clutch with automatic stop at the reached torque.
Technical Characteristics
- Brushless DC motor

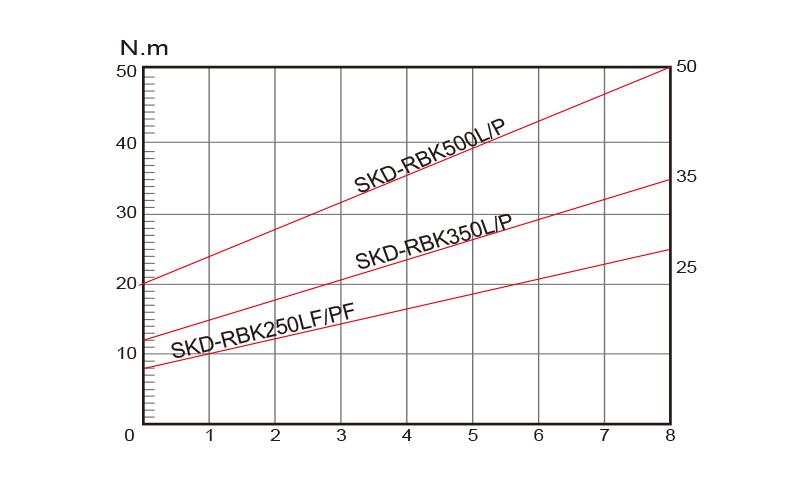

- Torque range: 12–35 N·m (hard joint) and 12–28 N·m (soft joint)
- Torque repeatability: ±5%
- Free speed: 350 r.p.m.

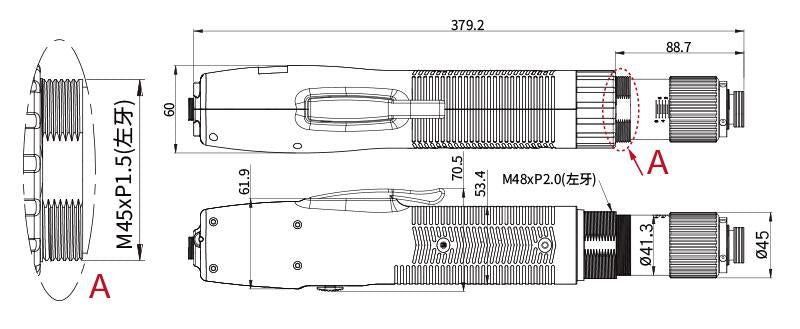

- Stated length: 380 mm
- Weight: 2.2 kg
- Recommended power controller: SKP-40B-HL-800
- Compatible bit types: B9.5, W3/8", W1/2"
Documentation

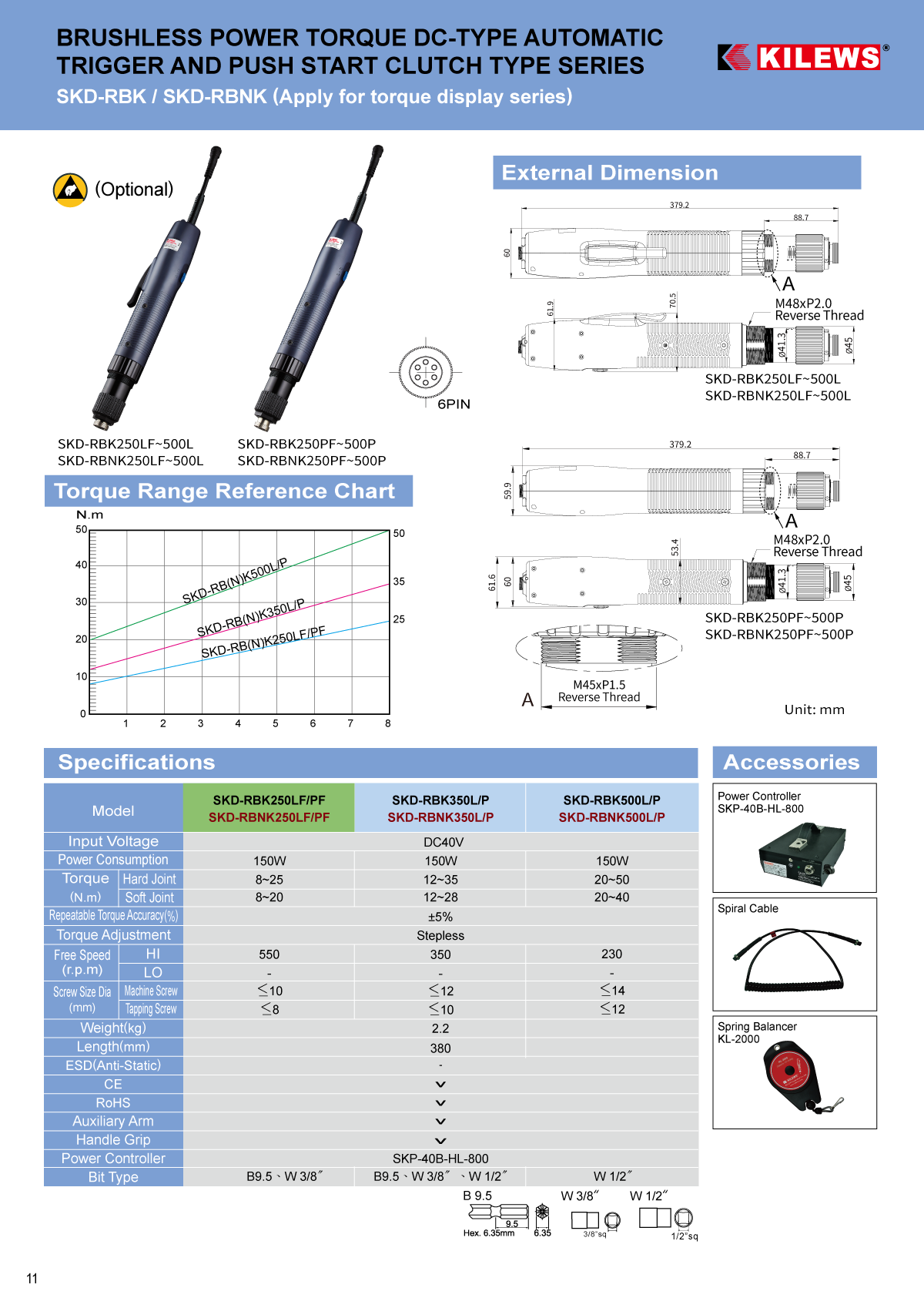

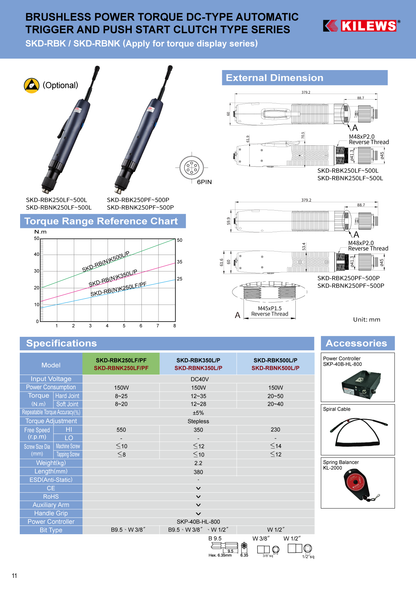

The tool's series catalog and operation/maintenance manual are available from the manufacturer. See datasheet from the manufacturer
Typical Applications
- Designed for assembly of threaded fasteners in light industrial and appliance manufacturing applications, as stated in the manufacturer's manual.
Safety and Operation
- The manufacturer's manual recommends the use of an auxiliary arm for applications exceeding 70 kgf·cm to reduce the risk of operator injury.
- The manual specifies the requirement for proper grounding of the tool during operation for safety and ESD reduction.
- Noise level and vibration data from the manual: LpA 84.8 dB(A), LwA 95.38 dB(A), vibration emission ah 6.21 m/s² (U = 1.5 m/s²).
Specifications
- Product name: SKD-RBK350L
- Manufacturer: KILEWS
- Type: Brushless, high-torque DC automatic clutch screwdriver
- Torque: 12–35 N·m (hard joint); 12–28 N·m (soft joint)
- Repeatability: ±5%
- Free speed: 350 r.p.m.
- Length: 380 mm
- Weight: 2.2 kg
- Recommended power controller: SKP-40B-HL-800
- Compatible bit types: B9.5, W3/8", W1/2"
- Noise level: LpA 84.8 dB(A); LwA 95.38 dB(A)
- Vibration: ah 6.21 m/s² (K = 1.5 m/s²)
Source: KILEWS operation and maintenance manual for the SKD-RBK series (see datasheet link above).
