Product Overview
Product category: slimBit electric bit. The Wiha slimBit electric bit, Phillips PH1 (order no. 34583) is a 75 mm insulated bit designed for accessing low-lying screws during electrical work.
What the product is

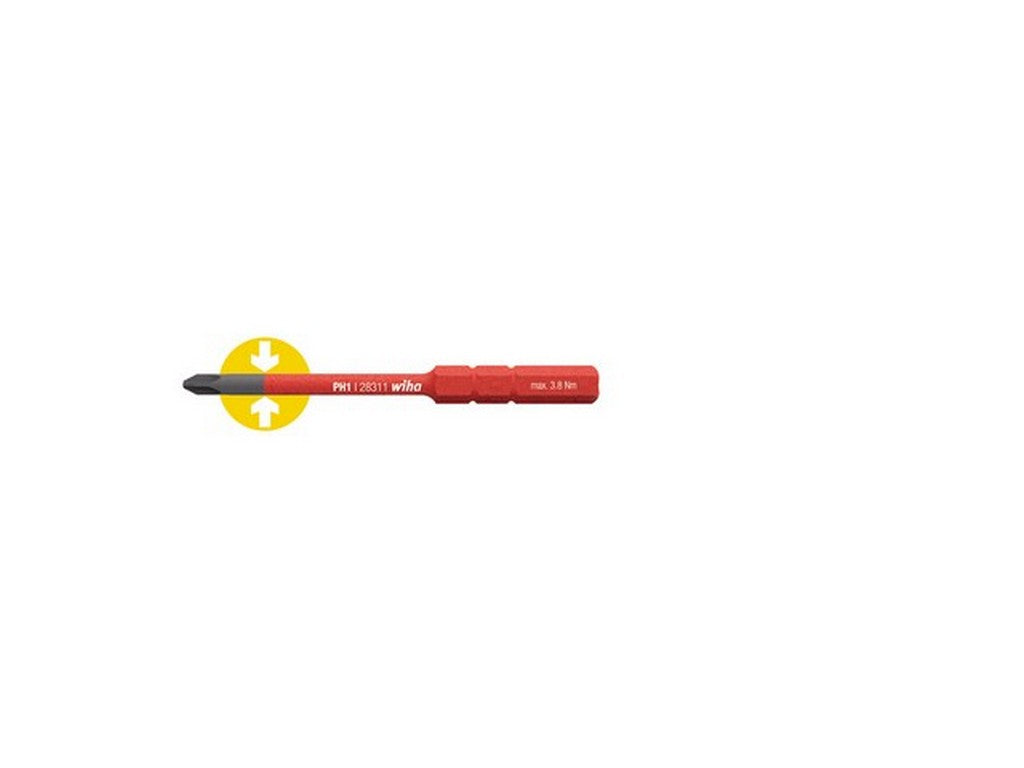

The Wiha slimBit electric bit, Phillips PH1 is an interchangeable bit with a Phillips PH1 profile and a total length of 75 mm. The blade construction incorporates Wiha slimTECHNOLOGY, where protective insulation is integrated into the blade to allow for up to 33% slimmer blade profiles compared to conventional insulated bits.
What it does and important technical information
The bit is individually tested in accordance with IEC 60900 and is specified for work on live parts up to 1,000 V AC. The verified dimensions of the product are 75 x 7 x 6 mm (L x W x D) with a maximum torque value of 3.8 Nm. The designation and testing emphasize that the bit is intended for electrical work under the specified conditions.
- Phillips size: PH1.
- Overall length: 75 mm.
- Integrated insulation: slimTECHNOLOGY (up to 33% slimmer blade profile).
- Tested in accordance with IEC 60900; classified for work up to 1,000 V AC.
Typical applications
The product is specified for work in areas with live parts up to 1,000 V AC, as indicated by the manufacturer.
Compatibility
6 mm slimBits are specified for use exclusively in the slimVario® bit holder and slimTorque VDE bit holder. This limitation is indicated by the manufacturer and must be followed for correct application.
Specifications
- Product: Wiha slimBit electric bit, Phillips PH1.
- Manufacturer: WIHA.
- Order number: 34583.
- Overall length: 75 mm.
- Product dimensions: 75 x 7 x 6 mm (L x W x D).
- Max. torque: 3.8 Nm.
- Insulation construction: Integrated slimTECHNOLOGY (up to 33% slimmer blade profile).
- Tested in accordance with IEC 60900; specified for work on live parts up to 1,000 V AC.
- Usage restriction: 6 mm slimBits may only be used in the slimVario® bit holder and slimTorque VDE bit holder.
