Product Overview
The WIHA 00697 SoftFinish is a slotted screwdriver from WIHA, part of the 302 series. The product features a round blade designed for low-lying screws and is specified as particularly suitable for dry applications. The description highlights the tool's main function and its design focus on handling and accessing low screw heads.
Design and Functionality
The WIHA 00697 SoftFinish has a multi-component SoftFinish handle construction with hard and soft zones, roll-off protection, and a screw profile symbol at the end of the handle. The shaft is round with a nominally stated diameter, which supports access to screw holes with limited clearance. The product's dimensions and weight are specified by the manufacturer.
Typical Applications
The manufacturer's description indicates two explicit application characteristics that define typical usage scenarios:
- Access to low-lying screws, where the round shaft and visible blade length provide the necessary reach.
- Use in dry environments, as the product is specified as particularly suitable for dry applications.
Specifications

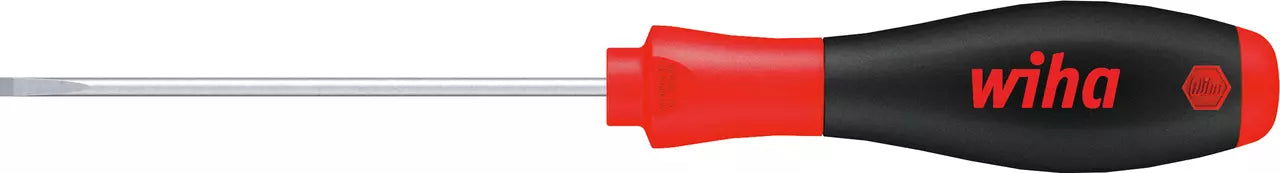

- Product: WIHA 00697 SoftFinish Slotted Screwdriver (Series 302).
- Blade (nominal) width: 4.5 mm.
- Visible blade length: 125 mm.
- Shaft round diameter: 4.5 mm.
- Blade thickness: 0.80 mm.
- Total length: 236 mm.
- Handle diameter: 30 mm.
- Weight (unit): 59 g.
- Handle design: SoftFinish multi-component with hard and soft zones, roll-off protection, and screw profile symbol at the end of the handle.
- Recommended application environment: particularly suitable for dry applications.
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
