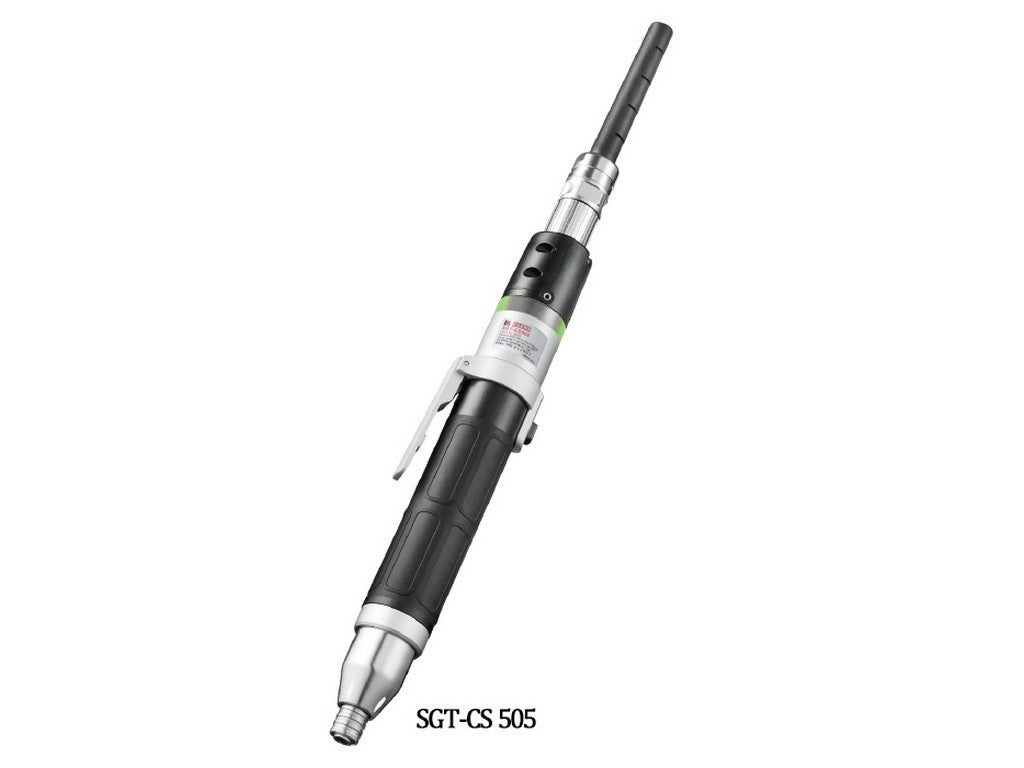

KILEWS SGT-CS507-ESD
The KILEWS SGT-CS507-ESD is a transducer-type electric inline screwdriver for controlled assembly, designed for torque-controlled work in a fixed and professional setup. It belongs to the SGT-CS 503/505/507 series and is used with the specified KL-GTCS controller.
What particularly distinguishes this model is the combination of an electric inline design and a torque measurement range, which makes it suitable when the tightening needs to be within a specific interval. The working range is stated as 0.88–7.0 N·m, and the repeatable torque accuracy is specified as +/- 3sigma / AVG., 5%. This is relevant in environments where uniform assembly is desired and the process needs to be kept under control.
The tool operates with DC40 input voltage, has a power consumption of 90 W, and a free speed of 660–60 rpm. It is also specified as weighing 900 g and measuring 307 mm in length, making it a relatively long inline model suitable for stationary workstations and tasks where a balance between reach and control is important.
The bit type is B 9.5, and the stated compatibility includes the KL-GTCS controller. This makes it easier to understand how the tool fits into a complete solution, rather than being a loose hand tool.
Typical Applications
Typically used in professional assembly where electric screws need to be tightened with controlled torque and repeatability.

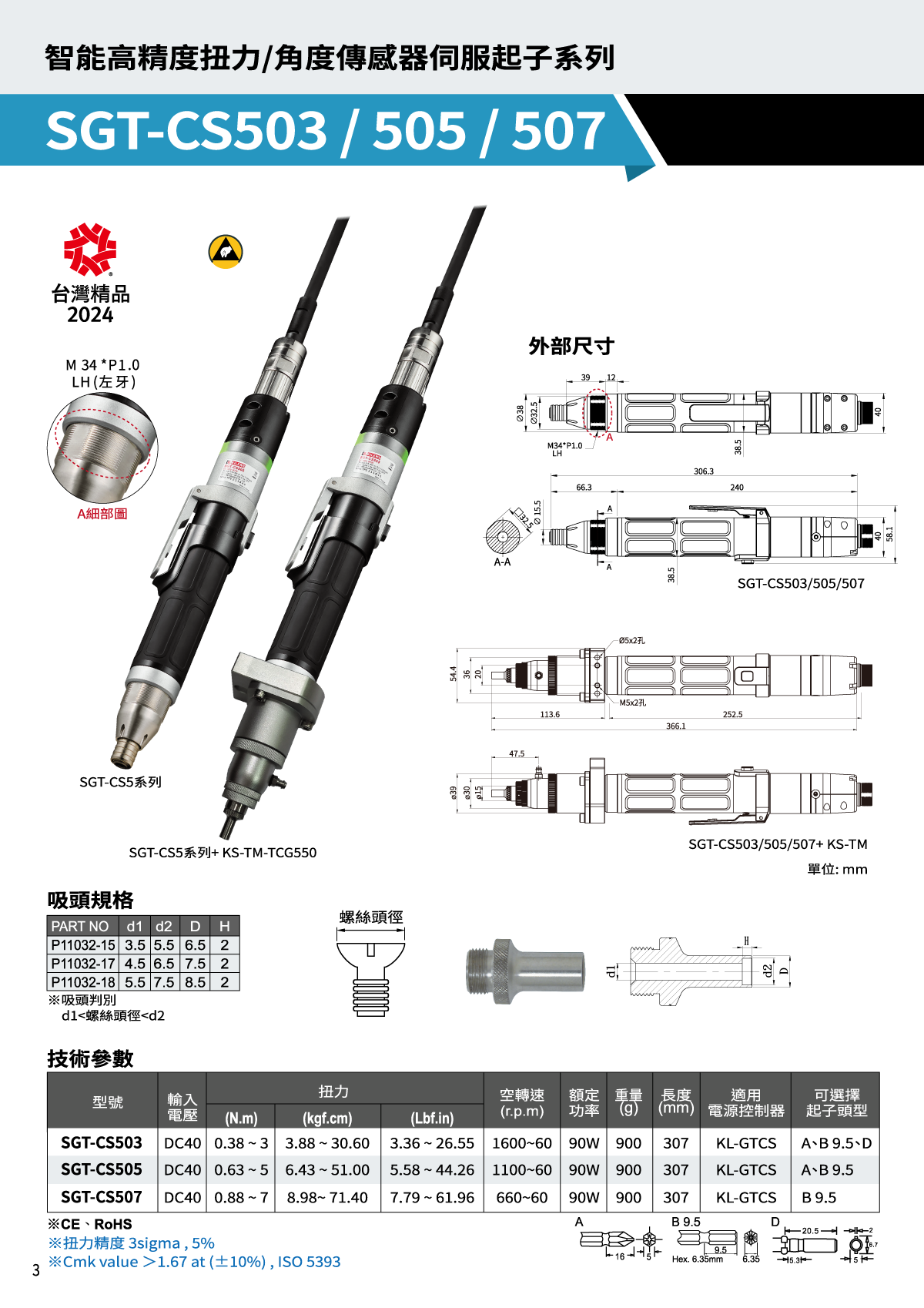

Specifications
- Manufacturer: KILEWS
- MPN: SGT-CS507-ESD
- Series: SGT-CS 503 / 505 / 507
- Type: transducer-type electric inline screwdriver
- Input voltage: DC40
- Torque range: 0.88–7.0 N·m
- Torque range: 8.98–71.40 kgf·cm
- Torque range: 7.79–61.96 lbf·in
- Repeatable torque accuracy: +/- 3sigma / AVG., 5%
- Free speed: 660–60 rpm
- Power consumption: 90 W
- Weight: 900 g
- Length: 307 mm
- Applicable controller: KL-GTCS
- Bit type: B 9.5
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
