Product Description

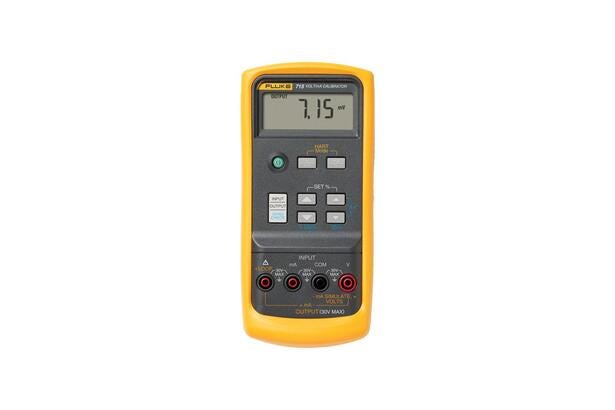

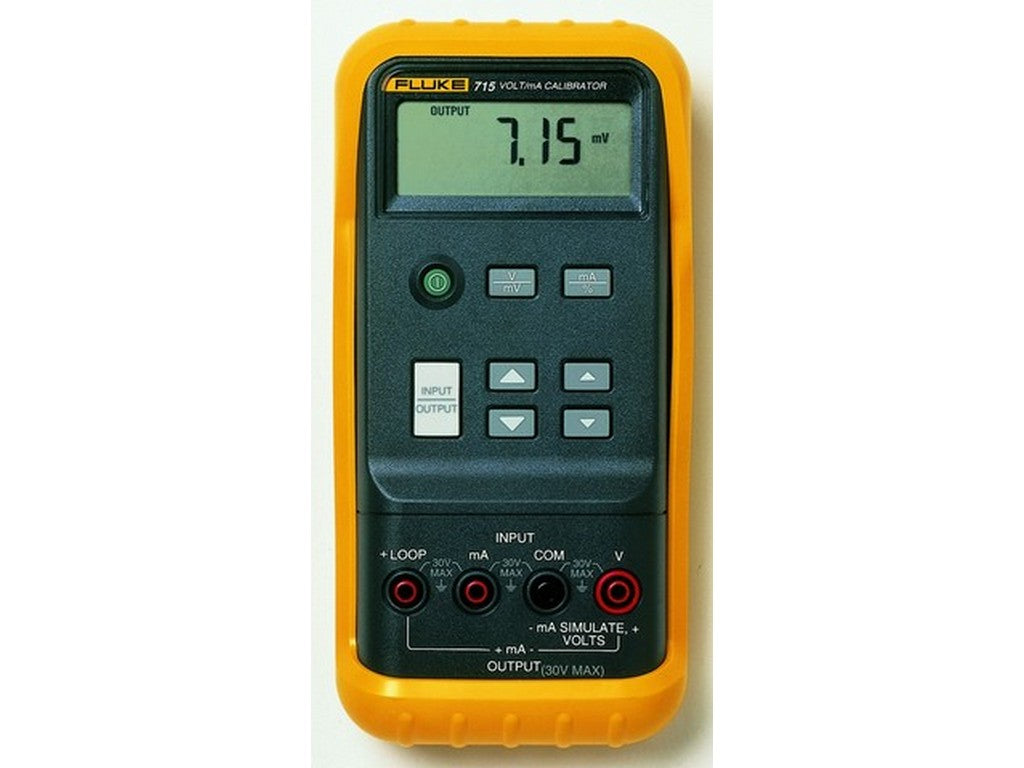

This Fluke 715 Volt/mA Loop Calibrator is a compact volt/milliamp loop calibrator from FLUKE designed for measuring, sourcing, and simulating 0–20 mA and 4–20 mA signals. The instrument comes in the robust Fluke 80 Series DMM construction and is specified for high accuracy and resolution in loop measurements.Features and Design
- Measures and sources/simulates loop currents (0–20 mA, 4–20 mA) with high accuracy.
- Voltage source up to 200 mV or 20 V and voltage measurement up to 25 V (specified in manufacturer datasheet).
- Built-in 24 V loop power supply with simultaneous current measurement.
- Includes 250 Ω HART resistor for loop current supply.
- Supports step and linear ramp output functions for testing and simulation.
- EMI-tolerant, dust and splash-proof construction.
- Powered by a single removable 9 V battery with a typical operating time of approximately 18 hours (at 12 mA load).
Documentation
Typical Applications
- Calibration, troubleshooting, and testing of process loops using 0–20 mA and 4–20 mA signals.
- Sourcing or simulating loop current for verification of transmitter and receiver functions.
- Measurement of voltage output from PLCs or transmitters and control of loop voltage with a 24 V loop power supply.
Specifications
- Product Name: Fluke 715 Volt/mA Loop Calibrator (Part#: 620101)
- Current Measurement Range: 0 mA to 24 mA; resolution 0.001 mA; accuracy 0.01 % + 2 counts (according to manufacturer datasheet)
- Current Source Range: 0 mA to 20 mA or 4 mA to 20 mA; accuracy 0.01 % Rdg + 2 counts
- Drive capability: 1000 Ω @ 24 mA
- Voltage Source: 0 mV to 200 mV or 0 V to 20 V
- Voltage Measurement: 0 mV to 200 mV / 0 V to 25 V; resolution 10 μV / 1 mV; accuracy 0.01 % Rdg + 2 counts
- 24 V loop power supply with simultaneous current measurement
- Built-in 250 Ω HART resistor
- Step and linear ramp output supported
- Battery: 9 V, removable; typical battery life approx. 18 hours at 12 mA
- Robustness: Fluke 80 Series DMM housing; EMI-tolerant; dust and splash-proof
