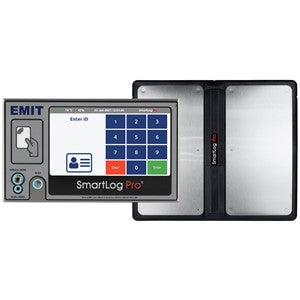

SMARTLOG PRO 2, without power cord

SMARTLOG PRO 2, without power cord

Desco

50181

In stock

View full details

You are not logged in and therefore do not see your prices.

Have an account and login
Don't have an account?Have an account

Description

This ESD test station, DESCO (EMIT) 50181 SmartLog Pro 2, verifies the functionality of an operator's wrist strap and footwear, logs test results, and can control access to an ESD Protected Area. The device features a 7" resistive touchscreen, records resistance measurements, as well as temperature and relative humidity, and comes without a power cord (power cable sold separately).

Features

  • 7" resistive touchscreen for user interaction
  • Recording of resistance measurements, temperature, and relative humidity
  • Wi-Fi support and Ethernet connectivity
  • VGA video output (native resolution 800 x 480)
  • Built-in proximity card reader (rf IDEAS WAVE ID® Plus) for operator identification
  • Internal flash memory for local logging during network interruption
  • Calibrated to NIST-traceable standards

Typical Applications

  • Wrist Strap Verification: Initiate and record wrist strap tests via the device's test function.
  • Footwear Verification: Measurement and logging of footwear readings.
  • Access Control for ESD Protected Area: Allow access via built-in proximity card reader or touchscreen keypad after passing the test.

System and Software

The SmartLog Pro® Manager Web App is used to automate the collection of ESD personnel tests and maintain log files. The app is required for all SmartLog Pro 2 installations and is installed on a server accessed via a web browser. All test transactions are synchronized to the database when network connectivity is available. View datasheet from manufacturer

Specifications

  • Model: DESCO (EMIT) 50181 SmartLog Pro 2
  • Display: 7" resistive touchscreen
  • Default test limits: Wrist strap 750 kΩ to 10 MΩ; Footwear 750 kΩ to 35 MΩ
  • Operator average test time: 2 seconds
  • Network: Wi‑Fi and Ethernet support
  • Video output: VGA (native 800 x 480)
  • Built-in proximity card reader: rf IDEAS WAVE ID® Plus
  • Internal memory: Flash for local logging in case of network failure
  • Calibration: NIST-traceable calibration
  • Supplied without power cord (power cord sold separately)

Sources

View datasheet from manufacturer

Content generated using AI – we reserve the right to make errors.
Contact HIN for further product information.
