Fluke VPS410-II-R ScopeMeter voltage probe set
The Fluke VPS410-II-R is a probe set for measuring voltages with a compatible ScopeMeter or motor drive analyzer. It is not a standalone measuring instrument, but a measurement probe used in front of an oscilloscope when accessing signals in industrial systems and electronics.
The probe attenuates the signal 10:1, providing the measuring instrument with a more manageable signal to work with. This is practical for voltage measurements where you want to see the waveform without unnecessarily loading the circuit. The specified bandwidth of 500 MHz indicates that the set is designed for fast signals where changes can be followed in detail.
The set is double-insulated and rated for CAT III 1000 V and CAT IV 600 V. In practice, this means it is intended for demanding electrical measurements where safety and correct probe construction are important. Therefore, a probe like this is typically chosen when measuring with a Fluke 190 Series III or Series II, or with the MDA-500 series.

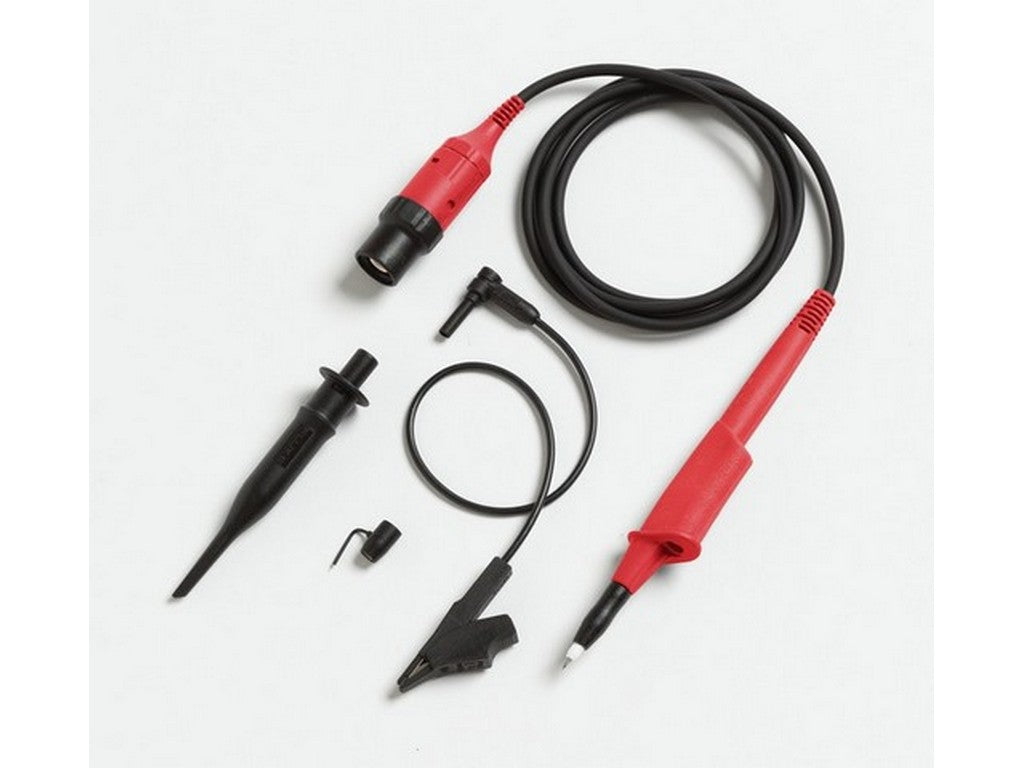

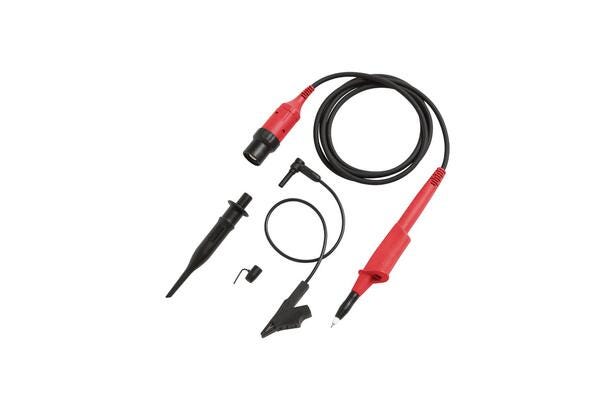

The box includes a red voltage probe, a black hook clip for the probe tip, a black ground lead with mini alligator clip, a ground spring for the probe tip, and an isolation sleeve. This makes it ready for general use in test setups where you need to securely and practically attach to a point in the circuit.
If you already have the right Fluke instrument, this is the type of accessory that makes measurement possible and more manageable. If the instrument is a different model, you should check compatibility first.
Specifications
- MPN: 4276928
- Color: red
- 10:1 attenuation
- 500 MHz bandwidth
- Double insulated
- CAT III 1000 V / CAT IV 600 V
- Compatible with Fluke 190 Series III and Series II portable oscilloscopes
- Compatible with Fluke MDA-500 series motor drive analyzers
- Supplied with red voltage probe, black hook clip, black ground lead with mini alligator clip, ground spring and isolation sleeve
