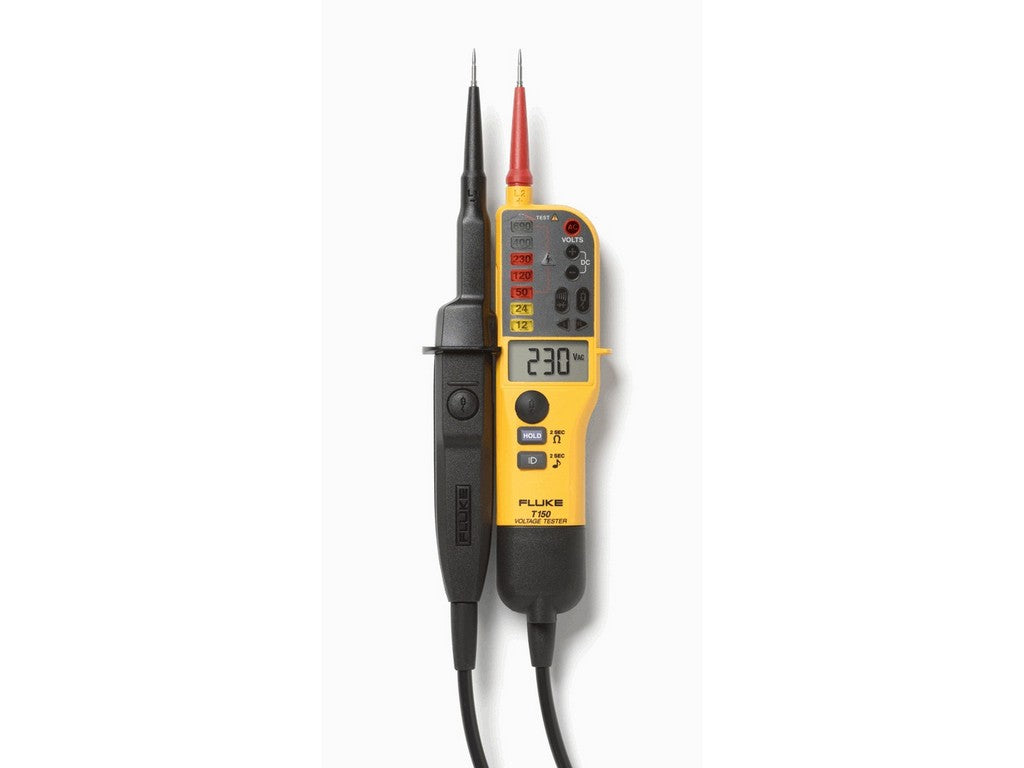

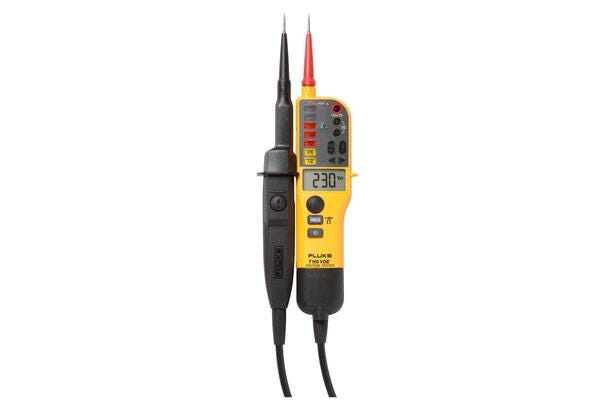

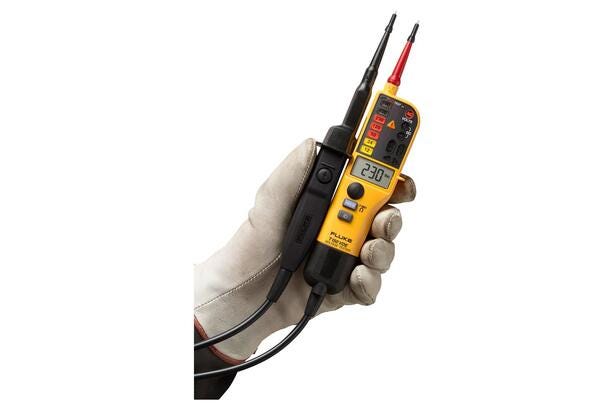

Fluke T150 voltage and continuity tester
The Fluke T150 is a two-pole tester for working with voltage and continuity in electrical installations. It is used to quickly check for the presence of voltage, and to check for continuity in a wire, switch, relay, bulb, or fuse. It is therefore a tool for daily troubleshooting and inspection, where a simple and safe way to test is needed.
The T150 offers both a clear LED display and a backlit LCD display, making it easier to read in poor light conditions. It shows AC and DC voltage from 6 V to 690 V, and can also measure resistance up to 1999 Ω. This makes it relevant when the task is not only to check for voltage, but also to check a connection or find out if something is disconnected.
During use, voltage can be displayed in several ways: with LED, on LCD, with sound, and with vibration. This is practical in the field, as you are not dependent on a single indication. In addition, it has a built-in flashlight, display hold, and a switchable load, which is used for certain voltage checks, among other things. When testing installations with a residual current device, it can be an advantage that the instrument can load the circuit in a controlled manner.

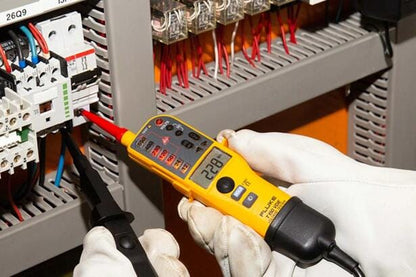

As a measuring instrument, the T150 is primarily of interest when working directly on installations where safety and quick checks are important. It is designed to confirm the absence of voltage and is rated for higher measurement categories, so it is suitable for professional electrical work in installations and panels when working within the specified limits.
You can read more here:
See datasheet from the manufacturer
Specifications
- Two-pole voltage and continuity tester
- AC and DC voltage measurement from 6 V to 690 V
- Resistance measurement up to 1999 Ω
- Backlit LCD display

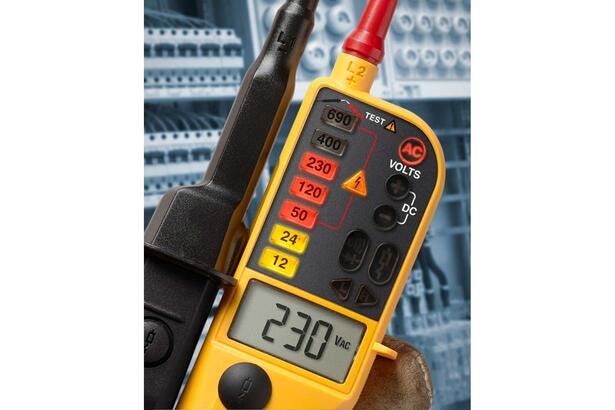

- Voltage indication with LED, LCD, sound, and vibration
- Built-in flashlight
- Display hold function
- Switchable load
- Designed to IEC EN 61243-3:2014
- CAT IV 600 V
- CAT III 690 V
